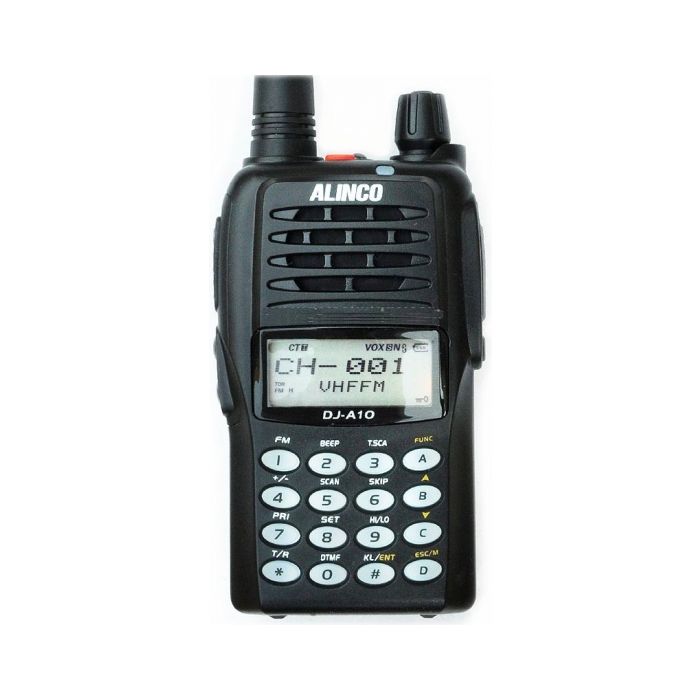

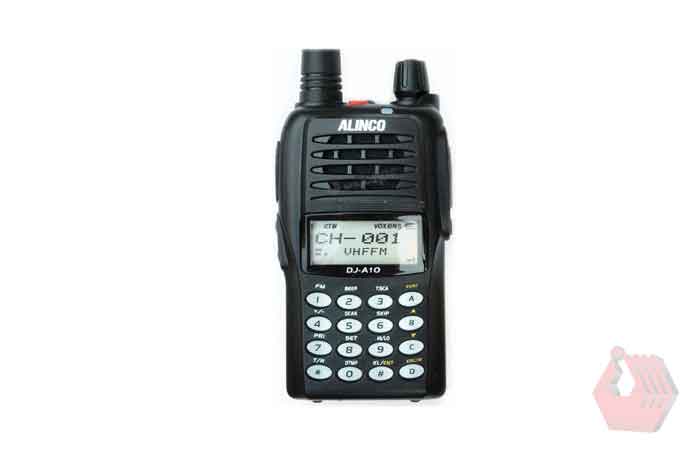

DJ-A10 Transreceiver ALINCO VHF
These VHF/UHF handheld transceivers pack a lot of performance into a MIL-spec rugged polycarbonate bodies. Designed to resist splash and dust, the DJ-A10features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Introduction
These VHF/UHF handheld transceivers pack a lot of performance into a MIL-spec rugged polycarbonate bodies. Designed to resist splash and dust, the DJ-A10 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO; keep in touch for retails, construction, factory, warehouse, in a theme-park, shoping mall, exhibition hall, hotel…where you need reliable communications for business, the DJ-A10/A40 is a cost effective alternative to a mobile/cell phone!
Features:
128 channels to program operating parameters via PC utility software
Channel, Name tag and VFO (Frequency) display modes selectable
Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna
Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weighs approx.227g or 8.01oz inclusive of battery pack and antenna
3 types of Scan functions (VFO/Memory channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones
Backlit, Dot Matrix LCD screen with alphanumeric name tag
Microphone and speaker ports
Includes FM radio receiver, Internal VOX, Voice prompt in English, Remote-Kill/Stun/Revive, Analog scrambling, Voice compander, Narrow FM,
Repeater-reverse, Auto-Power-off, Busy-Channel Lockout, Time-Out-Timer and more and more at No extra cost
Specifications
| Frequency coverage | [DJ-A10] 136-174MHz [DJ-A40] 400-470MHz |
| Mode | F3E(16K0F3E / 11K0F3E / RX only WFM) |
| Programmable channels | 128 channels |
| Frequency stability | ±2.5ppm |
| Power supply requirement | 7.4V DC±20% (negative ground) |
| Current drain (Approx.) | 1400mA TX / 300mA receive at Max audio output / 70 mA squelched |
| Usable temperature range | －20～ +55℃(-4～131°F) |
| Dimensions (Projections not included/approx.) | 59.0W×98.0H×35.0D mm or 2.32W×3.86H×1.38D inches |
| Weight | approx.227g or 8.01oz inclusive of battery pack and antenna |
Transmitter (ETSI EN300 086 compliant)
| Output power | Approx. [A10] 5 / 2 / 0.5W [A40] 4 / 2 / 0.5W |
| Modulation system | Variable reactance FM |
| Spurious emissions | Less than －36dBm |
| Max. frequency deviation | ±5kHz / ±2.5kHz |
Receiver (ETSI EN300 086 compliant)
| Receive system | Double conversion superheterodyne |
| Intermediate frequencies | [A10] 38.85MHz / [A40] 26.45MHz |
| Sensitivity(12dB SINAD Wide/Narrow) | －12dBμ or better (0.25μV/0.35μV) or better |
| Selectivity | －6dB : Wide 12kHz /Narrow 10kHz or more －60dB : Wide 30kHz / Narrow 24kHz or less |
| Audio output power | 1000mW(10% distortion) |
