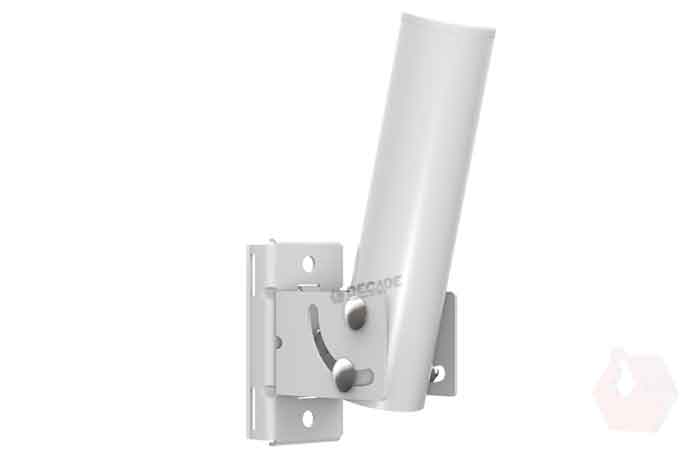

FlexiMount XL
The FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180º
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Introduction
The FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180º. Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation. Mimosa’s FlexiMounts come pre-assembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.
Features:
Weight: 0.60 kg (21.3 oz)
Mounting Base: 45mm (1.77“) x 127mm (5.0“)
Pole Length: 190mm (7.5“)
Pole Outside Diameter: 38mm (1.5“)
Articulation Angle: 180°
Mounting Options: Pole mount with two pipe clamp, or surface mount with two screw hole points
Assembly: Pre-assembled with a white powder coated finish; Mounting screws and pipe/hose clamps not included
Recommended For: C5x + N5-X25 antenna
Compatible with C5x + N5-X25 antenna
Flexible
Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation.
Ready-to-Use
Mimosa’s FlexiMounts come preassembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.
Vertical Poles
The FlexiMounts come assembled, ready for vertical pole configurations, using the indicated pipe clamp slots in the diagram above.
Angled and Flat Poles
The FlexiMounts can be mounted in any orientation on angled and flat poles. To pivot the articulation direction, rotate the mounting base to the desired orientation.
Flat Surfaces
The FlexiMounts include two (2) convenient mounting screw hole points, allowing mounting to any vertical, sloped or horizontal surface.
Specifications
| Weight | 0.60 kg (21.3 oz) |
| Mounting Base | 45 mm (1.77“) x 127 mm (5.0“) |
| Pole Length | 190 mm (7.5“) |
| Pole Outside Diameter | 38 mm (1.5“) |
| Articulation Angle | 180º |
| Mounting Options | Pole mount with two pipe clamp, or surface mount with two screw hole points |
| Assembly | Pre-assembled with a white powder coated finish; Mounting screws and pipe/hose clamps not included |
| Recommended For | C5x + N5-X25 antenna |
