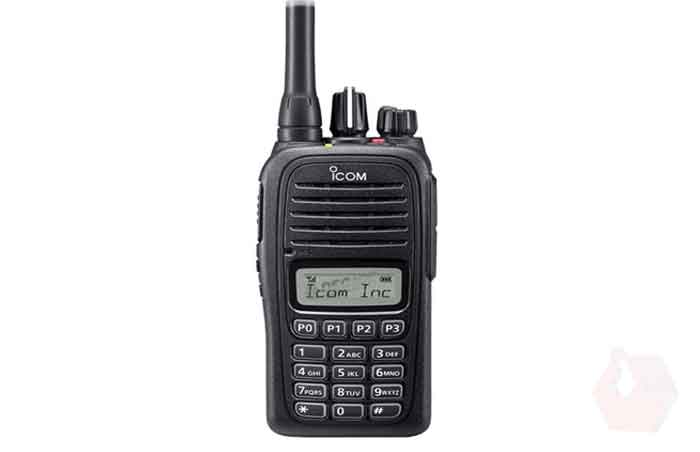

IC-F1000T Transreceiver ICOM VHF
Icom has released three different VHF radios in this series, with the IC-F1000T positioned at the top of the range. It is a capable two way radio with LCD display, and it also has a full keypad, including numerical buttons and program keys.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Introduction
Icom has released three different VHF radios in this series, with the IC-F1000T positioned at the top of the range. It is a capable two way radio with LCD display, and it also has a full keypad, including numerical buttons and program keys.
Thanks to its IP67 rating, this two way radio is completely dustproof. It resists damage from water, powdered dust, mud and even complete submersion in water, up to depths of 1 metre, and durations of 30 minutes. Its large 3.6cm speaker provides superb audio clarity, and the optional quiet mode allows it to be used in practically any location.
Features:
128 Channels for IC-F1000T
IP67 Waterproof and dust-tight protection
Enhanced Emergency with built-in motion sensor
Easy to hear in noising environment
inversion voice scrambler
14 hours of operating time with supplied waterproof battery (with BP279)
Quiet stand-by mode with built in 2-tone, 5-tone
CTCSS and DTCS Icom
MDC 1200 compatible
Channel announcement
8 DTMF autodial memories
"Shift key” function increases number of programmable key assignments
Specifications
| Frequency coverage | 136–174 MHz |
| Number of channels | 128 channels/ 8 zones |
| Type of emission | 16K0F3E*/11K0F3E (USA/EXP) 16K0F3E/14K0F3E/8K50F3E (EUR) |
| Power supply requirement | 7.5V DC nominal |
| Current drain(approx.) | Tx 1.3A Rx 500 mA /77 mA |
| Antenna impedance | 50Ω |
| Operating temperature range(Radio specification) | –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP) –25°C to +55°C (Radio specifi cation)(EUR) |
| Dimensions(W × H × D; Projections not included) | 52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279) |
| Weight (approx.) | 240 g; 8.5 oz (With BP-279) |
| Output power(Hi, L2, L1) | 5 W, 2 W, 1 W |
| Maximum frequency deviation | ± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
| Spurious emissions | 70 dB minimum (USA/EXP) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR) |
| Frequency stability | ±2.5ppm |
| Audio harmonic distortion | 1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz) (at AF 1 kHz 40% deviation) |
| FM Hum and Noise(without CCITT filter) | 46 dB typical (25 kHz), 40 dB typical (12.5 kHz)(USA/EXP) |
| Residual modulations(with CCITT filter) | 50 dB typical (25 kHz), 47 dB typical (20 kHz), 44 dB typical (12.5 kHz) (EUR) |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10)/2.2 kΩ |
Receiver
| Sensitivity | (at 12dB SINAD) 0.25μV typical |
| Adjacent channel selectivity | 76 dB typical (25 kHz), 53 dB typical (12.5 kHz) (TIA-603D) 78 dB typical (25 kHz) 71 dB typical (12.5 kHz) (TIA-603A) 76 dB typ. (25 kHz) , 72 dB typ. (20 kHz),53 dB typ. (12.5 kHz)EUR) |
| Spurious response rejection | 70dB minimum |
| Intermodulation rejection | 74 dB typical (USA/EXP) |
Hum and noise (With CCITT filter) | 51 dB typical (25 kHz),45 dB typical (12.5 kHz) (USA/EXP) |
| Hum and noise(Without CCITT filter) | 52 dB typical (25 kHz), 49 dB typical (20 kHz), 46 dB typical (12.5 kHz) (EUR) |
| AF output power(at 5% distortion) | Internal SP 1500 mW typical (With 8Ω load) External SP 400 mW typical (With 8Ω load) |
External speaker connector | 2-conductor 3.5 (d) mm (1⁄8)/8 Ω |
What is in the box?
IC-F1000T
Battery pack, BP-279
Desktop charger, BC-213
AC adapter, BC-123S
Belt clip, MB-133
Antenna
