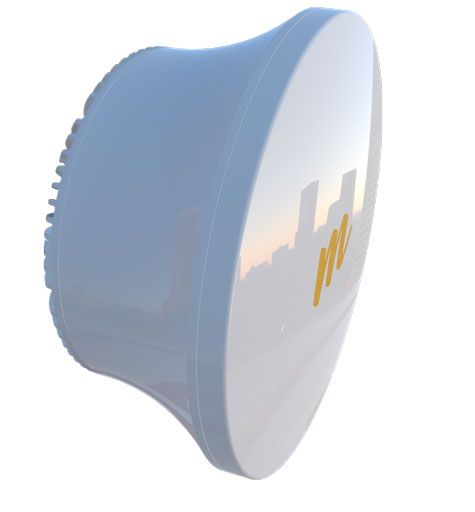

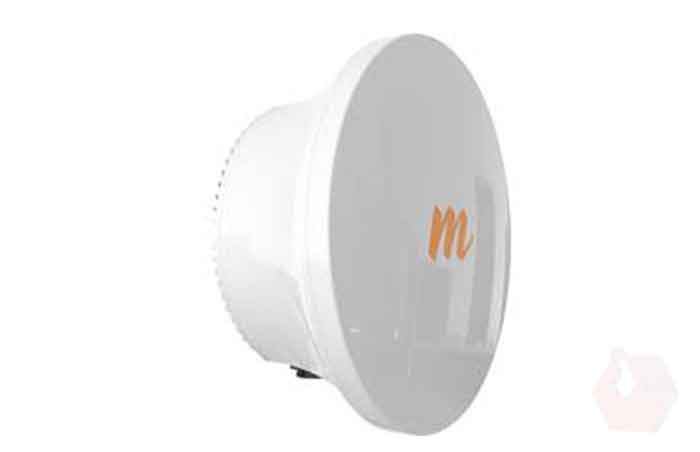

Mimosa B24
The Mimosa B24 delivers nearly a Gigabit of low latency IP traffic in a single direction. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Introduction
Mimosa B24 breaks the existing barrier of price, size, performance, and power efficiency in the less crowded unlicensed 24 GHz band. By dynamically adjusting bandwidth based on upstream and downstream demand, the B24 efficiently delivers the most usable bandwidth possible with 1 ms low latency, to meet modern internet traffic needs. The B24 is revolutionizing the industry, satisfying the needs of customers in multiple applications and verticals.
Product Features
Lightweight, Low Power
Gigabit Ethernet: 10/100/1000-BASE-T
Fiber Capable: Supports SFP+ interface for fiber operation
Ethernet Redundancy: Dual Link fail-over; Does not support simultaneous Ethernet + fiber operation
Dual Protocol Operation: 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO
streams with individual stream encoding up to 256 QAM
Management Services: Mimosa cloud monitoring and management SNMPv2 & Syslog monitoring HTTPS: HTML based web UI
2.4 GHz 802.11b/g/n radio for local management access
Security: 128-bit AES PSK with hardware acceleration
QoS: Supports 4 pre-configured QoS levels
GPS Location: GNSS-1 (GPS + GLONASS)
Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
More Features:
Price Performance Leader
Delivering nearly a Gigabit of low latency IP traffic in a single direction, the Mimosa B24 is the industry’s price performance leader in unlicensed 24 GHz backhaul. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.
Gigabit on Demand
To meet modern internet traffic needs where nearly 90% of the peak evening traffic demand can be in the download direction, the B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed either upstream or downstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized.
Unparalleled Reliability
Don’t be distance-limited by higher frequency microwave technology. Use the B24 to avoid the congested 5 GHz spectrum and deliver superior reliability, even with rain, at practical distances up to 3 km (2 mi).
Specifications
| Max Throughput | Up to 1.5 Gbps Ip aggregate UL/DL |
| Max PHY rate | 1.7 Gbps PHY |
| Low Latency | <1 ms |
| Supported MAC | TDMA, TDMA-FD |
| MIMO and Modulation | 4x4:4 MIMO OFDM up to 256 QAM |
| Bandwidth | Single or dual channel; 20/40/80 MHz channel width |
| Channel Spacing | Single channel allows 5 MHz channel spacing; Dual channel allows separate, no-overlapping 5 MHz spacing increments |
| Frequency Range | 24.05 - 24.25 GHz worldwide support; Operating range 24.07 - 24.23 GHz |
| EIRP | ~20 dBm (CE) ~33 dBm (FCC/IC) ~ 37 dBm (other regions) |
| Min Output Power | -20dBm |
| Power Increment Level | 1dB |
| Sensitivity (MCSO) | 84 dBm @ 80 MHz 87 dBm @ 40 MHz 90 dBm @ 20 MHz |
| Gain | 33 dBi |
| Beam-width (3dB) | 3.0deg |
| Elevation Adjust | +-2.5deg azimuth mechanical adjust +-15deg elevation mechanical adjust |
| Front to Back Ratio | >30 dB |
| Cross-Polar Isolation | >20dB |
| Polarization | Dual-linear (slant 45deg) |
| Max Power Consumption | 19.5 W |
| System Power Method | 48V DC 802.3at compliant |
| System Lighting & ESD Protection | 6 kV |
| PoE Power Supply | Passive PoE compliant, 50V 1.2A power over ethernet (included) |
| Approvals | FCC 15.249, IC RSS210, ETSI EN 300-440 V2.1.1 CE |
| RoHS Compliance | Yes; WEEE |
| Safety | EC/EN/ 60950-1 |
Physical
| Dimensions | (10.24 x 10.24 x 5.3") without bracket; (10.24 x 10.24 x 9.9") with bracket |
| Weight | 2.76 kg (6lbs) including mount |
| Enclosure Characteristics | Outdoor UV stabilized plastic,Powder-coated, aluminum mounting panel |
| Wind survivability | 200km/h (125 mph) |
| Wind Loading | 12.52 kg @ 160km/h (27.61 lbs @ 100 mph) |
| Mounting | Precision lightweight aiming pole mount with +-15deg elevation and +-2.5deg horizontal adjustment screws |
| Network Interfaces | Gigabit Ethernet (RJ45) and gigabit fiber (SFP) cage); Operation modes: Hot standby |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40degC to +55degC (-40deg F to 131deg F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4,420m (14500') max |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
Product Includes
| (1) B24 Radio |
| (1) Passive PoE 50V 1.2A |
| (1) Pole Mount |
| Horizontal Adjustment Screws |
