Mimosa G2 PoE 48v, 2.4 Ghz Wi-Fi POE Gateway

Product Introduction

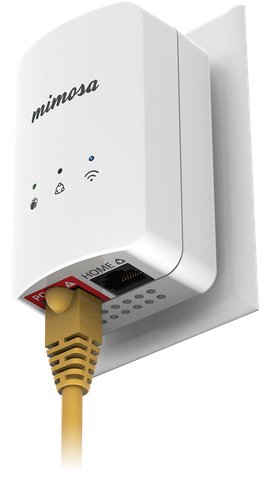

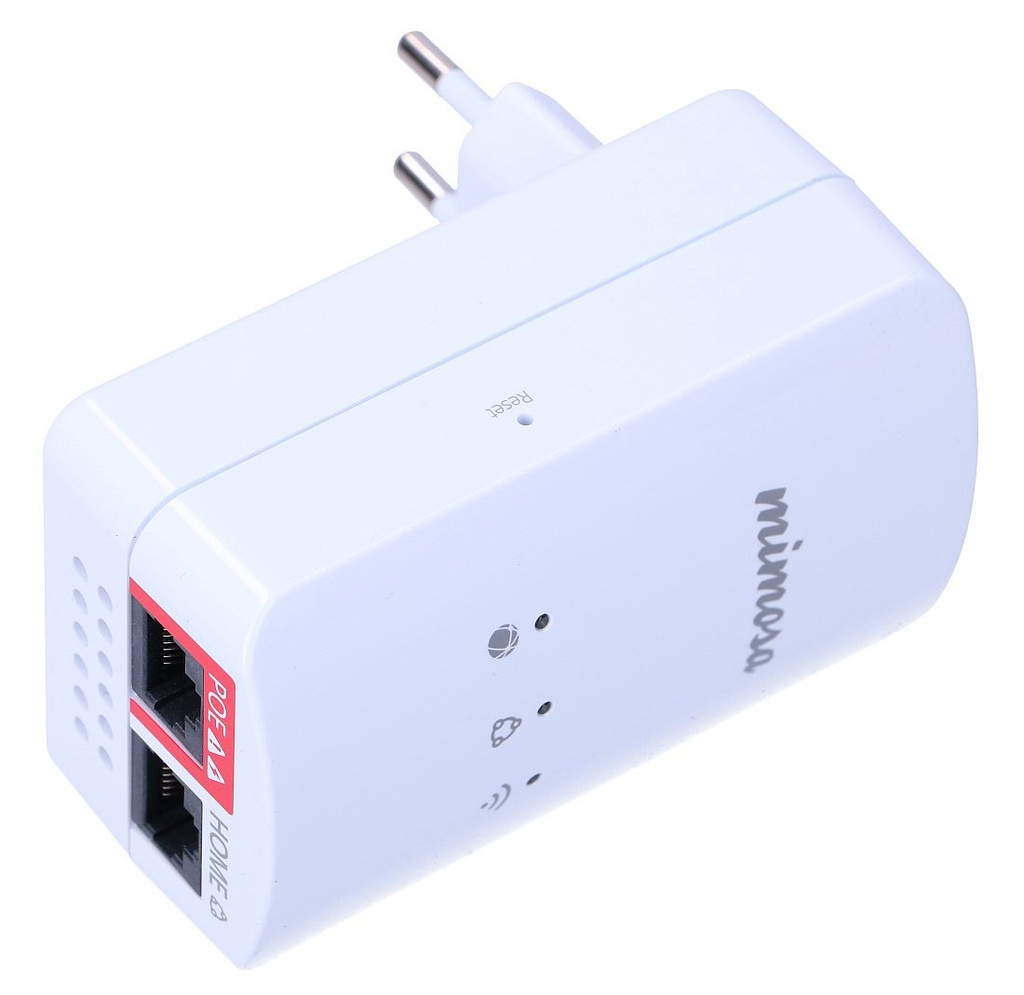

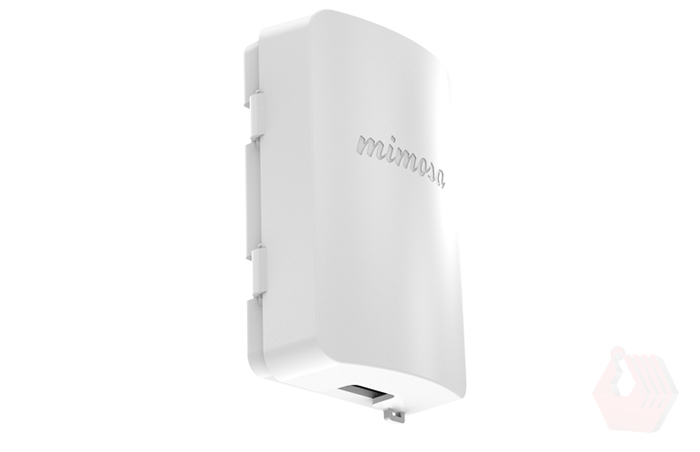

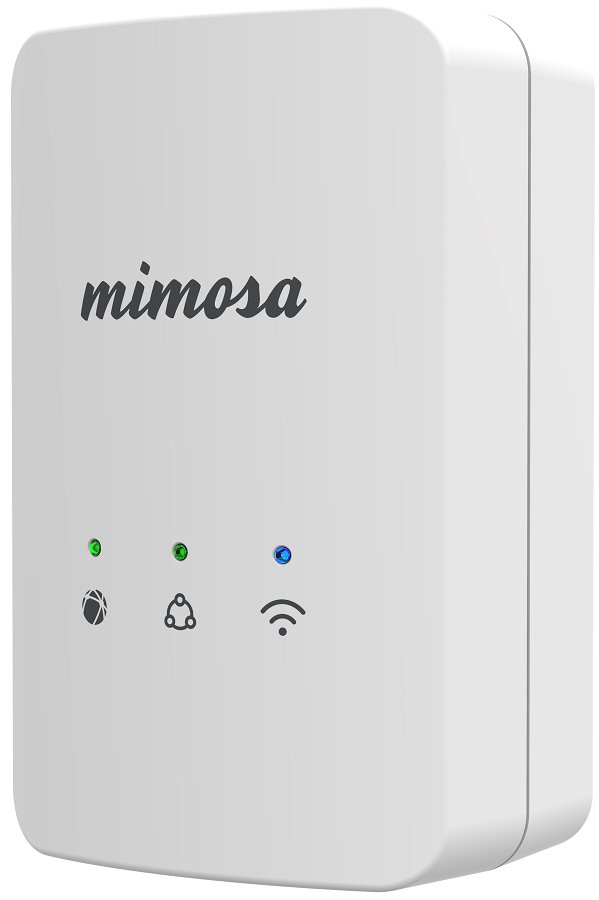

The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into an AC wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the Cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.

 Features:

• Two GigE Ports: WAN- 10/100/1000-BASE-T ; LAN- 10/100/1000-BASE-T

• Power over Ethernet (PoE) Out: 48V PoE on WAN port for Mimosa Client devices

• Pre-configured: Plug and go for quick installation ; Pre-printed Wi-Fi login information

• Channel Management: Auto selection of best channel ; Automatic interference avoidance

• Management: Mimosa Cloud monitoring ; Disable Configuration from LAN ; Management Access Control Lists ; SNMP v1, v2c, v3 ; Syslog

• SSID Support: Predefined Home and Guest ; Guest Isolation ; Up to 4 SSID

• Routing: NAT ; DHCP Server ; Stateful Packet Inspection Firewall ; Port Forwarding ; Static Router

• Tunneling / Authentication : PPPOE, PPTP

• Security: WPA/WPA2 Personal (PSK) ; WAP/WPA2 Enterprise (802.1x) ; AES, TKIP, WEP 64/128

• QoS: EDCA WMM pre-configured 4 level QoS, Rate limiting, WMM Power Save

Cloud Managed and Quality Aware

The cloud managed G2 enables you to offer a full end-to-end managed Wi-Fi service. Stay informed about your customer's Wi-Fi client signal health and Internet quality and put an end to unnecessary truck rolls for common support calls. Even time consuming tasks like RF troubleshooting and bulk software upgrades are a breeze. The G2 maintains visibility into the critical components required to keep Internet service operating properly and notifies consumers of issues.

Plug 'n Play

Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2 to easily extend Wi-Fi coverage.

ELEGANT SIMPLICITY

The Mimosa G2 ships pre-configured with an SSID name and unique password printed on the device as well as on a convenient and durable card, eliminating manual configuration and reducing support calls.

Technical parameters

Wireless Features

Power

PoE type:PoE-Out (only)

Max. power consumption [W]:14

Power via connector/terminal:230V AC (directly to the wall outlet)

Physical characteristics

Purpose:Indoor

Operating temperature [°C]:0 up to 40

Weight [g]:147

Width [mm]:57

Height [mm]:92

Depth [mm]:42
