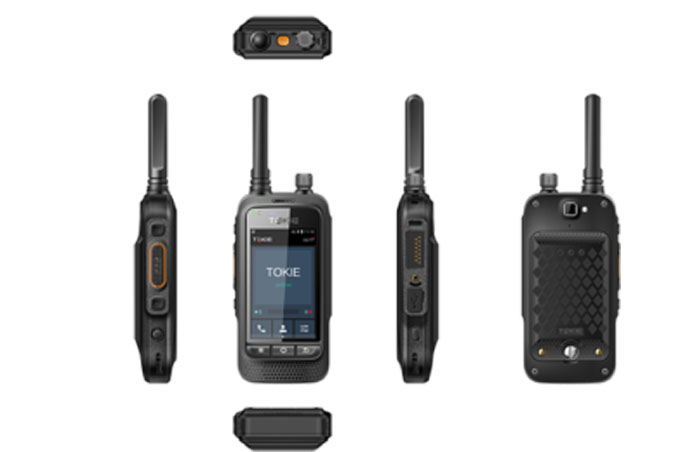

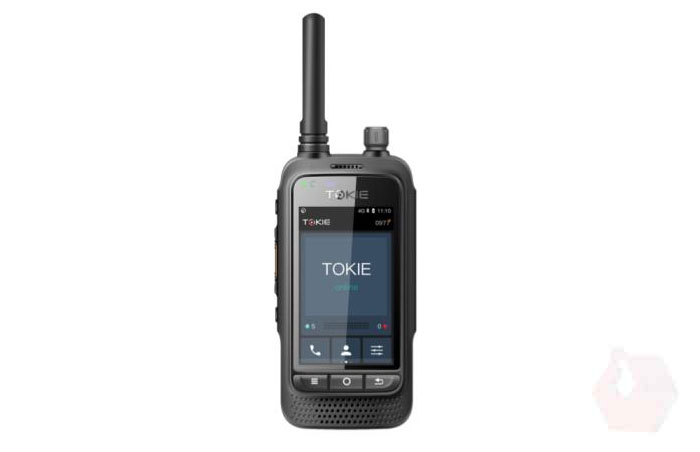

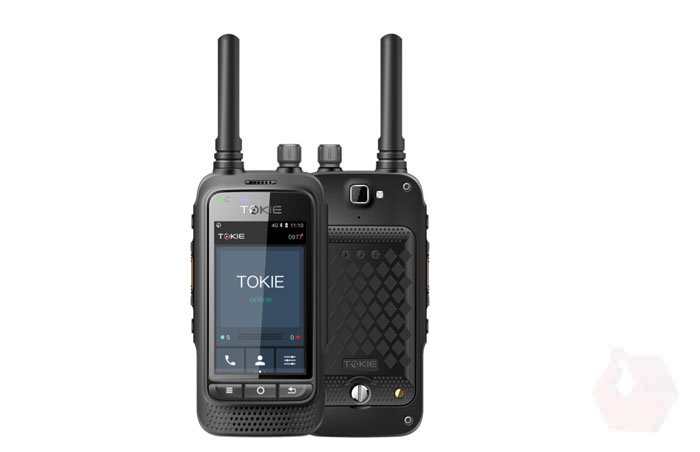

POC Radio TK1100
Professional / Intrinsically Safe Device
● Push-to-talk over WIFI, 2G, 3G, 4G LTE
● 3,600mAh Battery (EX: 2,000mAh)
● Gloves Touch Screen Capable
● Ruggedized Design with IP67 Rating
Support external speaker, earphone, UART, USB 2.0 & OTG
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Incomparable integration.
The stand out advantage of the Tokie PTT radio system is that two way radio communication can be deployed almost anywhere with no major fixed costs to the customer other than the rental or purchase of the radio and the cost of the subscription to the service.
The system allows for country wide as well as international coverage to be obtained and uses the cellular networks (4G LTE, 3G, 2G) as well as Simplex and Digital radio infrastructure. Therefore ensuring excellent range of coverage.
4G LTE / DMR Radio
FEATURES & BENEFITS
Live Streaming Via 4G LTE
Wireless Cloud Upload
Video Management Solution
Dual Stream Local & Live Recording
GPS Tracking
Comprehensive GEO-Fencing
PTT Communication
Panic Alert System
Guard Patrol Solutions
Voice Recording & History
Loan Worker Functionality
Broadcast Messaging
Cloud base Storage & Workflow
Incident Reporting & Management
Group, Priority, & Individual calls
AES256Encryption
|
Feature |
Description |
|
Operating System |
TOKIE customize Android 8.1 Oreo |
|
Hardware Platform |
MTK6739 Quad-Core A53 1.5GHz 64bit |
|
Network Type |
Support 2G, 3G(WCDMA, TD-SCDMA, C2K), 4G(FDD LTE/TDD LTE) |
|
RAM |
1 GB RAM + 8GB ROM / 2G RAM +16G ROM |
|
Display |
Corning® Gorilla® Glass 3, TFT 3.1“IPS, 800 x 480 |
|
GPS |
GPS, GLONASS & AGPS, dual-mode positioning |
|
WIFI |
802.11, a/b/g/n, dual-band |
|
Bluetooth |
BT4.0 |
|
Sensor |
G-Sersor, Proximity Sensor, Light Sensor |
|
USB Interface |
Micro USB 2.0, support OTG |
|
SIM Card |
Micro-SIM single card |
|
Encoding / Decoding Capabilities |
H.264 high pro , fi le, 720P 30FPS |
|
Speaker |
36 MM ⏀ 2.0W @ 90dB |
|
Microphone |
Sensitivity -42dB |
|
Rear Camera |
8 Million Pixels Camera |
|
Front Camera |
2 Million Pixels Camera |
|
Video Quality |
Support 720P video recording |
|
Indicator LED |
Single 3-colors LED |
|
M6 |
Support External Speaker, Mic, Earphone, DMR Talking, UART |
|
Working Environment |
Temperature -20 °C - 60 °C, humidity 20% - 90% |
|
Degree Of Protection |
IP67, water & dust resistance, anti-drop 1.5 meters |
|
Weight |
210 g, with battery |
|
Battery Capacity |
3,600mAh, replaceable |
|
Duty Cycle Time |
About 12 hours (5-5-90) |
|
Size |
119.5 mm x 61.5mm x 23.5mm |
|
Feature |
Description |
|
Frequency Range |
VHF 136 ~ 174 MHz / UHF 400 ~ 480 MHz (Optional) |
|
Frequency Stability |
± 0.5ppm |
|
Number of Channels |
16 (Analog/Digital) |
|
Channel Spacing |
12.5KHZ / 25KHZ (Analog), 12.5KHZ (Digital) |
|
Vocoder |
AMBE3000, WT3000, AMBE1000, SELP, AVDS |
|
MIL-STD |
MIL-STD 810D and E |
|
Audio Distortion |
Less than 10% |
|
Audio Power |
2 Watt |
|
DMR |
TIER 1 & TIER 2 |
|
Transmitting Power |
Low: 0.5W, High: 2W |
|
Antenna Impedance |
50Ω |
|
Sensitivity |
0.22 mV (Typical) |
|
DMR Antenna Type |
External glue rod antenna |
|
Support |
Direct Mode, TDMA, Frequency Scanning, DTMF(Analog), CTCSS/CDCSS |
User Must have License to Used UHF/VHF radio in Nepal. Decade International can Help you for document incase you need assistance. UHF/VHF License need be renew each fiscal year, Frequency amount pay as per used Radio sets quantity and used Power.

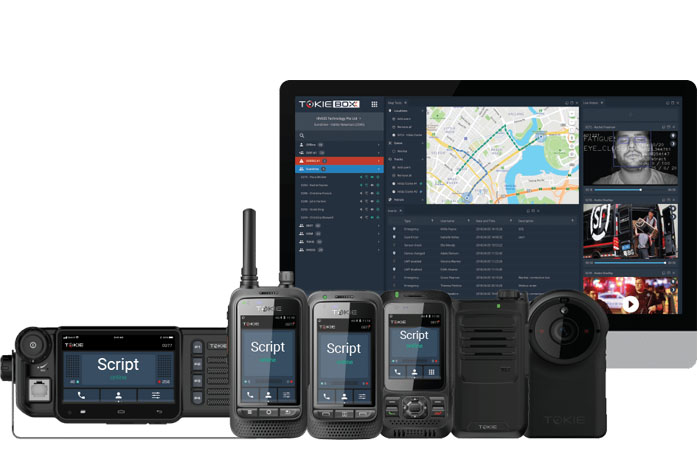

Software allows users to communicate, message, track and provide customer support services/ Manage services from a central location. PC Dispatcher enables you to communicate with, locate, manage and ensure the safety of your mobile workforce.
A geofence is a virtual perimeter for a real-world geographic area. A geo-fence could be dynamically generated—as in a radius around a point location, or a geo-fence can be a predefined set of boundaries.
The POC radio tells you where it is and where it has been. Radio updates every PTT Point every 60 seconds with its auto-refresh feature. It shares the Radio location on the map. You can know the exact location of your workforce Decade POC radio.
Abell POC recorder w/ secure voice, data & call recording. Analyze & monitor radio user movements: GPS recording, channel activity, data export & more with extended memory card as your choose. Only control can access on that as you need.
* Server charge and GSM Network cost need extra for to operate this unit.
