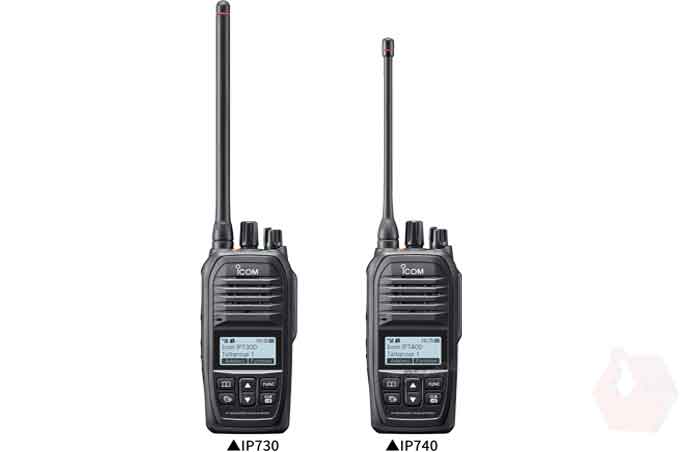

IP730D

Icom’s IP730D1 is a revolutionary hybrid radio. With dual PTT buttons, the IP730D transmits and receives LTE, IDAS and analog networks to create nationwide coverage. The IP730D offers flexibility and assurance. Wherever coverage is needed, the IP730D is ready.

Features:

  • Hybrid IP radio that combines an LTE radio and a conventional professional radio in one unit (IDAS digital/analogue mode)

  • Dual mode operation for simultaneously receiving/transmitting in LTE and conventional professional radio modes

  • Bridge mode function relays received IDAS digital audio to the LTE radio group, while transferring the LTE radio conversations to the IDAS digital group

  • Built-in Bluetooth wireless technology


Product Description

Icom’s IP730D1 is a revolutionary hybrid radio. With dual PTT buttons, the IP730D transmits and receives LTE, IDAS and analog networks to create nationwide coverage. The IP730D offers flexibility and assurance. Wherever coverage is needed, the IP730D is ready.


Features

Dual Mode Operation

Dual PTT

The main PTT button is larger and sits above the slightly smaller sub PTT button. Program either PTT button as LTE or IDAS/analog. Two more programmable button sit below the secondary PTT button.

Dual Receive

Receive IDAS, analog and LTE signals at the same time. Prioritize between LTE or IDAS/analog calls by selectively raising the volume. Always stay up to date on both channels.

Bridge Mode

Connect to another site’s IDAS or LTE conversations with Bridge Mode. Bridge Mode links IDAS and LTE transmissions together, allowing LTE transmissions to go over LTE talkpaths or vice versa. Bridge mode does not work with the analog function.







Bridge Function

The Bridge function* relays received IDAS™ digital audio to the LTE radio group, while transferring the LTE radio conversations to the IDAS™ group. This function is useful when communicating outside of the LTE service coverage area with an IDAS™ radio, or temporary cross band connection between two IDAS™ radio groups using different frequencies or channels.




LTE Mode

LTE mode provides secure private push-to-talk communication over an LTE (4G) and 3G network. The cellular network provides coverage into building basements or high-rise floors where conventional radio systems may not reach.

.





.



IDAS Mode

IDAS digital mode is a conventional VHF/UHF radio mode using licensed professional radio channels. It also provides Individual, Group and All calls with PTT operation. When operating in remote, mountainous areas, 4G/3G networks may not be available. Conventional VHF/UHF communications provide a stable, local alternative.

Sub PTT Button for Dual Mode Operation

The IP730D series has two PTT buttons; the main PTT button and the sub PTT button. You can use one for LTE communication and the other for an IDAS/Analog channel. The sub PTT button offers smooth switching between talking on LTE and IDAS/Analog channels.


Full-Duplex Communication in LTE Mode

The IP730D series provides full-duplex operation in LTE mode. This allows you to talk and receive at the same time, much like a telephone conversation.


1500 mW Powerful Audio

Icom’s custom high-power capacity speaker delivers a loud 1500 mW audio output with improved acoustic sound clarity for noisy environments.




Built-in Bluetooth Technology

Built-in Bluetooth capability provides wireless operation with a Bluetooth accessory. The optional Bluetooth headset, VS-3 has PTT and programmable buttons.




GPS Data Transmission Capability

The IP730D series has a built-in GPS receiver that can automatically transmit position data at programmed intervals.


IP67 Waterproof and Dust-Tight Specification

The IP730D series is durable enough to endure water pressure under 1- meter depth for 30 minutes, and has dust-tight protection. The radio meets MIL-STD-810 specifications.



Emergency Call Features Specification

By holding down the orange emergency button, you can transmit an emergency call. In addition, the radio has three emergency related functions: Man Down, Lone Worker and Motion/Stationary Detection functions. If one of these functions is activated, the radio automatically transmits emergency signals to alert your controller or dispatcher of any potential trouble.


Digital Voice Recording/Playback

The IP730D series can record incoming calls of up to 4 minutes, or a maximum of 10 messages, and the user can check recorded communications.


RoIP Gateway to Link to Other Systems

With the VE-PG4 RoIP gateway, the IP730D series can interconnect with an IP phone and various radio systems including WLAN radio, satellite PTT, LTE, IDAS™ and analog radios.





Specifications

Frequency Range
136–174MHz
Number of Channels
128 Channels / 8 Zones
Operating Temperature Range
-30ºC to +60ºC / -22ºF to +140ºF
Dimensions
140.5 × 61.7 × 42.8mm
Weight
320gr (with BP-303)
RF Output Power
5W, 2W, 1W (Hi, L2, L1)
Receiver Sensitivity
–7 dBμV emf typ. (0.22 μV typ.)
Audio Output Power
1500 mW typ. (10% distortion)
Water & Dust Protection
IP67 (Dust and waterproof)
Durability Standard
MIL-STD 810G
