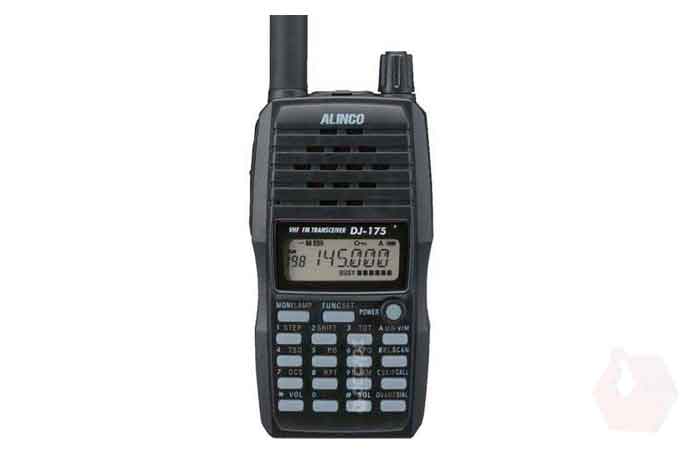

ALINCO DJ-175

Alinco has created a new 2 meter HT that sets new standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that’s“ user friendly” and the 5-watt output battery is standard.

Feature:

  • Two-touch Repeater Access

  • Rugged polycarbonate body

  • Highly visible backlit alphanumeric display

  • Direct frequency input through illuminated keypad

  • 200 memories plus 1 CALL channel

  • VFO, Memory and Scan modes

  • Ultra-flexible antenna with SMA port

  • 39 CTCSS tone squelch (encode/decode)

  • 1000,1450,1750 and 2100Hz Tone-bursts

  • Battery-drain functions avoids memory-effect

  • Ergonomic design, fits in the palm of your hand

  • Wire-cloning capability

  • 3 levels of output power (5 / 2 / 0.5W) ¡Clean, crisp and powerful 500mW Audio


Alinco has created a new 2 meter HT that sets new standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that’s “user friendly” and the 5-watt output battery is standard. Be prepared for virtually any selective calling situation or gaining access to repeaters with 39-tone CTCSS, 104 DCS, Tone-bursts and DTMF encoding, all included at No extra costs. Best of all, DJ-175 retains the proud Alinco tradition of quality construction and excellent value.


Introduction

The Alinco DJ-175T 2 meter HT sets standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that is user friendly and the 5-watt output battery is standard. Be prepared for virtually any selective calling situation or gaining access to repeaters with 39-tone CTCSS, 104 DCS, Tone-bursts and DTMF encoding, all included at no extra cost. Best of all, DJ-175 retains the proud Alinco tradition of quality construction and excellent value. Enjoy extended receive coverage from 136-173.995 MHz.

 Features

  • Scanning

  • 200 Memories

  • NiMH Battery

  • Backlit Display/Keypad

  • Encode/Decode

  • Tone Bursts

  • Wire Cloning capable

  • 5/2/0.5 Watt output






Each DJ-175T comes standard with:  flexible SMA antenna, EBP-72 NiMH battery pack and EDC-146 wall adapter and EDC-165 NiMH drop-in trickle charge stand.

Specifications:

Frequency Coverage
TX: 144 - 147.995 MHz
RX:136 - 173.995 MHz
Signal Type
F3E [FM]
Receiver System
Double Conversion Super-heterodyne
Channel Step
5, 10, 12.5, 15, 20, 25, 30 kHz.
Memory Channels
200 memory channels+ 1 call channel
Tone Encoder
39 tone encoder standard
Deviation
± 5 kHz
TX Output
5/2/0.5 Watts
TX Spurious emissions
Not more than -60dB
Frequency Stability
± 5 ppm (-10 to +50° C.)
Sensitivity
Better than -15 dBu (12dB SINAD) at 145 MHz
Selectivity
± 6 kHz -6dB
I.F.
1st = 21.7 MHz, 2nd = 450 kHz
Power Supply Requirements
7.2VDC via battery only
Current Consumption
TX: 1500 mA, RX: 250 mA, Standby 70, Batt Save: 30mA
Antenna Jack
SMA
Size
2.28 x 4.23 x 1.43 inches 8.7 oz without projections
