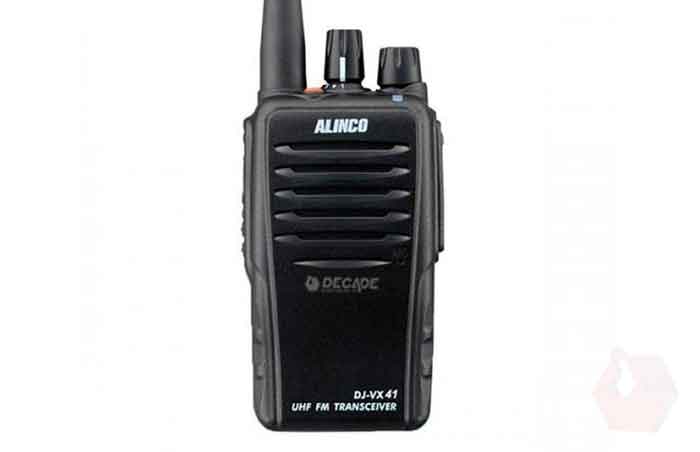

ALINCO DJ-VX41E UHF Transreceiver

ALINCO MADE in JAPAN, UHF handheld transceivers a 128 channels to program operating parameters with IP-67 compatible water/dust proof , rechargeable 1800mAh Li-Ion pack, desktop quick-charger, belt clip and high-performance whip antenna, VOX, Voice Encryptions / Compander, Scan / Skip, Various Alarm features and more!

Features:

  • 128 PC-programmable channels(16ch x 8 groups)

  • Li-Ion battery pack and stand-charger as standard accessories

  • Voice Compander(Reduce Noise & enhance audio clarity

  • Inversion Scramble(Analog encrption)

  • Sub-tone(CTCSS/DCS) Encode/Decode and DRMF

  • VOX built-in

  • Ingress protection IP67

Introduction

The radio station is equipped with a dust-proof case that meets mil-std-810ip67 standards, a powerful internal speaker and a lithium-ion battery with a capacity of 1800 mAh.

The full frequency range of 400-470 MHz will allow you to contact any radio station suitable in frequency without requiring special skills for the user.

The presence of CTCSS and DCS tones, as well as the built-in analog Scrambler will make the work of alinco available in different groups at the same frequency, without interfer.







Features:

  • Rugged,polycarbonate body resists rain and dust (1P67 compatible)

  • 128 memories (l6ch x 8groups) to program operating parameters and tone-squench tones

  • High-performance whip antenna

  • Works with rechargeable Li-ion battery pack

  • Ergonomically designed body, weighs only 238g inclusive of EBP-101 and antenna

  • Dealer-programmable features including Scans and Tone-signalling

  • Simple, easy-to-use interface

  • Microphone and earphone ports

  • VOX built-in

  • Analog inversion scrambling



Specifications

Frequency coverage
[TX/RX] 16ch PMR446
Mode
8K50F3E (NFM)
Memory channels
128 channels (16ch x 8groups)
Frequency stability
±2.5 ppm
Operating voltage
7.4V battery
Usable temperature range
-20~+60°C (-4~140°F)
Charging temperature range
+5~+40°C(+41~104°F)
Dimensions(Projections not included)
243x59x38mm (with battery pack, antenna)

Weight
238 g (with battery pack, antenna)
Sub audible Tone(CTCSS/DCS)
encoder/decoder
Transmitter
Output power
Approx.500mW
Spurious emissions
Less than -36dBm
Max.frequency deviation
±2.5kHz

Receiver
Receive system
Direct conversion
Sensitivity(l2dB SINAD)
-12dBu
Adjacent Channel Selectivity
More than 60dB
Intermodulation
More than 55dB
Spurious Rejection
More than 70dB
Audio output power
Audio Power Output 1000mW/10%
