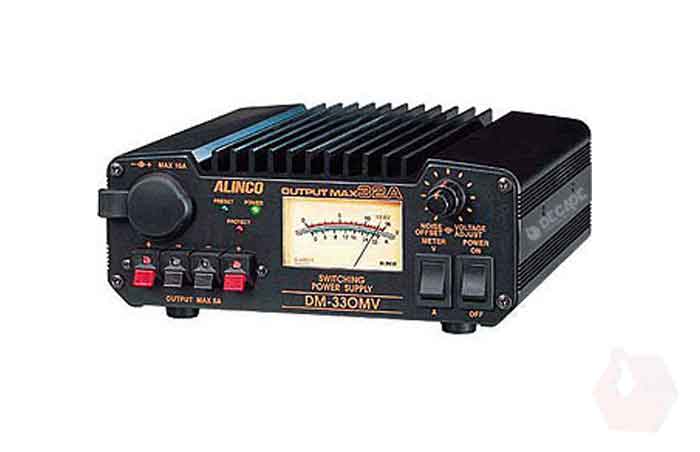

ALINCO DM-330MVT Power Supply

Alinco DM-330MVT Power Supplies offer a combination of high-quality space-saving components and high-efficiency switching technology. This makes it possible for their switching supplies to be super-compact and easy to carry for portable operations and still generate a high continuous output.

Features:

  • The combination of high-quality space-saving components and high efficiency switching technology made it possible for the DM-330MV to be super-compact and easy to carry for portable operations and still generate a high continuous output !

  • Alinco's communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more.

  • Safety protections are also very important. The DM-330MV comes with short circuit protection, a current-limiting system and extreme temperature protection.

The Alinco DM-330MVT is a variable voltage, switching power supply that delivers 5 to 15 VDC at 30 amps continuous or 32 amps surge.

The combination of high-quality space-saving components and high efficiency switching technology make it possible for the DM-330MVT to be super-compact and still generate 30 amps continuous output. Alinco's communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more.

The DM-330MVT comes with short circuit protection, a current-limiting system (over 32 amp) and extreme-temperature protection. The pre-set voltage function makes the DM-330MVT even easier to use. Just store the most frequently used voltage in the memory, and it is constantly ready to go. And of course it is easily varied. Convenience is another feature of the DM-330MVT! A cigar-plug socket (Max 10 amps), a set of Max 32 amps terminals, and two sets of snap-in terminals (Max 5 Amps) are provided. A large back-lit Amp/V meter displays the status of the power supply.

Introduction

Alinco DM-330MVT Power Supplies offer a combination of high-quality space-saving components and high-efficiency switching technology. This makes it possible for their switching supplies to be super-compact and easy to carry for portable operations and still generate a high continuous output.

Alinco's communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more. Their adjustable Noise-Offset control allows you to any shift power supply birdies you may encounter with their DM-330MVT supplies off of the frequencies you would like to use.









Features:

  • Frequency range: 400-470 MHz

  • Output Power: 5 W/2 W 0.5 W

  • 128 Memory channels

  • 8 groups of 16 channels per group

  • Ergonomic body design

  • Wide and Narrow modes

  • Voice Message

  • VOX Function

  • SMA antenna

  • Scrambler Function

  • Compander voice

  • IP67 water and dust protection

  • CTCSS, DCS, DTMF signaling

  • High capacity Li-Ion battery

  • Functions: remotr-kill/stun/revive, repeater-reverse,

  • Busy channel lockout, Time Out Timer and more

  • MIL-STD-810 tested for compliance

  • Programmable computer

Specifications

Input voltage
120 Vac
Output voltage
5 to 15 Vdc variable
Output current
32A (max), 30A (continuous)
Ripple
less than 15mV p-p at rated load
Output voltage variation
 less than 2 percent
 Protection
short-circuit, Automatic current limiting over 32A, over-temperature
Fuse
8A
Meter
single volt/current meter, back-lit
Size
6.890 (w) x 2.638 (h) x 5.315 (d) in.
Weight
4.4 lbs.

Package Contents:


  • Radio ALINCO DJ-VX41

  • Antenna EA-259 SMA

  • Battery ebp-101 Li-ion 7.4 V 1800 mAh

  • Charger EDC-219

  • Adapter EDC-220

  • Clip EBC-51

  • User Manual
