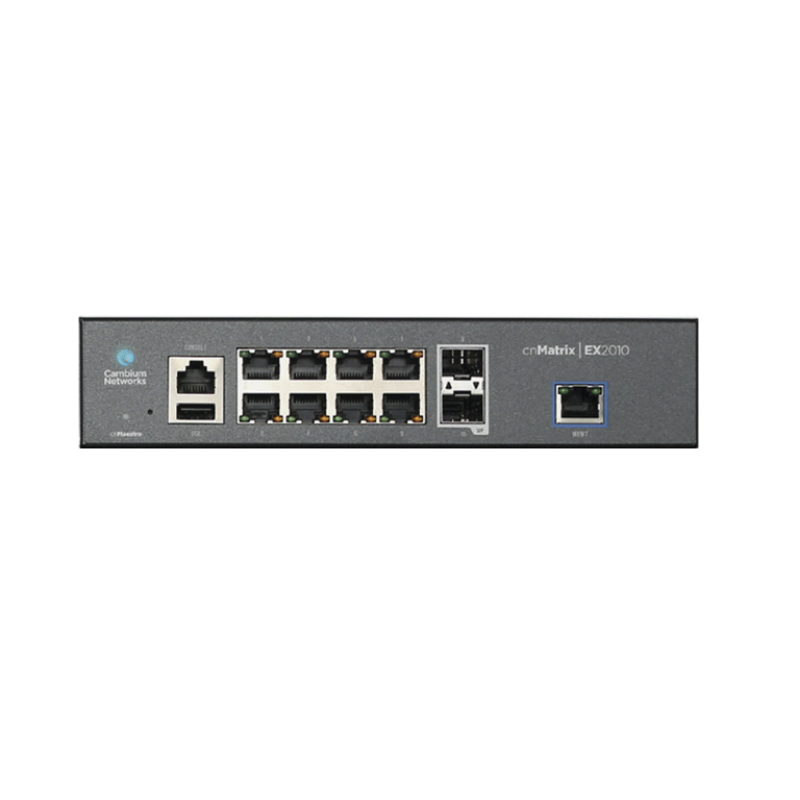

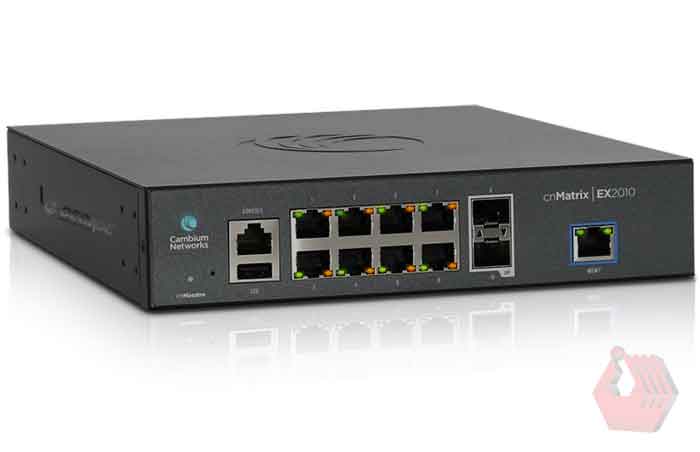

Cambium CNmatrix EX2010

Improve network performance while reducing the time and cost of provisioning and management.

Features:

  • Easy and simple free cloud management with cnMaestro

  • Zero touch deployment of switches makes deployment easy

  • Zero touch policy based configuration enables automation, reduces errors and network downtime

  • Device profiling, automatic port configuration and network segmentation improves security posture of the network

Product Information

Improve network performance while reducing the time and cost of provisioning and management

cnMatrix EX2010 switches simplify network deployment and operation. When deployed with cnPilot WLAN access points and the cnMaestro management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2010.






Features:

  • Save time, and reduce costs with a true Zero Touch initial deployment

  • Reduce network misconfiguration mistakes by eliminating error prone manual configuration

  • Dramatically enhance security with automatic segmentation of devices

  • Reduce troubleshooting time with central management and common policies across the network

  • Site survivable operation during cloud failures when connectivity is lost

  • Reduce total cost with affordable cnMatrix switches managed by the cnMaestro FREE controller

Specifications

Throughput20Gbps
Non-BlockingYes
PoE Enabled PortsNo
PoE Power Budget Units (watts)No
10/100/1000 Ports8
Uplink Ports2 SFP
Serial ConsoleYes
USBYes
OOB PortYes
Rack mount kitOptional
Internal FansFanless
Maximum Routes (Static)64
Dynamic Routing512
LACP/Trunking8 LAGs / 8 links per 9216
QoS Priority Queues8
Maximum IGMP Multicast groups256
Max PVRST32
