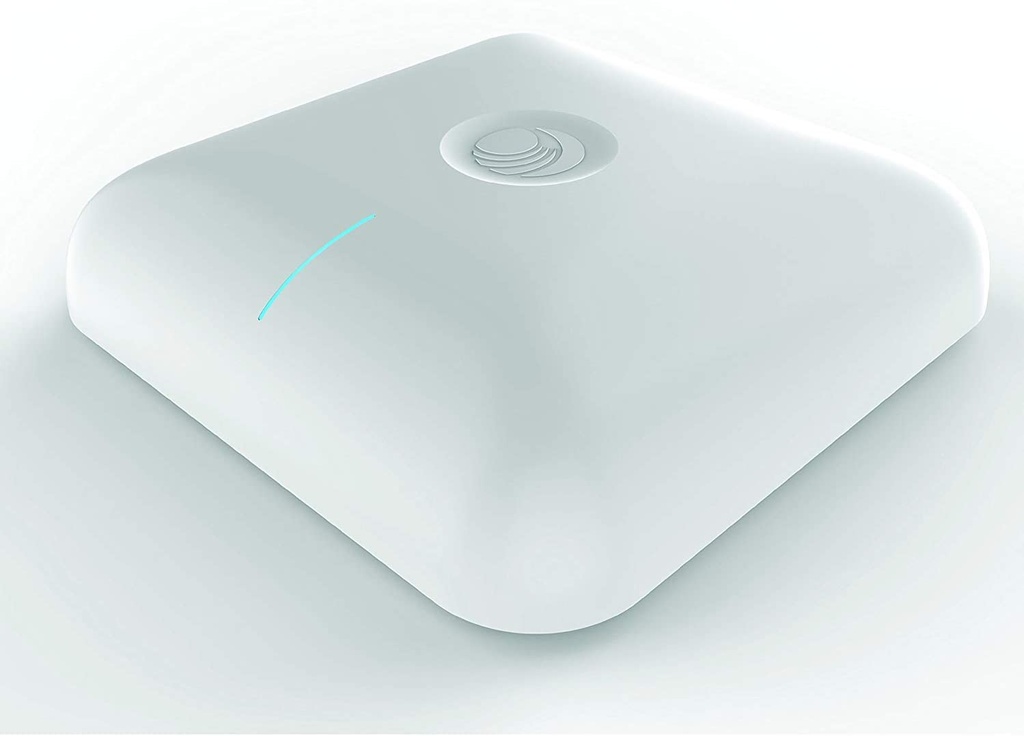

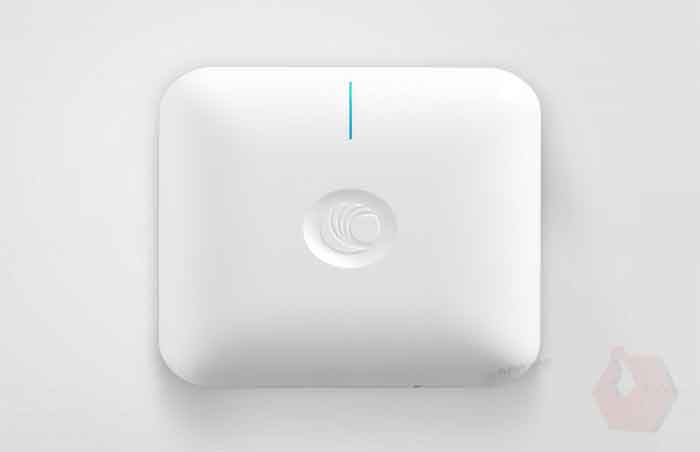

Cambium cnPilot e410

Future proof your indoor deployments with compact, low profile, Multi-user MIMO (MU-MIMO) beamforming, high-speed enterprise wireless access points.

Features:

  • Indoor/Outdoor Wi-Fi mesh across multiple E410s and E500s; a convenient way to wirelessly expand WiFi coverage

  • Supports seamless roaming for up to 1000 clients without needing a controller in the networking

  • Capacity for 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks

  • E410 can turn off impacted SSIDs when service is down, enabling client devices to redirect to a functional, neighboring access point

  • Monetize your WiFi service with cnMaestro's Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway


Description

The plenum-rated e410 with 2×2 MIMO packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage.

The compact low profile 802.11ac Wave 2 Multiuser MIMO (MU-MIMO) beamforming, high speed E410 Enterprise access point future proofs your Indoor access point deployments and is perfect for Schools, Indoor public spaces, Malls, Hotels and Resorts (Hospitality), Coffee shops, Multi-dwelling units (MDUs) or just about any place indoor that needs reliable high performing access points.




Features

  • Future proof your indoor deployments with the compact, low profile, 802.11ac Wave 2 Multi-user MIMO (MU-MIMO) beamforming, high-speed E410 Enterprise Access Point.

  • The Cambium E410 is perfect for schools, malls, hotels, resorts, coffee shops, multi-dwelling units (MDUs), or any indoor environment that needs reliable, high performance access points.

  • The Cambium E410 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.

  • Monetize your Wi-Fi service with cnMaestro's Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway.

  • The plenum-rated E410 packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels - offering more flexibility than ever for both coverage and capacity.

Specifications


Standards
IEEE 802.11a/b/g/n/ac Wave 2
MiMO Streams
2x2 MiMO
Range
180m (650ft)
Concurrent Clients
256
Max Data Rates
867Mbps
Antenna Gain
4.55dBi (2.4GHz) / 4.25dBi (5GHz)
Multi-Hop Mesh
Yes, supported on Indoor and Outdoor access points. Mesh auto-recovery supported
Polarization
Dual-linear
Antenna Coverage
Omni (360°)
Ethernet Ports
1 Gigabit Ethernet
Frequency Bands
2.4GHz: 2400 - 2484MHz
5GHz: 5150 - 5850MHz with DFS band support
Power Supply
Standard 802.3af injector any PoE switch
Power Consumed
13W (max)
Dimensions
170 x 170 x 41mm
Weight
384g
Temperature
0 to 50°C
LED
Single LED window with tri-color (Amber, Blue, Green) display
Max Tx Power
+25dBm
Physical Lock
Kensington key hole
