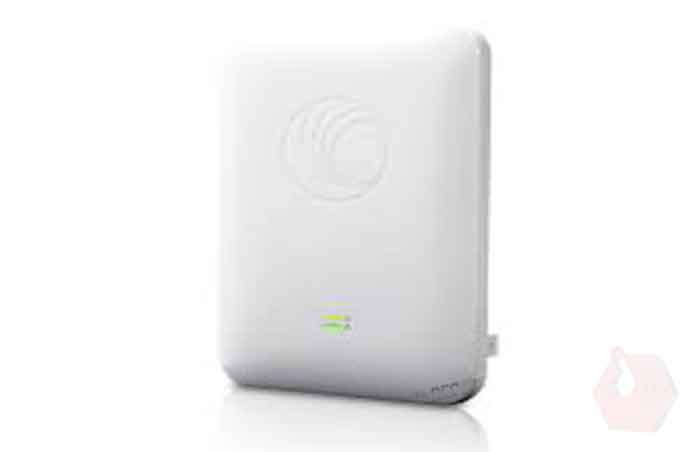

Cambium cnPilot e501S

The cnPilot™ e501S 802.11ac Outdoor Sector Access Point includes an IP67 enclosure, 90° ~ 120° integrated sector antenna, supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more.

Features:

  • Supports 256 clients, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more

  • Rapidly setup multi-hop mesh networks by either dedicating one radio for mesh backhaul, or using both bands for client access simultaneously

  • Aux PoE port offers PoE out, perfect for powering a standard 802.3af camera or Cambium's PMP 450 or ePMP backhaul SMs

  • Dual on-board Active/Standby memory banks ensure higher availability. Can store two versions of the software

Product Description

Cambium cnPilot E501S 802.11ac Access Point with built in Dual Band 90-120 degree Sector Antenna . The Cambium cnPilot e501 High Power Long Range Outdoor 802.11ac Wireless Access Point is perfect for demanding, high density applications and longer range coverage across large areas, including: industrial or education campuses, enterprise and hospitality complexes, public parks and recreational areas, or just about any demanding outdoor environment requiring cost-effective Wi-Fi , controller managed WLAN access points.



Features:

  • Standard 3 year warranty

  • 802.11ac, 256 users, 16 SSIDs

  • 90-120 degree Dual Band built in Sector Antenna

  • 23 dBm front-back ratio

  • UV rated IP-67 enclosure

  • Electrical heater for cold start

  • Ruggedised - ESD protection, industrial- grade components

  • Special LTE coexistence filters

  • Guest Access: Custom splash pages, vouchers, social login

  • Zero-touch provisioning and Mass (bulk) upgrade

  • Inventory tracking

  • Map location

  • Monitoring: key stats, alarms

  • Integrated troubleshooting: Wi-Fi APs, Clients & Cambium SMs

  • Controller: Cloud or Virtual On-premises (NOC) controller

  • PoE Power Supply and Mounting kit included

Highlights

  • cnPilot 2.0

  • 90°~120°coverage

  • Ruggedized -ESD protection,industrial-grade components

  • Packaged with wall& pole mount bracket

  • UV rated IP-67enclosure

  • 23 dBm front-back ratio

  • Special LTE coexistence filter




    Specifications

    Manufacturer's Code
    PL-501SPANA-RW
    Output Power
    29dBm @ 2.4GHz; 28dBm @ 5 GHz
    Frequency Range
    2.4 GHz: 2.4 – 2.4835 GHz; 5 GHz: 5.15 – 5.85 GHz
    Interfaces
    Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
    PoE Out
    Aux port: capable of 802.3af Power out or Canopy power (for supported Cambium ePMP or PMP450 SMs)
    Antenna gain dBi
    10.5 dBi on 2.4GHz; 13 dBi on 5GHz
    Max Power consumption
    Typical: 8W Max: 12.95W (no auxiliary device connected)
    Number of chains
    2x2 MIMO
    Dimensions
    30 x 20.4 x 6.5 cm (without bracket)
    IP Rating
    IP67
    Typical Range (Based on PtP)
    Client: 213m; Mesh: 2.4 GHz: 3,000m; 5 GHz: 1,500m (Actual range will vary based on local RF conditions & client capability)
    Max Data Rates
    1.01 Gbps
    Max Concurrent Clients
    256
