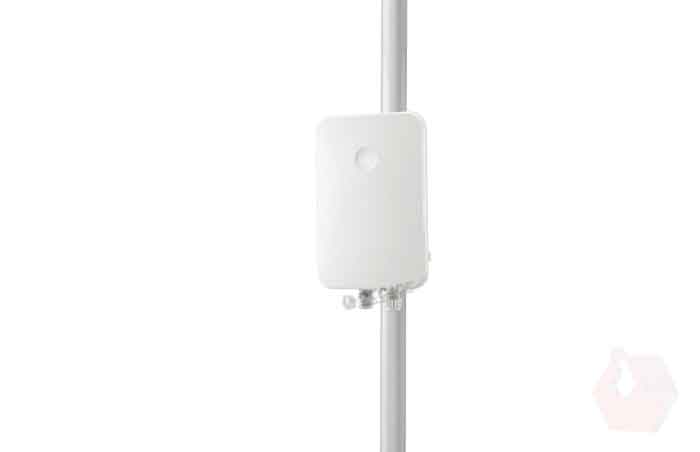

Cambium cnPilot e700

cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.

Features

  • 8 dBi high-gain omnidirectional antenna at 2.4 and 5 GHz

  • 11ac wave 2 standard based beam forming on 5 GHz

  • 4×4 MU-MIMO antenna on 5 GHz

  • 2×2 MIMO antenna on 2.4 GHz

  • EIRP: 33 dBm (2.4 GHz) and 36 dBm (5 GHz)

  • 512 clients, 16 SSIDs

  • IP67 rated rugged enclosure

  • The cnPilot e700 is cloud-managed


Product Description

The Cambium cnPilot e700 is the latest product in the Cambium Outdoor Access Point Line-up. The e700 offers greater reach through higher antenna gain, greater client capacity, and faster 802.11ac wave2 technology. This compact, cloud-controlled access point is ideal for public Wi-Fi in capacities such as large area enterprise campuses, higher education campuses, while its resilience allows it to operate in hostile conditions such as marinas, beach resorts, hot deserts, or cold mountains, all without compromising power or speed.



Features

  • 802.11ac, 512 users, 16 SSIDs

  • UV rated IP-67 enclosure

  • Operating humidity : 10% to 95%

  • Electrical heater for cold start

  • Rugged; ESD protection, Industrial grade

Wi-Fi Features

  • Controller Modes: Autonomous Controller-less operations (E.g.: roaming), Cloud Managed, On-premise virtualized controller

  • Secure WLAN: WPA-TKIP, WPA2 AES, 802.1x, 802.11w (Protected Management Frames)

  • Hotspot 2.0: Passpoint supported

  • Captive Portal: cnMaestro Controller, Redirection to external RADIUS, Stand-alone AP based, Server DNS logging

  • Authentication: RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS, MAC auth (local database or External RADIUS server)

  • Accounting: Yes. Supports RADIUS based accounting to multiple AAAs

  • Scheduled SSID: Turn SSID ON/OFF on a daily/weekly/time of day basis

  • Guest Access: Yes. With Active Directory Integration, Vouchers, Rate Limiting, Splash page creation on cnMaestro

  • VLAN: VLAN pooling, Dynamic VLAN from RADIUS server. VLAN per SSID per user

  • Data Limiting: Dynamic rate limiting of client traffic per SSID

  • Subscriber QoS: WMM

  • Client Isolation: Yes

  • Controller-less Roaming: Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming. Disconnect for sticky clients

  • Airtime Fairness: Yes

  • Mesh: Multi-hop meshing

  • ACS: Automatic Channel Selection: autoTune: Autonomous dynamic off-channel scans w/o disconnecting clients. Periodic scans and scheduled scanning

  • Automatic TX Power Control: autoRF: Autonomous controller-less transmit power control

  • NAT: Yes

  • DHCP Server: Yes

  • Firewall: Yes. NAT logging

  • ACL, DNS-ACL: Yes. L2, L3 or DNS based access control

  • Brand Balancing: Yes

  • Tunneling: L2TP, L2oGRE, PPPoE

  • Tools: Packet capture, IP connectivity, Wi-Fi analyzer, Sniffer, Auto Logging, Open source ZapD compliant performance test tool

  • APIs: Presence Location APIs


Designed for the outdoors

  • 802.11ac, 256 users, 16 SSIDs

  • Omni coverage

  • UV rated IP-67 enclosure

  • Max Operating Temp range: -40°C ~ +65°C

  • Operating humidity : 10% to 95%

  • Electrical heater for cold start

  • Ruggedized - ESD protection, Industrial grade components

  • Packaged with wall mount brackets

  • Special LTE coexistence filters

  • 315 x 215 x 66 mm | 3.174 lbs (1700 gms)


cnMaestro - WiFi Controller

  • Guest Access: Custom Splash pages, Vouchers, Social login

  • Zero-touch Provisioning

  • Inventory tracking

  • Map location

  • Monitoring: key Stats, Alarms

  • Mass (bulk) upgrade

  • Integrated troubleshooting: WiFi APs, Clients & Cambium SMs

  • Available in Cloud or as On-premises (NOC) Virtual controller


Specifications

Frequency Bands
2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz
SSID Security
WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
Max SSIDs
16
Max Concurrent
Clients  512
Max Data Rates
2.4GHz: 400Mbps, 5GHz: 1733Mbps
Ethernet Ports
Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
Antenna Integrated
Omni
Antenna Gain
8 dBi (2.4 GHz and 5 GHz)
Power Consumed
Typical 18W. Max 24.6W
Dimensions (cm)
315 x 215 x 66 mm (without bracket)
Weight
3.174 lbs (1700 gms) without bracket

cnPilot E700 Outdoor Omni Access Point
