Product Description

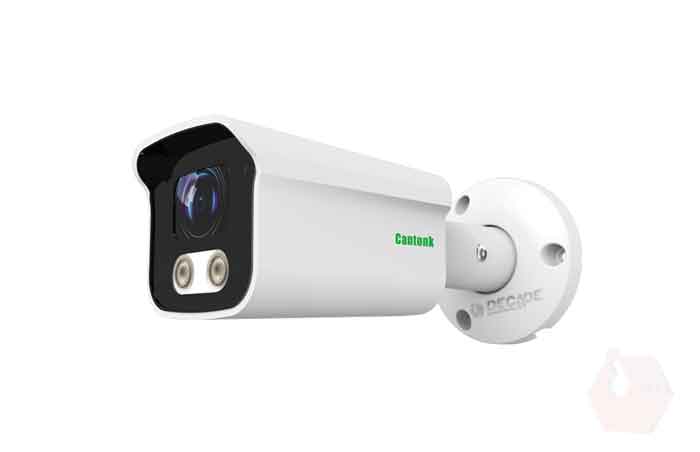

Cantonk 2MP Camera with Focus Length 3.6mm Infrared Distance 20M IPSBAKE200
are known for their longer outside casing, giving these surveillance cameras a distinguished and noticeable presence. Due to this form factor, bullet surveillance cameras can typically house a larger lens, making them an excellent outdoor camera capable of providing higher levels of detail over greater distances. This also lends itself to extended night vision for larger outdoor areas such as parking lots and traffic intersections.
are known for their longer outside casing, giving these surveillance cameras a distinguished and noticeable presence. Due to this form factor, bullet surveillance cameras can typically house a larger lens, making them an excellent outdoor camera capable of providing higher levels of detail over greater distances. This also lends itself to extended night vision for larger outdoor areas such as parking lots and traffic intersections.
Features:
1.Image Sensor with 1.29" Full HD CMOS Sensor
2.Night Vision with Infrared LED
3.Various Network options
| Model NO. | IPSBAKE200 | |
| Camera | ||
| Image Sensor | 1/2.9" Full HD CMOS Sensor | |
| Resolution | 2MP 1080P | |
| Effective Pixels | 1920(H)*1080(V) | |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG | |
| TV System | PAL/NTSC | |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec | |
| Minimun Illumination | 0.01Lux | |
| S/N Ratio | 60dB | |
| Scanning System | Progressive | |
| Video Output | Network | |
| Reset Button | Optional | |
| Lens | ||
| Focus Length | 3.6mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Pixels | 2MP | |
| Night Vision | ||
| Infrared LED | 42µ x 2PCS | |
| Infrared Distance | 20M | |
| IR Status | Auto Control | |
| IR Power On | Manual & Timed mode | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wireless | / | |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP | |
| ONVIF | Support ONVIF 2.4(Profile S/T/G) | |
| P2P | YES | |
| POE | Optional, Support IEEE 802.3af | |
| Video Delay | 0.3S (Within the Lan) | |
| Main Stream 1 | 2048*1536@20fps | |
| Main Stream 2 | 1920*1080@30fps | |
| Main Stream 3 | 1280*720@30fps | |
| Sub Stream 1 | 720*480@30fps | |
| Sub Stream 2 | 352*288@30fps | |
| Sub Stream 3 | / | |
| Tri Stream | / | |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| Camera Features | ||
| Day/Night | Color/ B&W (IR-CUT ) | |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |
| Full Color | / | |
| Corridor Pattern | Support | |
| Defog Mode | Support | |
| ROI | / | |
| BLC | Support | |
| WDR | / | |
| Motion Detection | Support | |
| Privacy Masking | 3 Rectangular Zone | |
| Recording Mode | NVR/CMS/Web | |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands,Czech, Vietnamese | |
| Interface | ||
| Audio | Optional | |
| Alarm | / | |
| SD Card Slot | / | |
| RS485 | / | |
| General | ||
| Housing | IP67 | |
| Anti-cut Bracket | YES | |
| IR Cut Filter | YES | |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%,700mA | |
| Dimension | 72 x66x175 | |
| Weight | 850g | |
