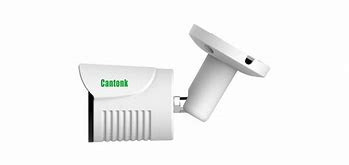

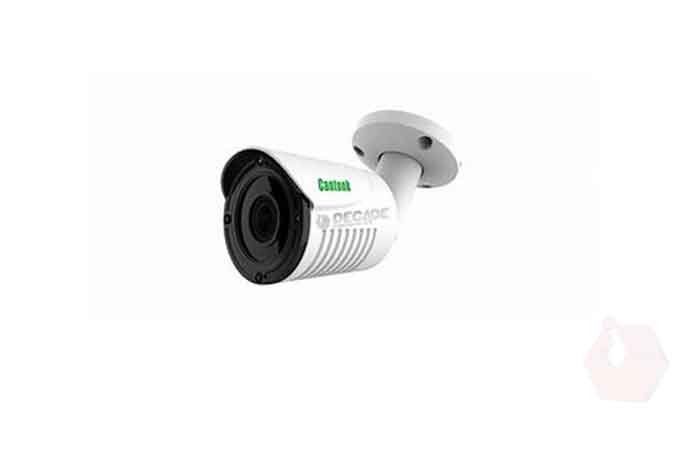

CCTV Camera KBCD20HTC200FE


Product Introduction

Cantonk IPDN20FG200 is the camera with image sensor 1/2.9" Progressive Scan CMOS Sensor. It has resolution of 2MP 1080P and effective pixels 1920(H)*1080(V). The focus length of the camera is 3.6mm with fixed focus control and lens type. The pixels of the camera is 2 MP.

Specifications

Model NO.KBCD20HTC200FE
Camera
Image Sensor1/2.9" Progressive Scan CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio60dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels2MP
Night Vision
Infrared LED14µ x 12PCS
Infrared Distance20M
IR StatusAuto Control
IR Power OnSmart, Manual & Timed mode
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  UPnP,  SMTP, UDP
ONVIFSupport ONVIF 2.4(Profile S/T/G)
P2PYES
POEOptional, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 12304*1296@30fps
Main Stream 21920*1080@30fps
Main Stream 31280*720@30fps
Sub Stream 11280*720@30fps
Sub Stream 2720*480@30fps
Sub Stream 3/
Tri Stream/
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart PhoneiPhone, Android
AI Function
Intelligent AnalysisIntrusion Detetion
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance,
FLK(Flicker Control), Video Tampering, HLC, Distortion
Full Color/
Corridor Pattern/
Defog  ModeSupport
ROISupport
BLCSupport
WDRDWDR: 50dB
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR/CMS/Web
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,
Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional Audio IN/OUT/ Optional Audio In
Alarm/
SD Card Slot/
RS485/
General
HousingIP67
Anti-cut BracketNO
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%,650mA
Dimension¢110 x 76(H) mm
Weight450g
