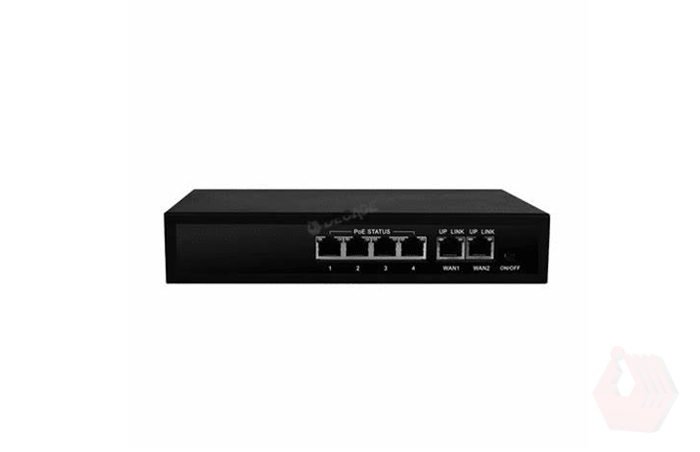

CCTV Network Switch HT412

It can help for configure settings for duplex, as well as bandwidth. It sets quality of service(Qos) levels for the specific port.
  • HT4126‐PORT 10/100M SWITCH WITH 4‐PORT POE IEEE 802.3af, IEEE 802.3at

  • PoE Power Output: Total 60Watts

  • Support EXTEND Mode

  • Surge Protection: Common‐mode Voltage 4KV,

  • Differential‐mode Voltage 2KV

  • Power Adaptor: AC100V~240V

  • Weight:1.1 KG

Introduction

Network Switch Ht412 is the network switch that can enable and disable specific ports on the switch. It can help for configure settings for duplex, as well as bandwidth. It sets quality of service(Qos) levels for the specific port. It also sets up SNMP monitoring of devices, including the health of the link. It configures port mirroring, for monitoring network traffic.

Description

  • SWITCH WITH 4-PORT POE

  • 6-PORT 10/100M SWITCH WITH 4-PORT POE

  • Power Adapter Voltage is of  input 110-240V/AC 50-60H

  • Mechanical Dimension of this switch is 200*140*40





Specification

Models

HT412

Power

Power Adapter Voltage

Input: 110-240V/AC 50-60Hz

The maximum power supply machine

60W

Protection Level

Mould

+-4KV

Differential mode

+-1KV

Network Connector

Network Port

1~4 port :10/100Mbps PoE Ethernet LAN port

WAN1/WAN2 port:10/100Mbps Ethernet WAN port

Transmission Distance

Extend switch is default OFF, state(1~4 port):100m

Extend switch is ON, state:(1~4 port:): 200m WAN1/2 port: 100m

Transmission medium

Cat5/5e/6 standard network cable

Network Switch

Network Standard

IEEE802.3/10BASE-T Ethernet

IEEE802.3u/100BASE-TX Ethernet

IEEE802.3x Flow Control, IEEE802.3af

Maximum Frame Size

1536 Bytes

MAC address lis

2K

Backplane bandwidth

1Gbps

PoE Standard

IEEE802.3af

Power Over Ethernet

PoE Power Supply Type

End-Span(4/5+;7/8-)

PoE Power Consumption

af, at Adaptive (every port)

LED Status Indicator

POE Ethernet

When the PoE power supply is used, 1-4 LEDs are green

When accessing Ethernet, ports 1-4 are yellow

Environment

Working temperature

0~55

Storage temperature

-40~70

Working humidity

10%-90% non-condensing

Storage humidity

5%-95% non-condensing

Mechanical

Dimension (L x W x H) mm

220*140*40

Material

SECC

Color

Dark grey

MTBF

>30000h
