CCTV NVRC930
Features:
Compatible with Advanced, High-Definition IP Cameras
Only requires One PoE Cable
Easy Setup is Suitable for Diyers
Video Analytics
Can Record Audio and Video
Introduction
NVRC930 record and store video footage directly from the network it lives on. These systems work with an advanced type of camera, called IP cameras. IP cameras can actually capture and process video and audio data themselves. They do so using either an ethernet cable or wirelessly via an existing Wi-Fi network.
A network video recorder does not use any dedicated hardware for video capture but makes use of special software on a dedicated device. It can record as well as access recorder images and live views.
Features:
Can record video and audio; DVR only records video
Cost, typically NVR systems are more expensive
Better image quality
Software can be harder to use
More system flexibility
Better coverage, 1 camera has multiple lenses
Can be wired or wireless; DVR cannot be wireless
Only needs 1 cable for video, audio and power
Can be used to identify faces, license plates, etc. due to higher image quality
Specification
Model | NVR921 |
System | |
Main Processor | ARM Cortex A7 Processor |
Operating System | Embedded LINUX |
Video | |
Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
Output | 1 VGA, 1 HD |
Audio | |
Input | 1 Port RCA |
Output | 1 Port RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Audio Compression standard | G711u, G711a, ADPCM_DVI4 |
Intercom | support (one-way) |
Alarm | |
Sensor Input | NO |
Output | NO |
Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
Display | |
HD Output1 | 3840x2160 1920x1080 1280x1024 1280x720 1024x768 |
HD Output2 | / |
VGA | Resolution:1920 × 1080, 1280 × 1024, 1280 × 720 |
Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k |
Digital Zoom | YES |
OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording | |
Video Compression | H265/H264/H265+/H264+ |
Resolution | 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536), 1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) |
Record Rate | PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp, 1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp, 1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp |
Record Mode | Manual\Timer\Motion Detection\Smart Alarm |
Playback & Backup | |
Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps |
Decode Capability | 4CH 1080P(1920x1080)@30fps |
Remote Sync Playback | YES |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection, Event Alarm, Tag search |
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom, tag, clip |
Backup Mode | USB Device/Network |
Network | |
Interface | 1 x RJ45 (10M/100M Adaptive Ethernet Interface) |
Incoming Bandwidth | 80MB |
Network Functions | TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
Onvif Version | Support Onvif 2.8 |
Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) |
CMS Software | Support Windows 7/ Windows 8/Windows 10/MAC OS |
Cloud Support | Yes |
Smart Phone | iPhone, iPad, Android, Android Pad |
POE | / |
WIFI UI | / |
Storage | |
Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
Capacity | Up to 8TB capacity |
eSATA | / |
General | |
Language | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Japanese |
USB Interface | 2 USB 2.0 Interfaces |
RS485 | 1port |
Power Supply | DC12V 2A |
Working Environment | -10~55℃/10~90% |
Dimension(W×D×H) | 260*215*43(mm) |
Weight | 2kg(without |

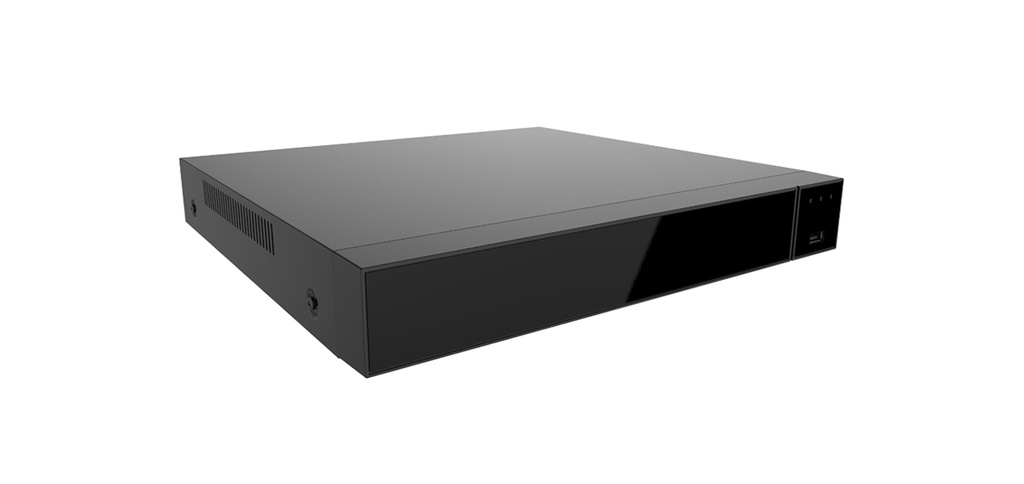

Product Outline :
