Cisco AIR-AP1815W-D-K9 Access Point

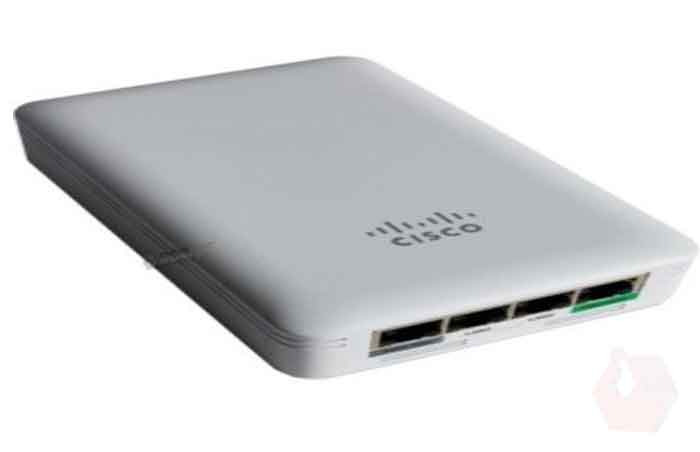

The Cisco Aironet 1815w Access Point (Figure 1) offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.

Features:

  • 802.11a/b/g/n Wireless Standards

  • 2.4 GHz / 5 GHz Dual Band

  • 3 x Gigabit Ethernet Ports

  • 1 x Gigabit Uplink Port

  • 1 x Management Console Port

  • 1 x Passive Pass-Through RJ-45 Port

  • WPA2 AES Encryption

  • Integrated Bluetooth 4.1 Connectivity

  • MU-MIMO Support

  • Multiple Mounting Options

Product  Introduction

The Cisco Aironet 1815w Access Point offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments.


Packing 802.11ac Wave 2 wireless support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of ownership.


Features

Bluetooth 4.1

Integrated Bluetooth Low-Energy (BLE) 4.1 radio for location and asset tracking (future availability).


Increased wireless performance

The 1815w access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.


Wired access

The 1815w allows wired access via a single RJ-45 10/100/1000 auto detection port. It supports full operation modes using PoE 802.3af power. The 1815w comes with three local Gigabit Ethernet ports, one uplink Gigabit Ethernet port, and one passive pass-through RJ-45 port, allowing for a variety of connections.


Mounting

This sleek access point with a small form factor is designed with flexible mounting options in mind. You can mount it directly on the wall or to numerous global wall junction standards. The access point is also easy to install.




                                Specifications

                                Model Number
                                		AIR-AP1815W-B-K9
                                Authentication and security
                                		Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
                                802.1X, RADIUS authentication, authorization and accounting (AAA)
                                802.11r
                                802.11i
                                Software
                                		Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
                                Cisco Mobility Express
                                Maximum clients
                                		Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
                                802.11ac
                                		2x2 single-user/multiuser MIMO with two spatial streams
                                Maximal ratio combining (MRC)
                                20-, 40-, and 80-MHz channels
                                PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
                                Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
                                802.11 Dynamic Frequency Selection (DFS)
                                Cyclic shift diversity (CSD) support
                                Ethernet ports Authentication with 802.1X or MAC filtered
                                		Dynamic VLAN or per port
                                Traffic locally switched or tunneled back to wireless LAN controller
                                Bluetooth (future Availability)
                                		Integrated Bluetooth 4.1 (including BLE) radio
                                Maximum transmit power: 4 dBm
                                Antenna gain: 2 dBi
                                Data rates supported
                                		802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
                                802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
                                802.11n data rates on 2.4 GHz
                                802.11ac data rates on 5 GHz
                                Integrated antennas
                                		2.4 GHz, gain 2 dBi
                                5 GHz, gain 3 dBi
                                Interfaces
                                		1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
                                Management console port (4-pin connector)
                                Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
                                PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af
                                One passive pass-through port RJ-45 (back to bottom)
                                Indicators
                                		Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
                                Dimensions (W x L x H)
                                		Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm)
                                Weight
                                		Access point without mounting bracket or any other accessories: 10 oz (280 g)
                                Environmental
                                		Operating
                                Temperature: 32° to 104°F (0° to 40°C)
                                Humidity: 10% to 90% (non-condensing)
                                Max. altitude: 9843 ft (3,000 m) @ 40°C

                                Non-operating (storage and transportation)
                                Temperature: -22° to 158°F (-30° to 70°C)
                                Humidity: 10% to 90% (non-condensing)
                                Max. altitude: 15,000 ft (4,500 m) @ 25°C
                                System
                                		1 GB DRAM
                                256 MB flash
                                710 MHz quad-core
