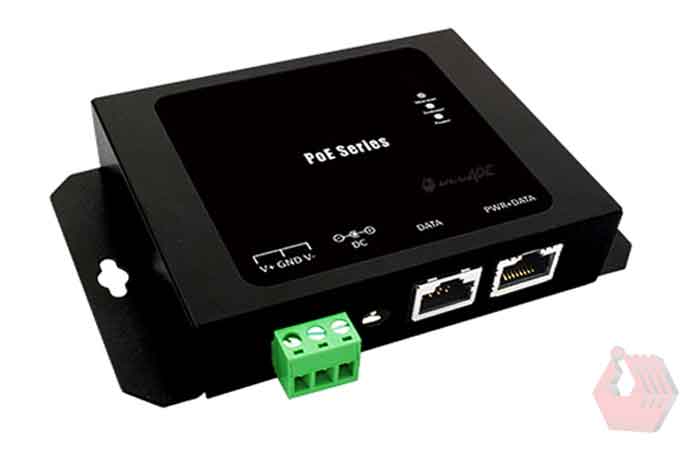

DC-POE injector POE‐DGT-30W CERIO

ERIO POE-DGT-30W is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. It greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to office and industrial environments

Features:

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3at PoE+, IEEE 802.3af PoE standards.

  • Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.

  • Auto detect PD power supply is powered by End-span (Type-A) or Mid-span (Type-B) power pin, and LED indicators shows power pin type.

  • Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 56V power supply. This power adapter supports interchangeable plug (optional), which can meet the needs of international power plug applications.

Product Introduction

CERIO POE-DGT-30W supports IEEE 802.3af/at Power Over Ethernet Standard. It’s an Active PoE Multi Gigabit PoE+ Injector supports 2 Ethernet ports and provides DC 48-57V over Ethernet cables. It provides Screw Terminal Block and DC In both Power System. User can select either one to supply power. The max. PoE output power up to 30Watt. The POE-DGT-30W can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission. It provides durable and reliable metal casing and wide temperature (-40° ~ 75° C) design, also supports wall-mounting installation, which can meet high-standard industrial environment network construction requirements



Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3at PoE+, IEEE 802.3af PoE standards.

  • Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.

  • Auto detect PD power supply is powered by End-span (Type-A) or Mid-span (Type-B) power pin, and LED indicators shows power pin type.

  • Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 56V power supply. This power adapter supports interchangeable plug (optional), which can meet the needs of international power plug applications.

  • Support PSE / POE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.

  • Provide Screw Terminal Block and DC In both Power System. User can select either one to supply power.

  • Supports -40° ~ 75° C wide temperature design which can withstand various high and low temperature environmental applications.

  • Provides a durable and reliable metal housing design.

  • Over Current Protection & Short-circuit Protection.

  • Plug-and-Play, requires no configuration.

  • Supports desktop, wall mounting installation.




 Standards & Hardware Specification

Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5G BASE-T
IEEE802.3af Power over Ethernet (PoE)
IEEE802.3at Power over Ethernet (PoE+)
Network Media
10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
2.5G/5G BASE-T : UTP Cat.5e or up
Data Transfer Rate
10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE Type
Active POE
Data PIN
PIN 1/2,3/6 & 4/5,7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B)
PIN 4/5,7/8)
Ethernet Connector
RJ-45 x1 : Data
RJ-45 x1 : Power + Data
Power Interface Output
RJ45 Active 802.3af/at PoE Out
Multi Input
DC In or Screw Terminal Block In (STB In)
ESD Protection
Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection



Environmental & Mechanical Characteristics

Max Power Output
30Watts
Power Requirement
56V 30Watt External Power Supply
Input Voltage
48 ~ 57Volt
LED SystemPower (Green) x 1
PoE
End-span (Green) , Mid-span (Green ) x 2
Operating Temperature
-40° to 75° C
Storage Temperature
-40° to 85° C
Operating Humidity
5% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing
Dimension ( W x D x H )
130 x 82 x 27mm
Weight ( g )
235g
Form Factor
Desktop/Wall mounting installation
Case of material
Metal
Certifications
FCC ,CE, RoHs compatible

Application Areas




Hardware Overview
