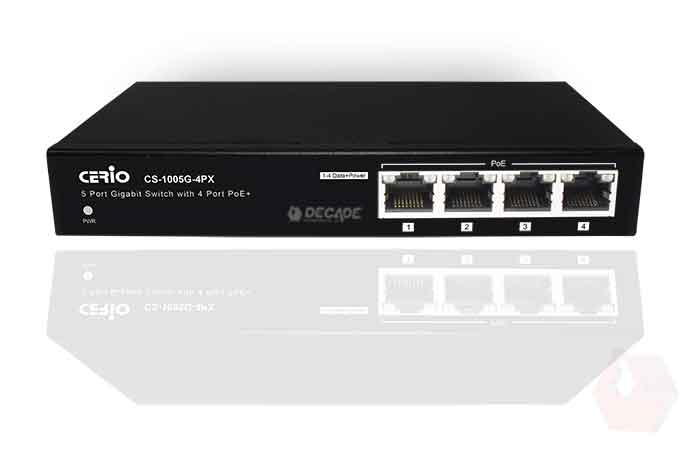

DC POE-switch normal CS-1005G-4PX CERIO

The CERIO Gigabit PoE+ Switch is a powerful and IEEE 802.3af/at Power over Ethernet which provides DC 48~57V Gigabit over Ethernet cables high-performance Gigabit Ethernet switch.

Features:

  • All Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, including PSE/ PoE+ function, complying with IEEE 802.3af/at standard

  • Supporting the power up to 30Watt/15.4Watt/ 7.5Watt/4Watt for each PSE/PoE+ port with bundle Power Adapter

  • Support Jumbo Frame 9K

  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding

  • Supports TP interface Auto MDIX function for auto TX/RX swap



Product Introduction

The CERIO Gigabit PoE+ Switch is a powerful and IEEE 802.3af/at Power over Ethernet which provides DC 48~57V Gigabit over Ethernet cables high-performance Gigabit Ethernet switch, with all ports capable of 10/100Mbps or 1000Mbps auto-negotiation operation and supports 2 or 4 or 8 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+). Allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc..




Highlight Features

  • All Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, including PSE/ PoE+ function, complying with IEEE 802.3af/at standard

  • Supporting the power up to 30Watt/15.4Watt/ 7.5Watt/4Watt for each PSE/PoE+ port with bundle Power Adapter

  • Support Jumbo Frame 9K

  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding

  • Supports TP interface Auto MDIX function for auto TX/RX swap

  • Automatic Source MAC Address Learning and Aging

  • Durable & Secure compact metal case design , Easy Installation and Made in Taiwan



Standards and Hardware Specifications

Network Standards Conformance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T,
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Port Configuration
5ports RJ-45 connectors for 10/100/1000Mbps (With 4 Ports PSE/ PoE+ function )
DIP Switch
Support 10Mbps /280m transition function for PoE ports (Per port DIP switch control)
Media Access Protocol
CSMA / CD
Network Media
10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
Transmission Method
Store and Forward
MAC Address Table
2K
Built-in Buffer
1Mb
Jumbo Frame
9K
Data Transfer Rate
10/100/1000Mbps (Half-duplex),
20/200/2000Mbps  (Full-duplex)
Auto MDI/MDIX
Yes
LED Indicators
Per Gigabit Port:(Link/Act): Status x 5
PoE
Status x 4

Per Unit
Power x 1
Internal Bus Speed
10Gbps
