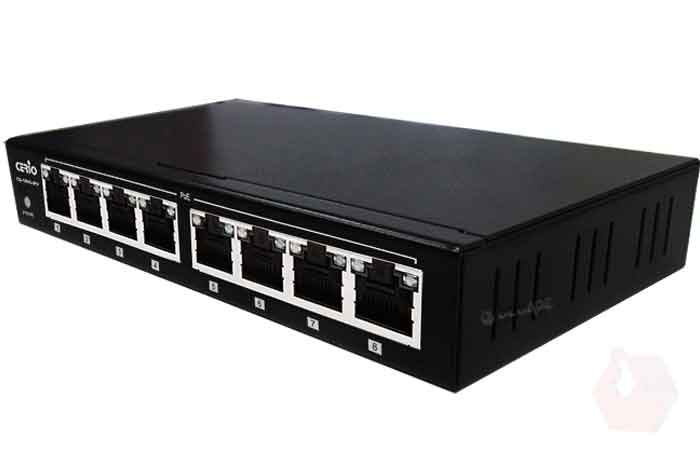

DC POE-switch normal CS-1008G-8PX CERIO

The CS-1008G-8PX supports 8 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+) allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc.

Features:

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE ,IEEE 802.3at PoE+.

  • 8 Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, including 8 Ports PSE/ PoE+ function, complying with IEEE 802.3af/at standard.

  • Supporting the power up to 30Watt/15.4Watt/7.5Watt/4Watt for each PSE/PoE+ port with bundle Power Adapter have 90Watt share for 8 PoE ports.

  • Full/Half-Duplex capability on each TX port.

  • Supports Store & Forward architecture and performs forwarding and filtering.

Product Description

Power over Ethernet standard which provides DC 48~57V Gigabit over Ethernet cables high-performance Gigabit Ethernet switch, with all 8 ports capable of 10/100Mbps or 1000Mbps auto negotiation operation which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100/1000Mbps autosensing ability provides an easy way to migrate 10Mbps to 1000Mbps network with no pain.






Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE ,IEEE 802.3at PoE+.

  • 8 Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, including 8 Ports PSE/ PoE+ function, complying with IEEE 802.3af/at standard.

  • Supporting the power up to 30Watt/15.4Watt/7.5Watt/4Watt for each PSE/PoE+ port with bundle Power Adapter have 90Watt share for 8 PoE ports.

  • Full/Half-Duplex capability on each TX port.

  • Supports Store & Forward architecture and performs forwarding and filtering.

  • Auto-learning networking configurations.

  • Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.

  • Support Jumbo Frame 9K.

  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding.

  • Supports TP interface Auto MDIX function for auto TX/RX swap.

  • Automatic Source MAC Address Learning and Aging.

  • Supports up to 4K MAC addresses.

  • Up to 1.5Mb bits buffer.

Product Applications


Standards & Hardware Specifications

Network Standards Conformance
IEEE 802.3 10Base-T,
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T,
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Port Configuration
8ports RJ-45 connectors for 10/100/1000Mbps
(With 8 Ports PSE/ PoE+ function )
Media Access Protocol
CSMA / CD
Network Media
10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
Transmission Method
Store and Forward
MAC Address Table
4K
Built-in Buffer
1.5Mb
Jumbo Frame
9K
Data Transfer Rate
10/100/1000Mbps (Half-duplex)
20/200/2000Mbps (Full-duplex)
Auto MDI/MDIX
Yes
LED Indicators
Per Gigabit Port:(Link/Act): Status x 8
PoE : Status x 8
Per Unit: Power x 1
Internal Bus Speed
16Gbps
