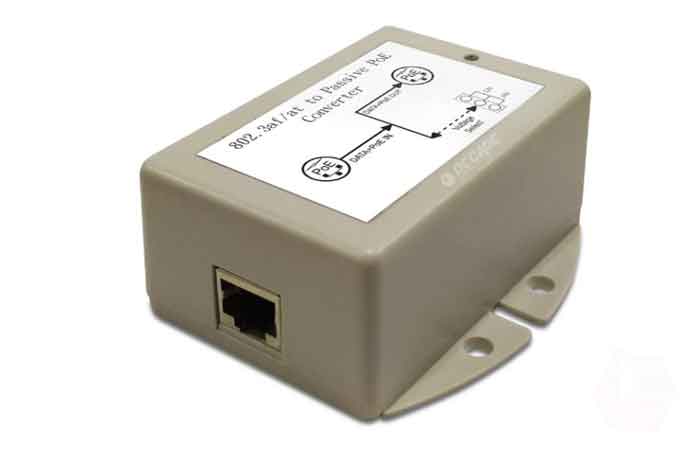

DC POE with Converter 48V DC to 12/24V switchable

12W DC/DC PoE Converter with 48V DC PoE Input and 12/24V Switchable Output Voltages

Features:

  • Convert 802.3af 48V PoE into 24V DC

  • 12W output - 12VDC 1A or 24VDC 0.5A switchable

  • Short Circuit, Over Current and Reverse/Over Voltage Protection

  • High Temperature Operation.

Usage

  • MSTronic's series of DC to DC converters are a low cost and high reliability solution for those needing to maintain power-cycling control over 12 and 24VDC devices running from a 802.3af switch (such as a Cisco PoE switch)

  • In managed networks Ubiquiti's supplied PoE injectors can be problematic for network managers needing to remotely manage the power-cycling of radios

  • The MIT-22-1224 can be used to convert 802.3af PoE supplied by the managed switch into 24V Passive PoE required by the Ubiquiti device

  • They accept data-in and PoE from a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.

                   Key Specifications/Special Features
  • INPUT :
    • Input Voltage: DC-36V to DC-60V NORMAL= -48V
    • Under Voltage Lockout: DC-30V
  • OUTPUT :
    • Output voltage and current: +12V / +24V
    • Max load: 1.0A / 0.5A
    • Power: 12W maximum
    • Minimum load: 0A
    • Load regular percentage: 5%
    • Line regular percentage: 1%
    • Ripple percentage: 2%
    • Noise percentage: 5%
    • Total power: 12W
    • Ripple & Noise bandwidth is from DC to 20Mhz.
    • Terminated With a 47uF Capacitor and 0.1uf MPE Capacitor of Proper Polarity.
  • Efficiency: 78% min @-48Vin dc
                   Key Specifications/Special Features
  • Protection:
    • Short Circuit Protection
    • Output Short GND Terminal will not damage the Power Supply and will Auto-Reset
    • Mode is current limits (IO(lim) = io*1.5 max)
    • Operation frequency is 100KHZ
    • Isolation Voltage : 1500Vdc
    • Isolation Resistance :100M ohms (min)
    • Input Set class Resistance : 25K ohms
    • Maximum Capacitive Load : 470UF (24V = 100UF)
  • General description
    • Operating temperature: -25 to 60 degree Celsius
    • Storage temperature: -40 to 85 degree Celsius
    • Operating humidity: 5% - 90%
    • Free air cooling
    • Dimensions: 85*55*36 (L*W*H)m/m
    • EMI: Meet FCC Class B standard, Meet EN55022 Class B standard
    • 802.3af compliant, Mode A or Mode B input are all available.
    • Non-isolated I/O
    • Low-battery protection
    • RJ-45 input (data and power) and RJ-45 output (data and power)
