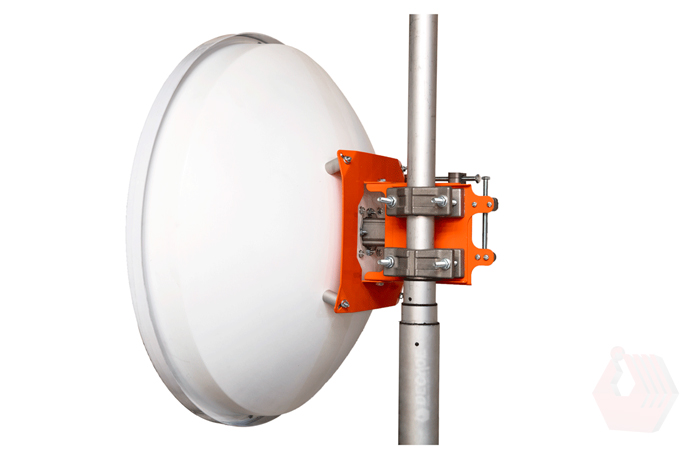

Dish Antenna 32 dBi Qomuniq8 QAD 0532-90SD

Solid Dish antenna 3 feet (90 cm) with 32 dBi gain at 4.9-6.1 GHz band , mounting kit included - 2 pack in one pack.

 High Performance Solid Dish antenna 90 cm (3 feet) with 32 dBi gain at 4.9 to 6.1 GHz band. The shroud reduces side lobes and improves performance in noisy areas. Heavy duty mounting kit with precision alignment features is included.

QAD0532-90 SD HP has cylindrical shroud and provides reduction in gain of side lobes (less than 2 dBi) ensuring high performance and link throughput by eliminating the effect of existing links in the angles other than main lobe.

Directional Antenna, 4.8 to 6.1 GHz, 32 dBi, 90 cm, (3 feet) Solid Dish

QAD0532-90 SD HP has cylindrical shroud and provides

reduction in gain of side lobes (less than 2 dBi) ensuring

high performance and link throughput by eliminating the

effect of existing links in the angles other than main lobe.

QAD0532-90 SD HP has cylindrical shroud and provides

reduction in gain of side lobes (less than 2 dBi) ensuring

high performance and link throughput by eliminating the

effect of existing links in the angles other than main lobe.

Heavy duty mounting kit with precision alignment features is included.


Features:

  • Solid Dish antenna 90 cm (3 feet).

  • Brand : Qomuniq8.

  • Qty : 2.

  • Input/output Dual N-Type.

  • Gain: 32 dBi.

  • Frequency range: 4.9 – 6.1 GHz.

  • Net Package weight: 32kg (70.55 lbs.).

  • Net Package dimensions : 40x95x95cm.

  • Compatible with UBNT , MikrTik , MIMOSA , Netronics ,

  • Redline , InfiNet , Cambium & all the other RF Radios.

  • Side lobe level: 2 dBi.

  • Front to back ratio: 48 dB.


  • Beamwidth-3 dB: 4°.

  • Polarization: Dual linear V and H.

  • Cross Polarization: 35 dB.

  • VSWR: 1.4:1.

  • Port to Port Isolation: 32 dB (Max) 45 dB (Typical).

  • Parabola material : Aluminum Alloy.

  • Depth : 33.1 cm.

  • Radome material : UV resistant plastic ABS.

  • Mast size allowed 25 - 60 mm.

  • Operational wind load 130 km/h (87 mph).

  • Survival wind load 200 km/h (130 mph).

  • Antenna weight 5.1 Kg (11.2 lbs.).

  • Mounting Kit weight 2.5 Kg (5.51 lbs.).

Radio Specifications

Frequency range
4.8 – 6.1 GHz
Gain
32.0 ± 0.5 dBi
Side lobe level
2 dBi
Front to back ratio
48 dB
Beamwidth-3 dB

Polarization
Dual linear V and H
Cross Polarization
35 dB
VSWR
1.4:1
Port to Port Isolation
45 dB

Mechanical  Specifications

Parabola material
Aluminum Alloy
Size
90.0 cm (3 ‘)
Depth
33.1 cm
Radome material
UV resistant plastic ABS
Input/output
Dual N-Type
Mast size allowed
25 - 60 mm
Operational wind load
130 km/h (87 mph)
Survival wind load
200 km/h (130 mph)
Antenna weight
5.1 Kg (11.2 lbs.)
Mounting Kit weight
2.5 Kg (5.51 lbs.)
Pack options
2 pack / 6 pack

The antenna is supplied together with a bracket that allows easy mounting on a mast. Bracket can be installed separately on the mast. It come with a versatile bracket which allows precise adjustment in both directions. Whole antenna system has extreme wind stability.




Radiation Patterns:
