Dish Antenna 33 dBi Qomuniq8 QAD 0533 - 90 SD
Satellite Communication
High Quality Solid Dish 3 feet (30CM) antenna with 31 dBi Gain at 4.9-6.1GHz Wide frequency range, affordable price, a perfect choice for establishing long range links, heavy duty mounting kit with precision fine tuning RF Interface: N Type Female, Made in Hungary
- Solid Dish antenna
- 90 cm (3 feet)
- 33 dBi gain
- 4.8 to 6.1 GHz band
Directional Antenna, 4.8 to 6.1 GHz, 33 dBi,90 cm, (3 feet) Solid Dish
Solid Dish antenna 90 cm (3 feet) with 33 dBi gain at 4.8 to 6.1 GHz band.
QAD0533-90 SD combines wide frequency range and high gain and provides a perfect choice for establishing long range links at an affordable cost.
Heavy duty mounting kit with precision alignment features is included.
Radio Specifications
| Frequency range | 4.8 – 6.1 GHz |
| Gain | 33 dBi |
| Side lobe level | ETSI EN 3-302-326 DN-1DN5 |
| Front to back ratio | 44.6 dB |
| Beamwidth-3 dB | 3.2° |
| Polarization | Dual linear V and H |
| Cross Polarization | 28 dB (Max) 35 dB (Typical) |
| VSWR | 1.4:1 |
| Port to Port Isolation | 32 dB (Max) 45 dB (Typical) |
Mechanical Specifications
| Parabola material | Aluminum Alloy |
| Size | 90.0 cm (3 ‘) |
| Depth | 24.8 cm |
| Input/output | Dual N-Type |
| Mast size allowed | 25 - 60 mm |
| Operational wind load | 125 km/h (78 mph) |
| Survival wind load | 180 km/h (111 mph) |
| Antenna weight | 5.0 Kg (11.0 lbs.) |
| Mounting Kit weight | 4.5 Kg (9.9 lbs.) |
| Pack options | 2 pack / 12 Pack |

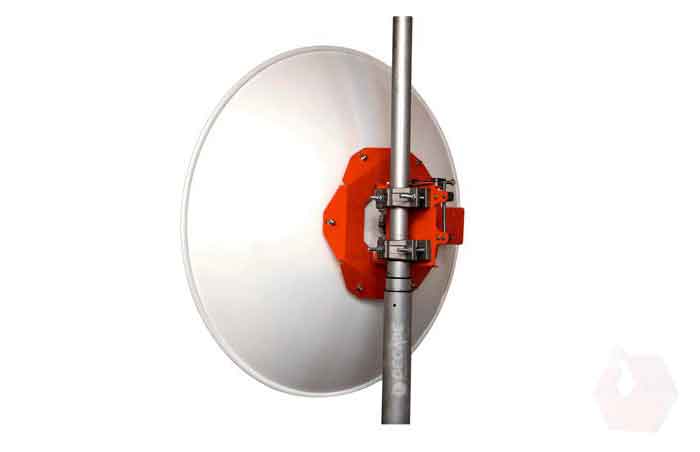

The antenna is supplied together with a bracket that allows easy mounting on a mast. Bracket can be installed separately on the mast. It come with a versatile bracket which allows precise adjustment in both directions. Whole antenna system has extreme wind stability.
Radiation Patterns:
