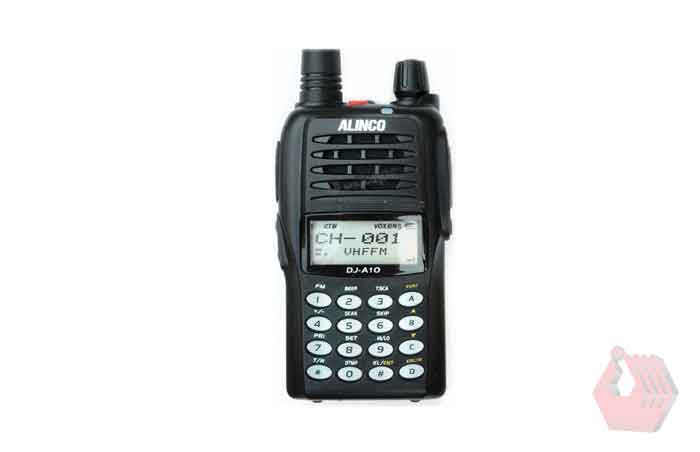

DJ-A10 Transreceiver ALINCO VHF

These VHF/UHF handheld transceivers pack a lot of performance into a MIL-spec rugged polycarbonate bodies. Designed to resist splash and dust, the DJ-A10features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO.

Features:

  • 128 channels to program operating parameters via PC utility software

  • Channel, Name tag and VFO (Frequency) display modes selectable

  • Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna

  • Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weighs approx.227g or 8.01oz inclusive of battery pack and antenna

Introduction

These VHF/UHF handheld transceivers pack a lot of performance into a MIL-spec rugged polycarbonate bodies. Designed to resist splash and dust, the DJ-A10 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating at 5W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO; keep in touch for retails, construction, factory, warehouse, in a theme-park, shoping mall, exhibition hall, hotel…where you need reliable communications for business, the DJ-A10/A40 is a cost effective alternative to a mobile/cell phone!





Features:

  • 128 channels to program operating parameters via PC utility software

  • Channel, Name tag and VFO (Frequency) display modes selectable

  • Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna

  • Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weighs approx.227g or 8.01oz inclusive of battery pack and antenna

  • 3 types of Scan functions (VFO/Memory channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones

  • Backlit, Dot Matrix LCD screen with alphanumeric name tag

  • Microphone and speaker ports

  • Includes FM radio receiver, Internal VOX, Voice prompt in English, Remote-Kill/Stun/Revive, Analog scrambling, Voice compander, Narrow FM,

  • Repeater-reverse, Auto-Power-off, Busy-Channel Lockout, Time-Out-Timer and more and more at No extra cost

 Specifications

Frequency coverage
[DJ-A10] 136-174MHz
[DJ-A40] 400-470MHz
Mode
F3E(16K0F3E / 11K0F3E / RX only WFM)
Programmable channels
128 channels
Frequency stability
±2.5ppm
Power supply requirement
7.4V DC±20% (negative ground)
Current drain (Approx.)
1400mA TX / 300mA receive at Max audio output / 70 mA squelched
Usable temperature range
-20~ +55℃(-4~131°F)
Dimensions (Projections not included/approx.)
59.0W×98.0H×35.0D mm or 2.32W×3.86H×1.38D inches
Weight
approx.227g or 8.01oz inclusive of battery pack and antenna







Transmitter (ETSI EN300 086 compliant)

Output power
Approx. [A10] 5 / 2 / 0.5W [A40] 4 / 2 / 0.5W
Modulation system
Variable reactance FM
Spurious emissions
Less than -36dBm
Max. frequency deviation
±5kHz / ±2.5kHz

Receiver (ETSI EN300 086 compliant)

Receive system
Double conversion superheterodyne
Intermediate frequencies
[A10] 38.85MHz / [A40] 26.45MHz
Sensitivity(12dB SINAD Wide/Narrow)
-12dBμ or better
(0.25μV/0.35μV) or better
Selectivity
-6dB : Wide 12kHz /Narrow 10kHz or more
 -60dB : Wide 30kHz / Narrow 24kHz or less
Audio output power
1000mW(10% distortion)
