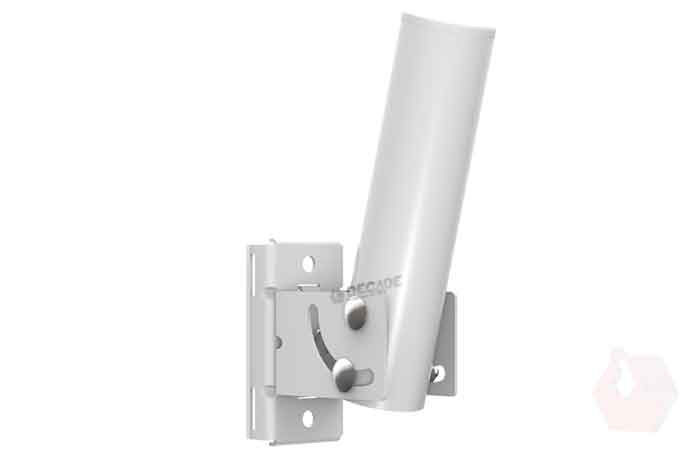

FlexiMount XL

The FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180º

Features:

  • Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMount XL is able to be mounted in any orientation

  • Mimosa’s FlexiMounts XL comes preassembled, right out out the box, it’s ready for any backhaul, access point, or radio to be attached to it

  • The FlexiMount XL includes two (2) convenient mounting screw hole points, allowing mounting to any vertical, sloped or horizontal surface

Product Introduction

The FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180º. Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation. Mimosa’s FlexiMounts come pre-assembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.




Features:

  • Weight: 0.60 kg (21.3 oz)

  • Mounting Base: 45mm (1.77“) x 127mm (5.0“)

  • Pole Length: 190mm (7.5“)

  • Pole Outside Diameter: 38mm (1.5“)

  • Articulation Angle: 180°

  • Mounting Options: Pole mount with two pipe clamp, or surface mount with two screw hole points

  • Assembly: Pre-assembled with a white powder coated finish; Mounting screws and pipe/hose clamps not included

  • Recommended For: C5x + N5-X25 antenna

Compatible with C5x + N5-X25 antenna

Flexible

Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation.

Ready-to-Use

Mimosa’s FlexiMounts come preassembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.

Vertical Poles

The FlexiMounts come assembled, ready for vertical pole configurations, using the indicated pipe clamp slots in the diagram above.

Angled and Flat Poles

The FlexiMounts can be mounted in any orientation on angled and flat poles. To pivot the articulation direction, rotate the mounting base to the desired orientation.

Flat Surfaces

The FlexiMounts include two (2) convenient mounting screw hole points, allowing mounting to any vertical, sloped or horizontal surface.

Specifications

Weight
0.60 kg (21.3 oz)
Mounting Base
45 mm (1.77“) x 127 mm (5.0“)
Pole Length
190 mm (7.5“)
Pole Outside Diameter
38 mm (1.5“)
Articulation Angle
180º
Mounting Options
Pole mount with two pipe clamp, or surface mount with two screw hole points
Assembly
Pre-assembled with a white powder coated finish; Mounting screws and pipe/hose clamps not included
Recommended For
C5x + N5-X25 antenna
