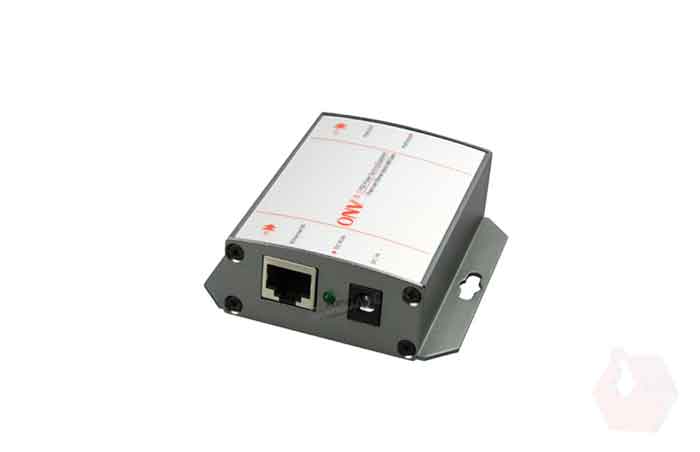

Gigabit single port PoE injector 60W ONV-PSE3401G

Single port gigabit ultra-high power PoE injector support bt POE, and is backward compatible with IEEE802.3af/at standard POE. Single-port PoE power is 60W, the maximum PoE output power of the device is 65W. The uplink RJ45 port support PoE output and the downlink RJ45 port supports network connection. supporting desktop and wall-mounted installation.

 ONV-PSE3401G is an ultra-high power PoE injector independently developed by ONV. It has a 1*10/100/1000M RJ45 port, supports IEEE802.3bt ultra-high power, single port PoE power up to 60W, and the maximum PoE output power is 65W.



Product Introduction

ONV-PSE3401G is an ultra-high power PoE injector independently developed by ONV. It has a 1*10/100/1000M RJ45 port, supports IEEE802.3bt ultra-high power, single port PoE power up to 60W, and the maximum PoE output power is 65W. and It is backward compatible with the IEEE802.3af/at PoE standard. As a PoE power supply device, it can automatically detect and identify the power receiving device that meets the standard and supply power to it through the network cable. It can supply power to POE terminal equipment such as wireless AP, network camera, VoIP, video door intercom, etc. through the network cable, to meet the network environment that requires high-density PoE power supply, suitable for hotels, campuses, parks, attractions, supermarkets, and factories Dormitories and small and medium-sized enterprises form a cost-effective network.

With this models, plug-and-play, no configuration, simple and convenient to use; PoE injector provides simple, economic, high-performance, intelligent Ethernet PoE power supply and data communication solutions. It is easy to use, easy to install, superior in performance, and cost-effective. It is an ideal choice for customers to improve project quality. It can expand the traditional power line network, reduce the use of power lines, and effectively reduce the construction cost and maintenance cost of the project under the condition that the power supply cannot be provided at the remote end.









FEATURE

Smart PoE power supply function

  • 1*10/100/1000Base-T RJ45 port supports bt PoE, meeting the needs of ultra-high power PoE power supply in various scenarios.

  • The maximum output power of single-port POE is 60W, and backward compatible with the IEEE802.3af/at PoE standard. It automatically recognizes PoE devices for power supply without damaging non-PoE devices.

Stable and reliable

  • CCC,CE, FCC, RoHS.

  • Support desktop and wall-mounted installation.

  •  Plug and play, no configuration, simple and convenient.

  • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

  • The user-friendly panel can show the device status through the LED indicator of PWR, PoE.

  •  Low power consumption, silent fan active heat dissipation design, metal casing to ensure stable operation of the equipment.

1 in 1 out of the Ethernet port arrangement, easy to connect

  • Using 1 in 1 out (down in and up out) connection mode, 1*10/100/1000Mbps RJ45 port, convenient connection, and simple maintenance.

  • Support non-blocking wire-speed forwarding.

Dimension


General Specifications

ModelONV-PSE3401G
Description
Single port gigabit ultra-high power PoE injector support bt POE, and is backward compatible with IEEE802.3af/at standard POE. Single-port PoE power is 60W, the maximum PoE output power of the device is 65W. The uplink RJ45 port support PoE output and the downlink RJ45 port supports network connection. supporting desktop and wall-mounted installation.
Power Supply
65W

Whats in the box?
Single port gigabit ultra-high power PoE injector
1 SET
User Guide
1 PC
Warranty Card
1 PC
