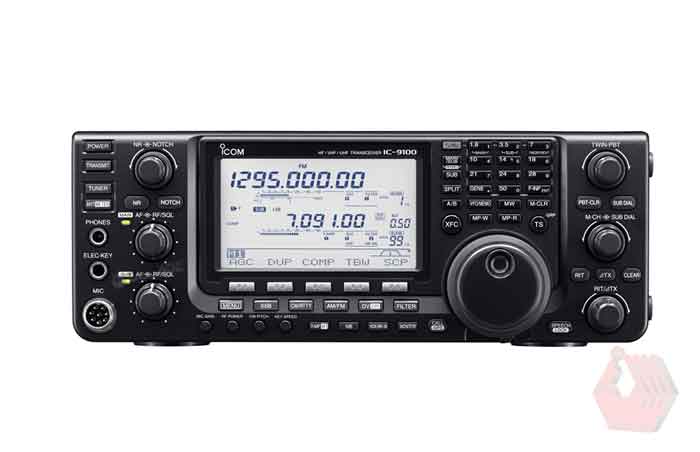

IC-9100 ICOM all Band Transreceiver

The IC-9100 contains years of advanced Icom technology in a compact, all-in-one HF/VHF/UHF transceiver. This radio covers most ham bands and modes, and provides a wide variety of operating styles. Whether you're working DX QSO, RTTY, D-STAR DV, satellite or even moonbounce.

Features:

  • HF to 1200MHz multi-band in one transceiver (optional UX-9100 required)

  • Independent dual receivers

  • Satellite mode operation

  • RTTY demodulator and decoder

  • Ample CW functions

  • Double conversion superheterodyne

Introduction

The IC-9100 all-in-one HF/VHF/UHF transceiver covers not only HF, 6M, 2M, 70cm and 23cm Amateur radio bands, but also a variety of operating modes including SSB, CW, AM and FM. It also features dual band simultaneous reception, satellite mode operation and RTTY decode on the display.

One of the most exciting features of this model is that it is capable of D-STAR (Digital Smart Technology for Amateur Radio) DV (Digital voice) mode operation above the 10M band. The D-STAR DV mode allows simplex, repeater, Internet linking between repeaters, operation with low speed data messaging, GPS position reporting and other data communications capability.

Icom has also engineered into this advanced model a combination of its IF DSP and double conversion system technology providing performance comparable to Icom’s range of high tier HF/6M transceivers.






Features:

  • Dual reception

  • High Performance DSP

  • Excellent selectivity

  • High output power

  • High audio quality

  • Satellite communications

  • Very fast ATU and improved stability in HF

  • 4 memories digital Keyer

  • GPS

  • 1200 MHz extension available

  • User manual available both in English and French


Specifications

Brand
ICOM
Manufacturer's Part Number
IC-9100
Part Type
Base Transceivers
Product Line
ICOM IC-9100 HF/VHF/UHF Transceivers
DXE Part Number
ICO-IC-9100
UPC
0731797009289
FCC License Required to Transmit
Yes
Internal HF Antenna Tuner
Yes
Receive Range 1
0.030-60.000 MHz
Receive Range 2
136.000-174.000 MHz
Receive Range 3
420.000-480.000 MHz
Receive Range
1,240.000-1,320.000 MHz
Receive System
Dual receiver
Dual Watch
Yes
Roofing Filter Capability
Yes
Roofing Filter Bandwidth
15/6/3kHz
Third Order Intercept (IP3)
Over 30 dBm
Transceiver Power Supply
External, not included
Transceiver Input Voltage
13.8 Vdc
Transceiver Maximum Current
24.0 A
Antenna Ports
5
Dedicated Receive Antenna Input
Yes
Computer Connection Type
USB or CI-V interface
Digital Mode Audio Input/Output
USB, 6-pin mini-DIN, or 13-pin DIN
External Display Capability
No
Voice Synthesizer Capability
Yes
Hand Microphone Included
Yes
Radio Width
12.406 in.
Radio Height
4.563 in.
Radio Depth
13.500 in.
Weight
24.200 lbs.
