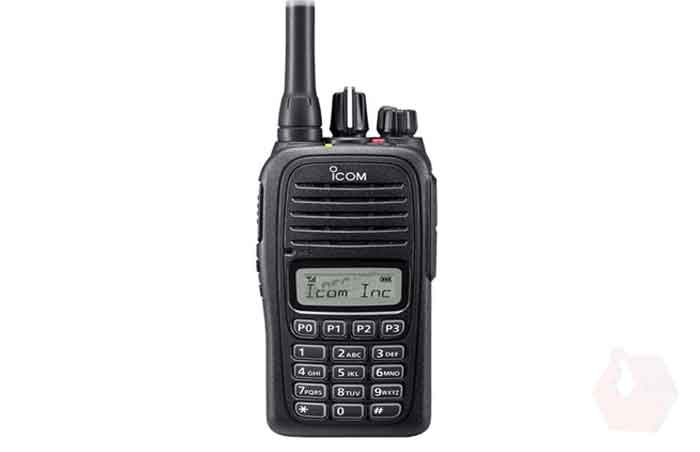

IC-F1000T Transreceiver ICOM VHF

Icom has released three different VHF radios in this series, with the IC-F1000T positioned at the top of the range. It is a capable two way radio with LCD display, and it also has a full keypad, including numerical buttons and program keys.

Features:

  • Compact size Icom 16 Channels for IC-F1000

  • 128 Channels for IC-F1000TS/T

  • IP67 Waterproof and dust-tight protection

  • Enhanced Emergency with built-in motion sensor

  • Easy to hear in noising environment

  • inversion voice scrambler

  • 14 hours of operating time with supplied waterproof battery (with BP279)

  • Quiet stand-by mode with built in 2-tone, 5-tone


    Product Introduction

    Icom has released three different VHF radios in this series, with the IC-F1000T positioned at the top of the range. It is a capable two way radio with LCD display, and it also has a full keypad, including numerical buttons and program keys.

    Thanks to its IP67 rating, this two way radio is completely dustproof. It resists damage from water, powdered dust, mud and even complete submersion in water, up to depths of 1 metre, and durations of 30 minutes. Its large 3.6cm speaker provides superb audio clarity, and the optional quiet mode allows it to be used in practically any location.



    Features:

    •  128 Channels for IC-F1000T

    • IP67 Waterproof and dust-tight protection

    • Enhanced Emergency with built-in motion sensor

    • Easy to hear in noising environment

    • inversion voice scrambler

    • 14 hours of operating time with supplied waterproof battery (with BP279)

    • Quiet stand-by mode with built in 2-tone, 5-tone

    • CTCSS and DTCS Icom

    • MDC 1200 compatible

    • Channel announcement

    • 8 DTMF autodial memories

    • "Shift key” function increases number of programmable key assignments


    Specifications

    Frequency coverage
    136–174 MHz
    Number of channels
    128 channels/ 8 zones
    Type of emission
    16K0F3E*/11K0F3E (USA/EXP)
    16K0F3E/14K0F3E/8K50F3E (EUR)
    Power supply requirement
    7.5V DC nominal
    Current drain(approx.)
    Tx     1.3A
    Rx     500 mA /77 mA
    Antenna impedance
    50Ω
    Operating temperature range(Radio specification)
    –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)
    –25°C to +55°C (Radio specifi cation)(EUR)
    Dimensions(W × H × D; Projections not included)
    52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)
    Weight (approx.)
    240 g; 8.5 oz (With BP-279)
    Transmitter
    Output power(Hi, L2, L1)
    5 W, 2 W, 1 W
    Maximum frequency deviation
    ± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
    Spurious emissions
    70 dB minimum (USA/EXP)
    0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
    Frequency stability
    ±2.5ppm
    Audio harmonic distortion
    1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz)   (at AF 1 kHz 40% deviation)
    FM Hum and Noise(without CCITT filter)
    46 dB typical (25 kHz), 40 dB typical (12.5 kHz)(USA/EXP)
    Residual modulations(with CCITT filter)
    50 dB typical (25 kHz), 47 dB typical (20 kHz), 44 dB typical (12.5 kHz) (EUR)
    External microphone connector
    3-conductor 2.5 (d) mm (1/10)/2.2 kΩ

    Receiver
    Sensitivity

    (at 12dB SINAD)  0.25μV typical
    (at 20dB SINAD)   –4 dBμV typical emf

    Adjacent channel selectivity

    76 dB typical (25 kHz), 53 dB typical (12.5 kHz) (TIA-603D)

    78 dB typical (25 kHz) 71 dB typical (12.5 kHz) (TIA-603A)

    76 dB typ. (25 kHz) , 72 dB typ. (20 kHz),53 dB typ. (12.5 kHz)EUR)

    Spurious response rejection
    70dB minimum
    Intermodulation rejection

    74 dB typical (USA/EXP)
    68 dB typical (EUR)

    Hum and noise (With CCITT filter)

     51 dB typical (25 kHz),45 dB typical (12.5 kHz) (USA/EXP)

    Hum and noise(Without CCITT filter)

     52 dB typical (25 kHz), 49 dB typical (20 kHz), 46 dB typical (12.5 kHz) (EUR)

    AF output power(at 5% distortion)
    Internal SP    1500 mW typical (With 8Ω load)
    External SP   400 mW typical (With 8Ω load)

    External speaker connector

    2-conductor 3.5 (d) mm (1⁄8)/8 Ω




    What is in the box?

    • IC-F1000T

    • Battery pack, BP-279

    • Desktop charger, BC-213

    • AC adapter, BC-123S

    • Belt clip, MB-133

    •  Antenna
