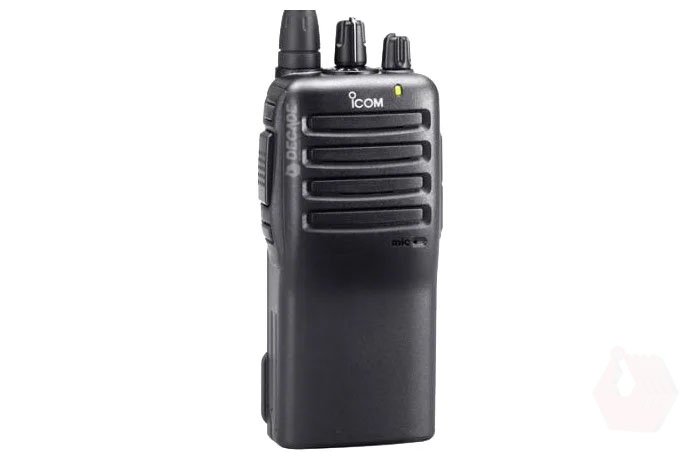

IC-F16 Transreceiver ICOM VHF

The IC-F16/S series is built around an aluminum die-cast chassis and covered with tough polycarbonate casing. This radio is built to last.
  • Tough and reliable construction

  • Simple operation

  • Wide range frequency coverage

  • Lithium-ion battery standard

  • Built-in CTCSS and DTCS

  • Multiple 2-Tone, Multiple 5-Tone

  • Optional voice scrambler, man down and DTMF decoder units

Introduction

The IC-F16/S series shows Icom’s new direction in LMR radio design. Simple operation for everyone but a powerful and reliable tool for your daily business. Its very durable construction is resistant to shock and vibration. The dual rail guide design securely locks the battery pack to the radio. Wide range frequency coverage, Li-Ion battery pack, loud and clear audio, built-in signaling and option unit connector combined with Icom grade electrical performance, the IC-F16/S series will easily exceed your expectations.


Features Highlights

Tough and reliable construction

The IC-F16/S series is built around an aluminum die-cast chassis and covered with tough polycarbonate casing. This radio is built to last. Its dual slide rail securely locks the battery to the radio. The battery terminal is covered with a noncorrosive rubber packing. The belt clip is clamped between the radio and the battery, making it nearly impossible to knock loose.

 Simple operation

Having only 3 buttons, volume and channel knobs, the IC-F16/S series does not require special training to use. Positive button action for sure operation even when wearing gloves, allows you to get down to the business of communicating without fuss.

Wide frequency coverage

The IC-F16/S series covers a wide frequency range with one version (136–174, 400–470MHz). Wide and narrow channel spacing (25, 12.5kHz) is programmable per channel.

Long use even in extreme cold

 Supplied 2300mAh (typ.) Li-Ion battery pack, BP-232H has superior electrochemical characteristics even in extremely cold areas (0˚C to –30˚C). It provides stable output for longer while having less voltage reduction at low temperatures.

Optional board

The IC-F16/S series has an expansion socket for adding an optional board. Voice scrambler, man down and DTMF decoder features are available, depending on the installed board.

 Most popular signaling built-in

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet standby when others are talking.

Multiple 2-Tone, Multiple 5-Tone

Adapt these three columns to fit your design need. To duplicate, delete or move columns, select the column and use the top icons to perform your action.

  • Beep sound

  • Answer back

  • Stun

  • LED blink

  • Scan

Other Features

  • MDC PTT ID and MDC emergency call functions are available (Transmit only)

  • LED low battery alert

  • TOT function and lock out penalty timer

  • 2 step power saver

  • Normal and priority scan

  • 500mW loud and clear audio

  • Optional VOX headset

  • PC programming capability

  • Embedded ESN (Electronic serial number)

Specifications

General

Frequency range
IC-F16/IC-F16S
IC-F26/IC-F26S

136–174MHz
400–470MHz
Number of channels
16 (IC-F16, IC-F26)4 (Max., IC-F16S, IC-F26S)
Channel spacing
12.5kHz/25kHz
PLL channel step
2.5kHz, 3.125kHz (VHF)5kHz, 6.25kHz (UHF)
Power supply requirement
7.2V DC
Current drain (at 7.2V DC; approx.)
Transmit VHF (5W)
UHF (4W)
Receive stand-by rated output
1.5A

1.6A
70mA
300mA
Antenna impedance
50Ω
Usable temperature range
–30˚C to +60˚C
Dimensions (with BP-232H)(projections are not included)
53 (W) ×120 (H) ×42.4 (D) mm
Weight
296g (approx. with BP-232H)


TRANSMITTER

Output power
5W (VHF), 4W (UHF)
Max. frequency deviation
±5kHz (Wide)
±5kHz (Wide)
Frequency error
±2.5ppm
Spurious emissions
80dB typ.
Adjacent channel power
VHF
UHF

80/70dB typ. (Wide/narrow)
75/68dB typ. (Wide/narrow)

FM Hum and Noise
46dB typ. (Wide)
40dB typ. (Narrow)
Audio harmonic distortion
3% typ. (AF 1kHz, 40% deviation)
Modulation limiting
60–100% of max. deviation
External microphone connector
3-conductor 2.5 (d) mm /2.2kΩ
RECEIVER
Sensitivity
0.25μV typ. (at 12dB SINAD)
Squelch sensitivity
0.25μV typ. (at threshold)
Adjacent channel selectivity
75dB typ. (Wide)
65dB typ. (Narrow)
Spurious response
70dB
Intermodulation
74dB typ
Hum and noise ratio
50dB typ. (Wide)
45dB typ. (Narrow)
Audio output power
500mW typ.
(at 5% distortion with an 8Ω load)
External speaker connector
2-conductor 3.5 (d) mm/8Ω

Standard

MIL 810F

Method

Procedure

Low Pressure

500.4

I, II

High Temperature

501.4

I, II

Low Temperature

502.4

I, II

Temperature Shock

503.4

I

Solar Radiation

505.4

I

Rain Blowing/Drip

506.4

I, III

Humidity

507.4

-

Salt Fog

509.4

-

Dust Blowing

510.4

I

Vibration

514.4

I

Shock

516.4

I, IV
