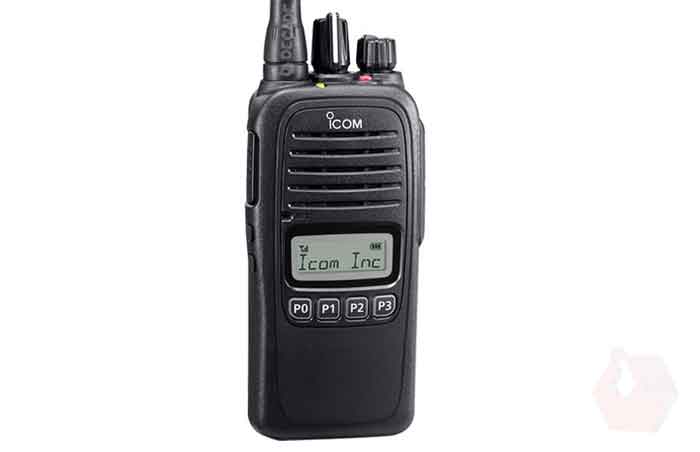

IC-F2000S Transreceiver ICOM UHF

UHF hand Set, 5Watt, waterproof durable design (IP67 and MIL-STD-810-G), Military Standard, 14 Hours of Operating Time, 128 channel capacity with eight zones , Man down and lone worker , Channel announcement, speaker for 1500 mW powerful audio Compact, Enhanced emergency safety with built-in motion/stationary detection sensor, Made In Japan

Features:

  • Waterproof for 30 minutes at one meter depth

  • Enhanced emergency safety with built-in motion/stationary detection sensor

  • 128 channel capacity with eight zones (Simple type and ten-key type)

  • Built-in 2-Tone, 5-Tone, CTCSS and DTCS

  • MDC and BIIS compatible

  • 16-code inversion voice scrambler

  • Man down and lone worker functions

  • Channel announcement

  • Up to 14 hours of operating time with supplied BP-279 battery

Specifications

Frequency coverage
400–470 MHz (ALL)
450–512 MHz (USA)
450–520 MHz (EXP)
Number of channels
128 channels/ 8 zones
Type of emission
16K0F3E*/11K0F3E (USA/EXP)
16K0F3E/14K0F3E/8K50F3E (EUR)
Power supply requirement
7.5V DC nominal
Current drain(approx.)
Tx       1.3A
Rx      500 mA /80 mA(Max. audio (internal SP)/Standby)
Antenna impedance
50Ω
Operating temperature range(Radio specification)
–30°C to +60°C; –22°F to +140°F (Radio specification)(USA/EXP)
–25°C to +55°C (Radio specification)(EUR)
Dimensions(W × H × D; Projections not included)
52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)
Weight (approx.)
240 g; 8.5 oz (With BP-279)

Transmitter

Output power(Hi, L2, L1)
4 W, 2 W, 1 W
Maximum frequency deviation
± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
Spurious emissions
70 dB minimum (USA/EXP)
0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
Frequency stability
±2.5ppm
Audio harmonic distortion
1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz)(at AF 1 kHz 40% deviation)
FM Hum and Noise(without CCITT filter)
46 dB typical (25 kHz), 40 dB typical (12.5 kHz)(USA/EXP)
Residual modulations(with CCITT filter)
53 dB typical (25 kHz),
51 dB typical (20 kHz),
48 dB typical (12.5 kHz)(EUR)
External microphone connector
3-conductor 2.5 (d) mm (1/10)/2.2 kΩ


Receiver

Sensitivity
(at 12dB SINAD) 0.25μV typical
(at 20dB SINAD) –4 dBμV typical emf
Adjacent channel selectivity
73 dB typical (25 kHz),56 dB typical (12.5 kHz)(TIA-603D)
74 dB typical (25 kHz),64 dB typical (12.5 kHz)(TIA-603A)

73 dB typ. (25 kHz),
73 dB typ. (20 kHz),
56 dB typ. (12.5 kHz)(EUR)
Spurious response rejection
70dB minimum
Intermodulation rejection
73 dB typical (USA/EXP)
67 dB typical (EUR)
Hum and noise(With CCITT filter)
49 dB typical (25 kHz),
43 dB typical (12.5 kHz) (USA/EXP)
Hum and noise(Without CCITT filter)
52 dB typical (25 kHz),
50 dB typical (20 kHz),
47 dB typical (12.5 kHz)(EUR)
AF output power(at 5% distortion)
Internal SP    1500 mW typical (With 8Ω load)
External SP   400 mW typical (With 8Ω load)
External speaker connector
2-conductor 3.5 (d) mm (1⁄8)/8 Ω
