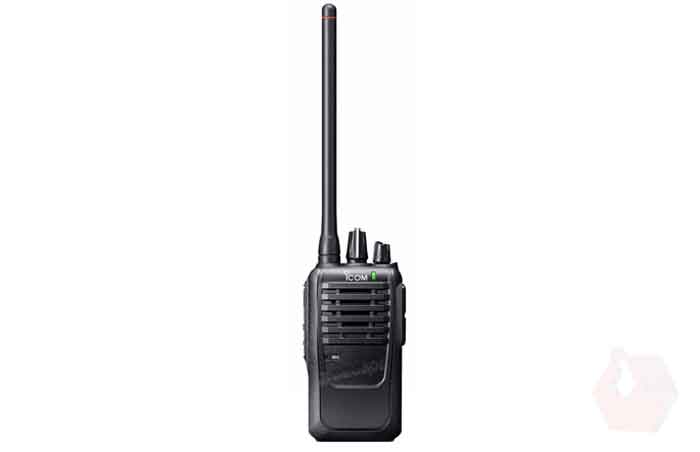

IC-F3002 Transreceiver ICOM VHF

The IC-F3002 series of entry-level hand-portable radios offer simple operation, outstanding audio, high performance, and strong commercial build. The IC-F3002 (16 channel) for VHF is ideal for a wide range of business and industry sectors that are searching for a simple yet dependable communication solution.

Features:

  • Internal VOX capability for hands-free operation

  • Longer operating time

  • Simple operation for instant communication

  • Easy to hear in noisy areas

  • Weather resistant, dust protection, military rugged

  • Scan features

  • Selective calling, quiet stand-by and more


Introduction

The IC-F3002 series of entry-level hand-portable radios offer simple operation, outstanding audio, high performance, and strong commercial build. The IC-F3002 (16 channel) for VHF is ideal for a wide range of business and industry sectors that are searching for a simple yet dependable communication solution.





Features:

  • Easy to hear in noisy environments

  • Low consumption for longer operating time

  • Simple operation for instant communication

  • Weather resistant, dust protection, military rugged

  • Internal VOX capability for hands-free operation

  • Selective calling, quiet stand-by and more

  • Scan features

  • Lone worker function

  • DTMF autodial

  • CTCSS/DTCS encoder/decoder

  • BIIS PTT ID transmission

  • MDC PTT ID and emergency

  • Low battery alert

  • 2-step power save

  • PC programmable

  • Time out timer

  • Talk around function

  • 3-color LED

  • Surveillance function

Specifications

Frequency range
136 MHz–174 MHz
Number of memory channels
16 channels
Type of emission
8K50F3E/14K0F3E/16K0F3E
Channel spacing
12.5/20/25 kHz
Power supply requirement
7.2 V DC
Current drain(approximate)
Tx      High           1.3 A
Rx     Stand-by   75 mA
Max. audio
500 mA (Internal SP)
Antenna impedance
50 Ω
Operating temperature range
–25°C to +55°C (Radio only)
Dimensions (W×H×D)(Projections are not included)
58 × 111 × 35.5 mm (With BP-299)
Weight (approximate)
272 g (With BP-299)
Transmitter
RF output powerat 7.2V DC)
5 W, 2 W, 1 W (Hi, L2, L1)
Max. frequency deviation
± 5.0 kHz/±4.0 kHz/±2.5 kHz (Wide/Middle/Narrow)
Frequency stability
±2.5 ppm
Spurious emissions
0.25 μW (≤ 1 GHz)
1.0 μW (> 1 GHz)
Residual modulations
58/56/53 dB typical(Wide/Middle/Narrow)
Audio harmonic distortion (AF 1 kHz 40% deviation)
1.0%/1.0%/1.5% typical(Wide/Middle/Narrow)
Ext. microphone connector

Receiver
Sensitivity(at 20 dB SINAD)
–4 dBμV typical emf
Adjacent channel selectivity
78/78/70 dB typical(Wide/Middle/Narrow)
Spurious response rejection
70dB (min.)
Intermodulation rejection
65 dB minimum
Hum and noise(With CCITT filter)
57/55/51dB typical (Wide/Middle/Narrow)
Audio output power

Internal SP(With 8Ω load)     1500 mW typical (at 5% distortion)
External SP(With 8Ω load)    400 mW typical (at 5% distortion)

Ext. speaker connector
Ext. speaker connector
