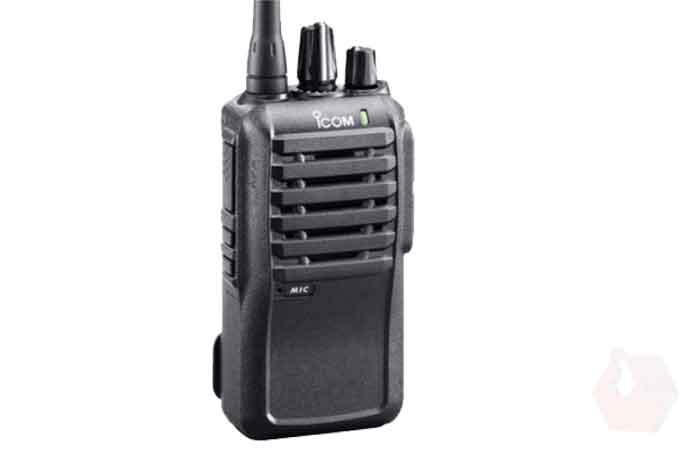

IC-F4003 Transreceiver ICOM UHF

Very Strong Radio, 5Watt, UHF hand Set, IP54, Military Standard, 14 Scan features, Made In Japan Affordable, High Performance Radio that Offers Abundant Features

Features:

  • Simple operation for instant communication

  • Easy to hear in noisy areas

  • Longer operating time

  • Weather resistant, dust protection, military rugged

  • Internal VOX capability for hands-free operation

  • Selective calling, quiet stand-by and more

  • Scan features



Product Introduction

The Ic-F3003 series is so easy to use there's no special training required. The built-in bridge-tied load amplifier offers powerful 800mW audio output from the large 45mm speaker. The radio has the internal VOX capability for hand-free operation. A new high efficiency FET of the IC-F3003 series reduces consumption current and provides 20 hours of operating time with the BP-265, 2000mAH battery pack.





Features:

  • Simple operation for instant communication

  • Easy to hear in noisy areas

  • Longer operating time

  • Weather resistant, dust protection, military rugged

  • Internal VOX capability for hands-free operation

  • Selective calling, quiet stand-by and more

  • Scan features

  • DTMF autodial

  • CTCSS/DTCS encoder/decoder

  • BIIS PTT ID transmission

  • MDC PTT ID and emergency

  • Low battery alert

  • 2-step power save

  • PC programmable

  • Time out timer

  • Talk around function

  • Lone worker function

  • Enhanced emergency

  • 3-color LED

  • Surveillance function

Specifications

Frequency range
450–520 MHz
400–470 MHz
400–470 MHz
16 channels
Type of emission
11K0F3E/16K0F3E
Channel spacing
12.5 kHz/25 kHz
Power supply requirement
7.2 V DC
Current drain(approximate)
Tx          High     1.6 A
Rx         Stand-by 70 mA
Max. audio
500 mA (Internal SP)
Antenna impedance
50 Ω
Operating temperature range
–30°C to +60°C, –22°F to +140°F (Radio only)
Dimensions (W×H×D)(Projections are not included)
58×111×35.5 mm,2.3 × 4.4 × 1.4 mm (With BP-298)
Weight (approximate)
265 g, 9.3 oz (With BP-298)
Transmitter
RF output power (at 7.2V DC)
5 W, 2 W, 1 W (Hi, L2, L1)
Max. frequency deviation
± 5.0 kHz/±2.5 kHz (Wide/Narrow)
Frequency stability
±2.5 ppm

Spurious emissions
70 dB (min.)
Residual modulations
53/48 dB typical(Wide/Narrow)
Audio harmonic distortion(AF 1 kHz 40% deviation)
1.0%/1.5% typical(Wide/Narrow)

Receiver
Sensitivity (at 12dB SINAD)
0.25dBμV (typ.)
Adjacent channel selectivity (W/M/N)
73 dB/65 dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection
74 dB (typ.)
AF output power(at 5% distortion )

Internal SP(With 8Ω load)             1500 mW (typ.)
External SP(With 8Ω load)             400 mW (typ.)
