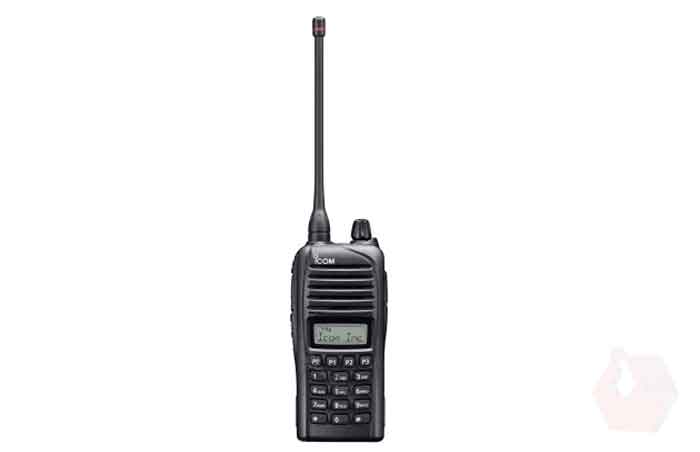

IC-F4032T Transreceiver ICOM UHF

Features:

  • TOT (time-out-timer) with timed penalty function

  • 8 DTMF memories with auto-dial function

  • Power save function with 2 levels

  • 2 levels of low battery acoustic warning

  • Ability to temporarily disable display backlighting and audible warning for surveillance operations

  • Normal or priority scanning



Product Information

The IC-F3032T  series provides outstanding protection against water and dust equivalent to IP67. The IC-F3032T/S series can withstand 1m depth of water for 30 minutes and its dust-tight construction that prevents the ingress of powder dust, sand, mud and other objects. The supplied waterproof Li-Ion battery pack, BP- 232WP (7.4V, 2350mAh (typ.)), provides 17.5 hours of operating time. The battery has been designed for reliability in extremely cold environments. The IC-F3032T series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication or selective calling. When a matched 2-Tone/5-Tone is received, the following actions are programmable for each code.



Features:

IP67 waterproof and dust-tight protection

The IC-F3032T/S series provides outstanding protection against water and dust equivalent to IP67. The IC-F3032T/S series can withstand 1m depth of water for 30 minutes and its dust-tight construction that prevents the ingress of powder dust, sand, mud and other objects.

Longer Operating Time

The supplied waterproof Li-Ion battery pack, BP- 232WP (7.4V, 2350mAh (typ.)), provides 17.5 hours* of operating time. The battery has been designed for reliability in extremely cold environments.

Selective Calling, Quiet Stand-by and More

The IC-F3032T/S series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication or selective calling. When a matched 2-Tone/5-Tone is received, the following actions are programmable for each code.





More Features:

  • Up to 128 memory channel with 8 zones

  • 8-character alphanumeric LCD

  • 8 DTMF autodial memories

  • Optional HM-168LWP, waterproof speaker-mic

  • BIIS PTT ID transmission

  • Low battery alert

  • 2-step power save

  • PC programmable

  • Time out timer

  • Talk around function

  • Surveillance function


Specifications

General

Frequency coverage
400–470MHz
Number of channels
128 channels/8 zones
Channel spacing
25/20/12.5 kHz
Type of emission
16K0F3E/14K0F3E/8K50F3E
Current drain

Current drain   1.6A (at 4W)

Rx Stand-by   75mA

Max. audio
300mA
Dimensions(projections not included; W×H×D)
53×120×37 mm(With BP-232WP)
Weight (approx.)
310g (With BP-232WP)

Transmitter

RF output power (at 7.2V DC)
4W, 2W, 1W
(Hi, L2, L1)
Spurious emissions
0.25μW (≤ 1GHz), 1.0μW (> 1GHz)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typ. (AF 1kHz 40% deviation)
Receiver

Sensitivity at 20dB SINAD
–4dBμV typ. emf
Adjacent channel selectivity (W/M/N)
75/73/65dB typ.
Spurious response rejection
70dB min.
Intermodulation rejection
67dB typ.
AF output power
(at 5% distortion with an 8Ω load) 500mW typ.
