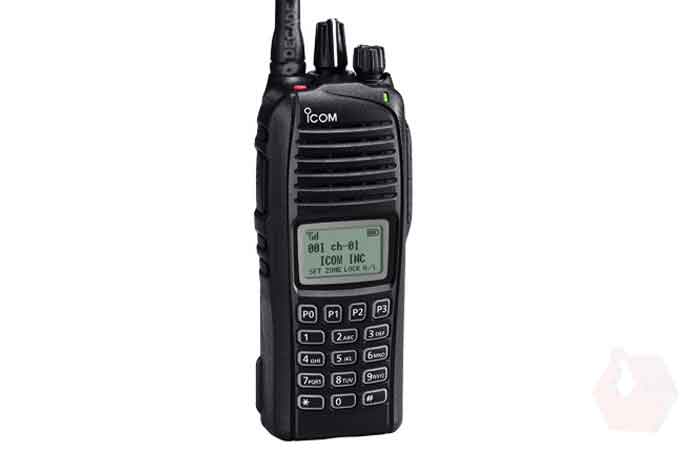

IC-F4263D-UL Transreceiver ICOM UHF

5 W Output Power Digital Radio for Hazardous Locations, IP-67, MIL-STD-810-C, -D, -E and -F, The F4263D-UL series can be used in Class I, Division 2, Group A, B, C and D hazardous locations approved by UL (Underwriters Laboratories). Other safety features such as man down, lone worker and emergency call functions help your team remain connected in hazardous locations. Accessories with BP-232UL 2350mAh, MB-94R, FA-SC57U

Features:

  • IP67 Waterproof & Dustproof Protection

  • Man Down and Lone Worker Functions for Emergency Call

  • 800mW (typ.) Audio Output Power

  • Built-in GPS Receiver

  • Large Full Dot-Matrix LCD14-pin Accessory Connector

  • Long Lasting Battery Life

  • Built-in 2-Tone and 5-Tone

Full-Featured IDAS Digital Handheld with Built-in GPS and Waterproof Protection

Features

IP67 Waterproof & Dustproof Protection

The IC-F3263D series provides rugged protection against dust and water that is equivalent to IP67. The radio can withstand 1m depth of water for 30 minutes.


Man Down and Lone Worker Functions for Emergency Call

The man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position. The lone worker function also can transmit an emergency signal when the radio is not operated for a preset period. These emergency signals can be sent with GPS position data* to alert your co-workers or dispatch of any potential trouble.


800mW (typ.) Audio Output Power

The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.


Built-in GPS Receiver

Your current position data can be attached to a voice or data (SDM, status or emergency signal) transmission and can be sent to dispatch stations.


14-pin Accessory Connector

The new 14-pin accessory connector enhances audio output capabilities with the built-in BTL amplifier. The optional HM-184 speaker - microphone has a 1000mW (typ.) audio output for loud and clear communications.


Long Lasting Battery

Life GPS type                                                   Digital mode                        Analogue mode

Built-in GPS type                                    10.5 hours (approx.)     11 hours (approx.)

Non GPS type                                             12 hours (approx.)     12.5hours (approx.)



Scan Features

The IC-F3263D series can detect both analogue and IDAS conventional signals and automatically selects the transmission mode to reply to the received call.



Large Full Dot-Matrix LCD

Using a large full dot-matrix LCD (32 × 18mm), the IC-F3263D series shows two lines of easy-to-read text messages. The bottom row shows assigned functions to the [P0] to [P3] buttons


IDAS Features

The IC-F3263D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with NXDN™ Type-D multisite trunking. The following IDAS features are programmable.

  • Individual/group call

  • Individual ID and talkgroup ID memories

  • Status message

  • SDM (Short Data Message)

  • GPS

  • Stun, kill and revive

  • Radio check

  • Remote monitor

  • Call alert

  • Call log

  • Emergency

  • Digital voice scrambler

  • Block decode

  • RAN (Radio Access Number)

  • Built-in 2-Tone and 5-Tone*

  • 2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio.

  • MDC 1200 Compatible

  • The built-in MDC signaling provides the following selective calling and ANI features.

  • PTT ID

  • SelCall

  • Radio check

  • Radio stun/revive

  • 500 aliases

  • Status message/request

  • Call alert

  • Emergency, emergency mic monitoring



Built-in Voice Scrambler

The built-in inversion voice scrambler* provides secure conversation in analogue mode. When using IDAS digital mode, the digital voice scrambler provides a 15-bit key (about 32,000 codes) as standard.



Specifications

General

Frequency coverage
350-400MHz
400–470 MHz
450–520 MHz
Number of channels
512 channels/128 zones
Channel spacing
25/12.5/6.25kHz
Type of emission
16K0F3E/8K50F3E/4K00F1E/F1D
Current drain(approx.)
Tx    High (at 5W)    1.8A
Rx Rated output   550mA
Standby      160mA
Dimensions (W×H×D)(projections not included)
53.5×142.7×39.5 mm(With BP-232WP)
Weight (approx.)
400g(With BP-232WP, MB-94R & FA-SC57U)

Transmitter
RF output power (at 7.5V DC)
5W, 2W, 1W (Hi, L2, L1)
Spurious emissions
78dB typ.
Frequency stability
±1.0ppm
Audio harmonic distortion
1.5% typ. (AF 1kHz 40% deviation)
FM Hum and Noise
46/40dB typ. (W/N)
FSK error
2.0% typ.
Receiver
Sensitivity

Analogue      0.23μV typ. (at 12dB SINAD)
Digital           0.20μV typ. (at 5% BER)

Adjacent channel selectivity
75/68/60dB typ. (W/N/D)
Spurious response rejection
76dB typ.
Intermodulation rejection
75/75/66dB typ. (Wide, narrow, digital)
AF output power(at 5% distortion)
800mW typ. (Internal SP, 12Ω load) 1000mW typ. (External SP, 8Ω load)
