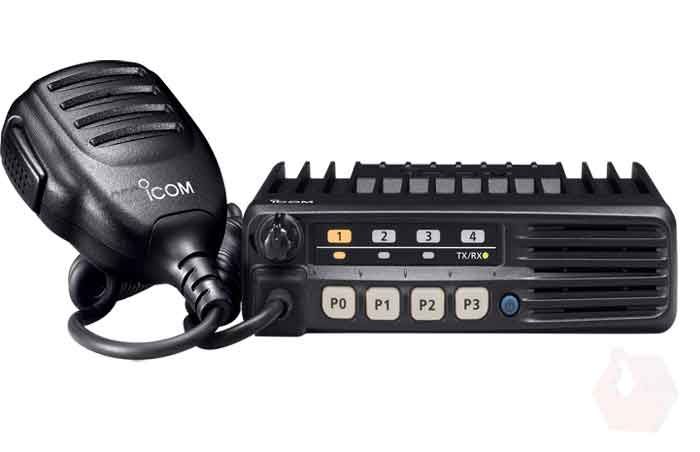

IC-F5013/H ICOM BASE/Mobile VHF

Simple Operation, Versatile Functions & Rugged Construction for Your Day-to-Day Communication Needs

Features:

  • Simple operation for instant communication

  • Most popular signalings built-in

  • Multiple 2-Tone, multiple 5-Tone

  • MDC 1200 compatible

  • Enhanced scan features

  • Remote channel control with optional ACC cable

  • Built military rugged

  • 4W (typ.) front mounted speaker

  • Optional DTMF microphone (HM-152T)

  • Wide/narrow channel spacing (25, 12.5kHz) programmable

Features:

Simple Operation for Instant Communication

The IC-F5013 series has 8 channels. The P0-P3 programmable buttons allows you to customize the radio to suit your needs and convenience.


Most Popular Signalings Built-in

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.


Multiple 2-Tone, Multiple 5-Tone

Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.


MDC 1200 Compatible

The IC-F5013 series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.


Enhanced Scan Features

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.



Remote Channel Control with Optional ACC Cable

The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.


Built Military Rugged

The IC-F5013 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.


Other Features

  • 4W (typ.) front mounted speaker

  • Wide frequency coverage (136-174, 400-470 and 450-520MHz)

  • Wide/narrow channel spacing (25, 12.5kHz) programmable

  • Microphone hanger action programmable

  • Optional DTMF microphone (HM-152T)

  • DTMF autodial function

  • PC programmable

  • Talk around function

  • Power-on password function

  • Nuisance delete function

  • Time-out-timer, lock-out penalty timer

Specifications

GENERAL

Frequency coverage
136-174MHz
Number of channels
8 channels
Channel spacing
12.5/25kHz
Type of emission
16K0F3E/11K0F3E
Current drain(approx.)
Tx High (25W) 5A
Rx Stand-by 250mA
Max. audio
700mA
Dimensions(projections not included; W×H×D)
150×40×117.5 mm;
5.91×1.57×4.63 in
Weight
0.8kg; 1.8lb

TRANSMITTER

RF output power
25W, 10W, 2.5W (Hi, L2, L1)
Spurious emissions
70dB (min.)
Frequency stability
±2.5ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46/40dB typ. (Wide/Narrow)

RECEIVER

Sensitivity at 12dB SINAD
0.25μV (typ.)
Adjacent channel selectivity (W/N)
75dB/65dB (typ.)
Spurious response rejection
70dB min.
Intermodulation rejection
75dB (typ.)
AF output power(at 5% distortion with an 4Ω load)
4W (typ.)
