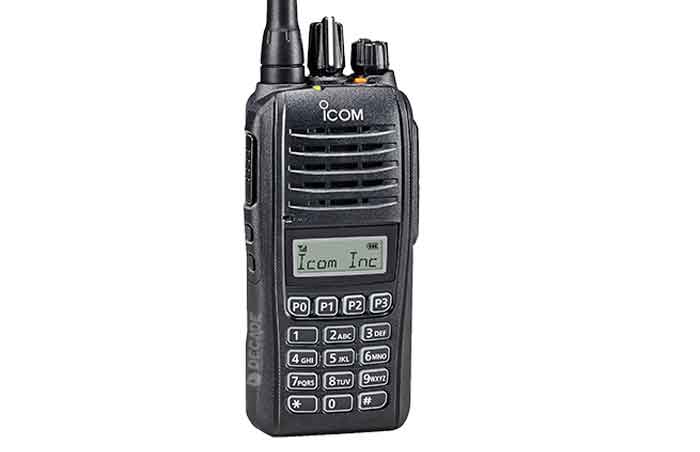

ICOM IC-F2100DT IDAS Transreceiver

UHF HANDHELD TRANSCEIVER 400-470MHZ, 5W, 128 CHANNELS, LCD DISPLAY, FULL KEYPAD, MAN DOWN AND LONE WORKER FEATURES INCLUDED, IP67 PROTECTION WITH AQUAQUAKE (DRAINING FEATURE), MIXED MODE COMMUNICATION ANALOG AND DIGITAL NXDN

Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming. (IC-F1100DT/DS and IC-F2100DT/DS only)

AquaQuake™ Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit

Motion/Stationary Detection, Man Down and Lone Worker Functions

Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)

IDAS™ Conventional and Type-D Single-Site Trunking

BIG ON AUDIO, SMALL ON SIZE 1500 MW CLASS LEADING AUDIO

The ICOM IC-F2100 Series UHF Portable Radios are well suited to a variety of applications and needs, including education, hospitality, and retail. They are rugged and dustproof, and provide loud, clear audio.  ICOM IC-F2100 Series UHF Portable Radios make for sleek and ergonomic choices for entry to mid level radio needs. Three feature-packed models are available - basic with no display, simple with a display and simple keypad, and full, which includes a display and fully DTMF keyboard.

IP 67 Waterproof

Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G), Waterproof for 30 minutes in one meter depth of water

1500 mW powerful audio

Icom’s Custom High Power Handling Capacity Speaker for 1500 mW of Powerful Audio

Feature Three

Icom custom high power handling capacity speaker, Big on Audio, Small on Size 1500 mW Class Leading Audio

F1100D/F2100D Series

The F1100D/F2100D Series is a sleek portable digital two way radio that fits nicely in your hand and designed to be the go to entry to mid level digital radio. Three model choices (available VHF & UHF), basic – no display or Keypad (IC-F1100D & ICF2100D),, simple – display with simple keypad (IC-F1100DS & ICF2100DS), and full – display and fully DTMF keypad (IC-F1100DT & IC-F2100DT)., include an array of features such as IDAS digital mode operation in IDAS conventional and multi-site conventional, intelligent emergency functions, and a rugged waterproof & dustproof chassis will offer reliable operation. A high-power handling capacity speaker and acoustic improvements provide class-leading (1500 mW) loud and clear audio come with a long lasting battery for those times when communication matters. This radio is ideal to meet the needs of a wide range of businesses including education, hospitality, Security Agencies, Government, Factory and retail.

General Features

  • 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
  • 128 Channels / 8 Zones (for LCD types)
  • 16 Channels (for non-display types)
  • Icom’s customized speaker offers a louder 1500 mW audio output
  • An engineered casing that amplifies and improves acoustic sound clarity
  • Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
  • IP67/55/54 waterproof and dust-tight protection
  • Tested to 12 categories of MIL-STD-810-G environmental tests
  • AquaQuake™ – Expels water ingress from the speaker grill
  • DTMF autodial memories
  • 16-position rotary selector and ON/OFF volume knob
  • Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
  • Operating times of up to 18 hours (with the supplied BP-280 battery pack)
  • Eight character alphanumeric display (for LCD types)
  • Three color LED

Analog Functions

  • CTCSS and DTCS tone
  • 2-Tone and 5-Tone
  • MDC functions*; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
  • BIIS PTT ID transmission

Scan Functions

  • Priority scan monitors one or two priority channels while scanning non-priority channels
  • Voting scan automatically selects the optimal repeater site
  • Mode dependent scan automatically changes the scan list, depending on the operating channel
  • Power ON scan function
  • Talk Back timer

  • Voice/Audio Functions

    • Channel announcement function
    • VOX function for hands-free operation
    • Siren sound for security alarm

Operating Mode*

  • NXDN or dPMR Mode 1/Mode 2 conventional
  • NXDN or dPMR multi-site conventional over IP network
  • NXDN Type-D single-site trunking
  • Analog mode
  • Analog/digital mixed operation (conventional mode)

Digital Functions (Voice and Data)

  • AMBE+2™ vocoder
  • Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
  • Individual, Group and All call
  • Late entry for Group call
  • Status call and Polling
  • Short data messages (for LCD types)
  • Call alert (NXDN)
  • Radio check (RX only) (NXDN)
  • GPS position capabilities (requires HM-171GPW)
  • Up to 500 ID numbers for IDAS or MDC 1200 signaling system can be saved in the Call List to show the alias name

Safety and Security

  • Digital voice scrambler (Low level encryption)
  • Radio Stun/Revive/Kill (RX only)
  • Remote monitor (NXDN)/ambience listening (dPMR)
  • Man down, Lone worker and Emergency call key capability
  • Motion and Stationary detection function
  • Surveillance function temporarily turns OFF the beep and LED indicator
  • Power ON password (for LCD types)


Frequency coverage*
(*Varies according to version)


IC-F1100DT/S
IC-F1100D
IC-F2100DT/S
IC-F2100D
Frequency coverage* (*Varies according to version)136–174 MHz (NXDN/dPMR)

350–400 MHz (NXDN, EXP) 400–470 MHz (NXDN/dPMR USA/EUR/EXP) 450–512 MHz (NXDN, USA) 450–520 MHz (NXDN, EXP)

IC-F1100DT/S

IC-F1100D

IC-F2100DT/S

IC-F2100D

Frequency coverage*
(*Varies according to version)

136–174 MHz (NXDN/dPMR)

350–400 MHz (NXDN, EXP)
400–470 MHz (NXDN/dPMR USA/EUR/EXP)
450–512 MHz (NXDN, USA)
450–520 MHz (NXDN, EXP)

Number of channels

128 channels/ 8 zones

16 channels

128 channels/ 8 zones

16 channels

Type of emission*
(*Depending onversion)

11K0F3E, 4K00F1E, 4K00F1D (USA)

16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)

16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)

Power supply requirement

7.5V DC nominal

Current drain
(approx.)

Tx

1.3A

1.6 A (at 5 W)
1.4 A (at 4 W)

Rx

520 mA /110 mA
(Max. audio (internal SP)/Standby)

520 mA /110 mA
(Max. audio (internal SP)/Standby)

Antenna impedance

50Ω

Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification)
(USA/EXP)

–25°C to +55°C (Radio specification)
(EUR)

Dimensions
(W × H × D; Projections not included)

IC-F1100DS/D, IC-F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)

IC-F1100DT, IC-F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)

Weight (approx.)

IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133)
IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133)
IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)



For assistance in determining the right models for your needs, simply give us a call and a member of our knowledgeable staff will help you sort it all out!
