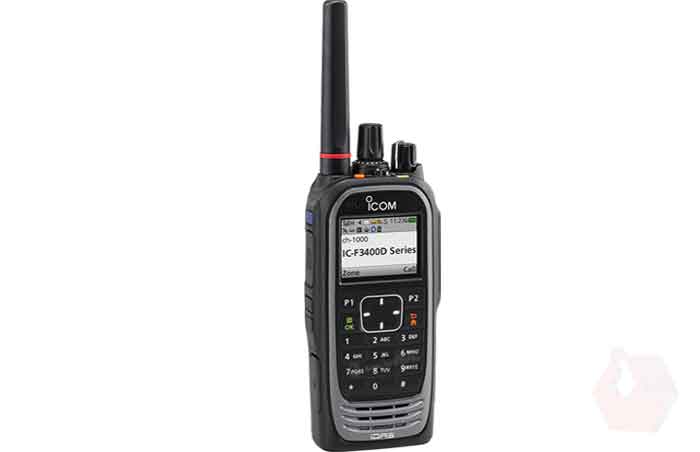

ICOM IC-F3400DT IDAS Transreceiver

The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product.

Features:

  • Compact and light

  • TFT LCD color display (DS and DT models)

  • Water resistant IP68 with AquaQuake

  • Vibrator

  • Channel voice announcement

  • Built-in GPS, Motion ,Lone worker

  • Voice and Data recorder

  • micro SD card slot

  • Bluetooth

Product Introduction

The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications.




Feature:

  • Analog/digital conventional mixed mode operation

  • Upgrade to Type-D trunking

  • Status

  • Text message

  • Radio check

  • Stun, kill and revive

  • Call alert

  • Remote monitor

  • Hands-free communication with built-in Bluetooth®

  • Tile designed keypad increases durability and visibility

  • Transparent data modem can transmit data at 9600bps over the radio

  • Send up to 100 character text messages

  • Programmable alerts can vibrate when a specific user calls

  • Channel voice announcement

  • USB port to connect to a PC

  • Active Noise Canceling

  • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog

  • 14-pin ACC connector with BTL amplifier output

  • VOX (voice operated transmission) function

  • Tactical group function

  • Normal, priority and voting scan

  • Radio discovery tool software troubleshoots problems with radio communications and incident analysis

Specifications

Frequency range (NXDN)
136–174MHz
Frequency range (dPMR)
136–174MHz
Number of channels
1024 channels /128 zones
4000 channels /128 zones (Option*1 )
32 channels /2 zones (Non-display type)*2
Type of emission (NXDN)(* Depending on version)
16K0F3E*3 , 14K0F3E, 11K0F3E, 8K50F3E ,8K30F1E/D, 4K00F1E/D
Type of emission (dPMR)(* Depending on version)
16K0F3E*3 , 14K0F3E, 8K50F3E, 4K00F1E/D
Power supply requirement
7.5V DC nominal
Current drain (approx.)
Tx (High)     1.5A
Rx (Max./Standby)
580 mA (Internal SP)/140 mA
Antenna impedance
50Ω
Operating temperature range
–30 °C to +60 °C; –22 °F to +140 °F (Radio specifications)
Dimensions (W×H×D)(Projections not included)
53.6 × 123.5 × 29.3 mm;
2.1 × 4.9 × 1.2 in (with BP-284)
Weight (approx.)
215 g; 7.6 oz (main unit)
340 g; 12.0 oz
(with BP-284, MB-133 and FA-S81VS)
Transmitter
Output power(Hi, L2, L1)(Depending on version)
5 W, 2 W, 1 W
Frequency stability
±1.0ppm
Spurious emissions
USA
EUR

80 dB typ.
0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz)
FM Hum and noise (W/N)
55/55 dB typ.
Audio harmonic distortion(AF 1kHz 40% deviation) 0.5% typ.
FSK error
1% typ. (DVN/DN)

Receiver
Sensitivity
12dB SINAD 0.22 μV typ.
20 dB SINAD (W/N) –5.5/–2.5 dBμV emf typ.
1% BER (DVN/DN) –5.5/–4.0 dBμV emf typ.
Adjacent channel
(W/N)  80/76 dB typ.
(DVN/DN)   71/70 dB typ.
 Spurious response rejection81 dB typ.
Intermodulation rejection
Analog (USA)   75 dB typ.
 Analog (EUR)   67 dB typ.
DVN/DN
72 dBμV emf typ./  –41 dBm typ.
Audio output power
Internal SP (With 8 Ω load)         1300 mW typ. (at 5% distortion)
External SP(With 8 Ω load)      1000 mW typ. (at 5% distortion)
