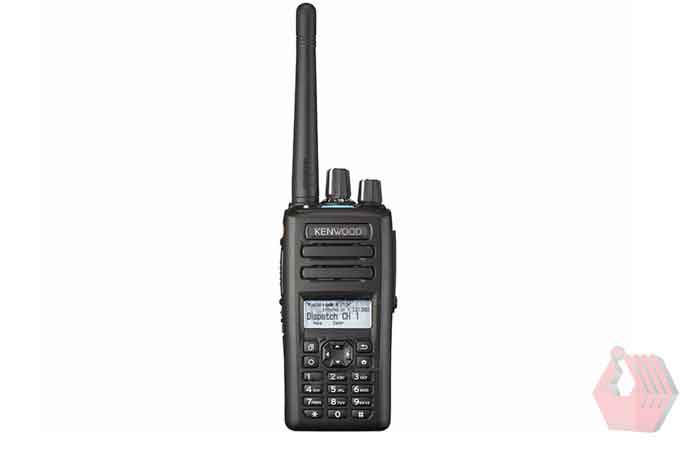

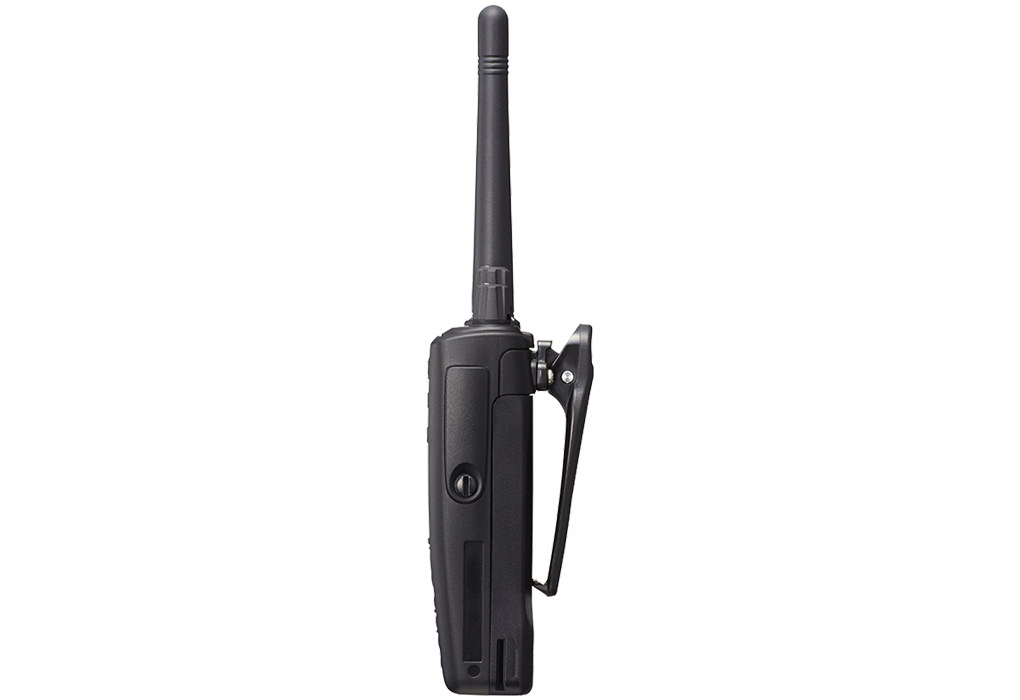

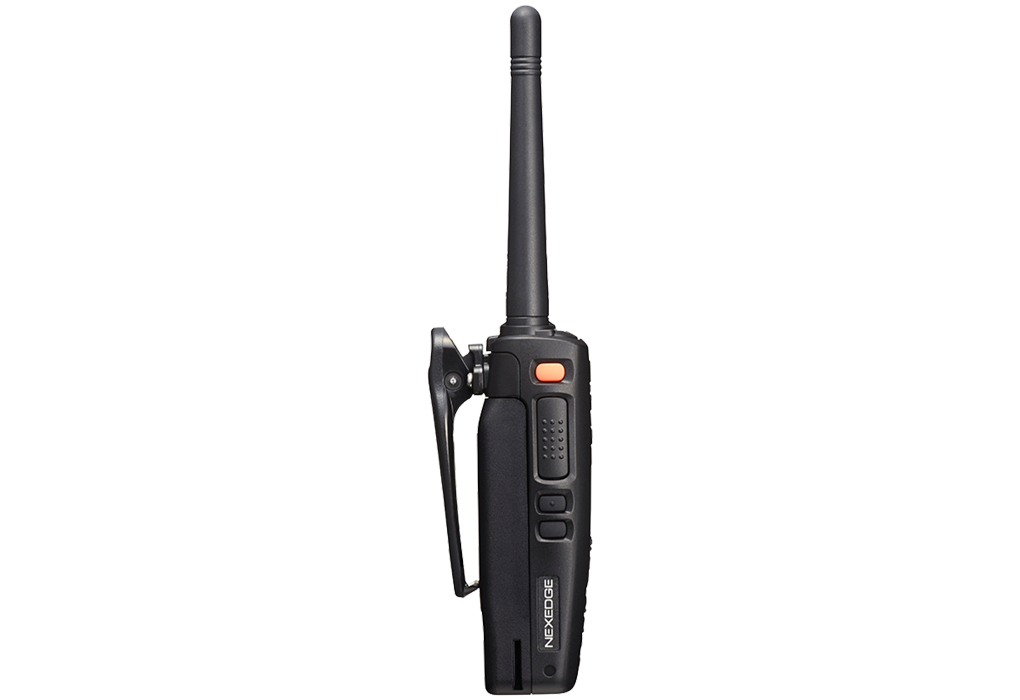

Kenwood NX-3220

Features:

  • Multi-protocol digital radio: Designed to operate under NXDN or DMR digital,

  • and FM analog protocols

  • NXDN Conventional and Type-C & Gen2 Trunking

  • DMR Tier 2 Conventional & Site Roaming

  • DMR Auto Slot Select

  • DMR Tier 3 Trunking

  • Mixed Digital & FM Analog Operation allows gradual migration at your own pace

  • 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters

  • 5-Line Text Message Frame (3 Lines of Text, icon & key guide)

  • 7-color Light Bar Indicator on the top panel. Individual color can be set for each channel


Product Introduction

This versatile handheld radio supports both NXDN and DMR digital protocols as well as mixed digital & FM analog operation, enabling it to serve with distinction in a wide range of enterprise- and operation-critical applications. Compact yet designed with durability in mind, it’s packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. Three different models are available: Full Keypad model with LCD, Standard Keypad model with LCD and a large 4-way D-pad, and the Basic Model without LCD or keypad. Additionally, for expansion capability a software license certification system facilitates extensive customization.















MIL-STD Environmental and Ingress Protection Standards

As a result, the portable radios complying with IP67* immersion standards offer max. 30 minutes protection at a depth of 1 meter, while the mobile radios comply with IP54/55 dust/water ingress protection standards. *Radio must equip 2PIN accessory cover.


Tough and Robust

Stringent test to develop tough radio withstanding harsh operational conditions.


Built-In Bluetooth

Hands-free operation is vital for many NX-3000 users. The radios’ built-in Bluetooth® module is compatible with Headset and Serial Port Profiles (ver. 3.0) and keeps your hands free.


GPS To Transmit Your Position

Featuring an integrated GPS module and antenna, NX-3000 portable radios can transmit positional data, enabling effective management when used with tracking applications like KAS-20 software. Mobile models can support GPS with the optional KRA-40G.


Encryption Equipped

Secure communications are an essential requirement, especially for public safety applications. NX-3000 radios are equipped with 56-bit key Data Encryption Standard (DES) encryption. For even higher protection the radios can support 256-bit Advanced Encryption Standard (AES) encryption with optional module.


Sensors For User Safety

Man-down Detection, Stationary Detection, or Motion Detection will be automatically engaged when the embedded acceleration and tilt sensors detect unusual behavior. Lone Worker function automatically places the radio in Emergency Mode if it is not operated for a certain period of time. The bright orange Emergency Button is located at the top (portables) or front (mobiles) of the radio for high visibility and instant access when needed.

Features:

Two configurations to choose from

Choose between two portable configurations – one without a numeric keypad and the other with numeric keypad (16-key model). Both styles feature the 4-way Directional-pad (D-pad) and 2-position lever switch.


7-color Light Bar Indicator on the top

Individual color can be set for each channel. The light bar is big enough to easily identify which channel the user is on.


Full Dot LCD & Backlit Color In White

Full-color, 1.74-inch color LCD Full Dots Matrix (168(W) x 65(H)dots, Monochrome) can display 4-Line Basic Frame and 5-Line Text Message Frame.


Active Noise Reduction (ANR) for suppressing ambient noise

KENWOOD’s advanced ANR technology performs complicated noise reduction, which normally requires two microphones for processing, using single microphone.











Specifications

Frequency Range
136-174 MHz
400-520 MHz
Max. Channels Per Radio
Up to 1000 CH with option
Number of Channels
260 (64 for no LCD models)
Number of Zones
128 (4 for no LCD models)
Channel Spacing
Analog 12.5/15/25*/30* kHz
Digital 6.25 kHz/12.5 kHz
Power Supply
7.5 V DC +-20 %
Battery Life 5-5-90(FDMA conventional / Trunking. TDMA Conventional / Trunking)
KNB-55L (1,480 mAh) 8.5 / 6.5 hours, 12.5 / 9 hours 9 / 7 hours, 12 / 9 hours
KNB-56N (1,400 mAh 7.5 / 6 hours, 11 / 8 hours 8 / 6 hours, 10.5 / 8 hours
KNB-57L (2,000 mAh) 12 / 9.5 hours, 17.5 / 13 hours 13 / 10 hours, 17 / 13 hours
KNB-78L (2,860 mAh) 17.5 / 13.5 hours, 25 / 18.5 hours 18.5 / 14 hours, 24 / 18.5 hours
KNB-79LCM (2,860 mAh) 15 / 11.5 hours, 21.5 / 16 hours 15.5 / 12 hours, 20.5 / 16 hours
Operating Temperature
-22ºF to +140ºF (-30ºC to +60ºC)
Frequency Stability
±0.5 ppm (-30°C to +60°C; +25°C Ref.)
Dimensions (W x H x D) Projections Not Included
Radio only 2.20 x 4.71 x 1.43 in (56 x 119.6 x 36.4 mm)
With KNB-55L 2.20 x 4.71 x 1.43 in (56 x 119.6 x 36.4 mm)
With KNB-56N 2.20 x 4.71 x 1.68 in (56 x 119.6 x 42.7 mm)
With KNB-57L 2.20 x 4.71 x 1.53 in (56 x 119.6 x 39 mm)
KNB-78L, KNB-79LCM 2.20 x 4.71 x 1.77 in (56 x 119.6 x 44.9 mm)
Weight
Radio only 7.8 oz (220 g)
KNB-55L (1,480 mAh) 11.1 oz (315 g)
KNB-56N (1,400 mAh) 14.5 oz (410 g)
KNB-57L (2,000 mAh) 12.0 oz (340 g)
KNB-78L, KNB-79LCM 13.6 oz (385 g)
