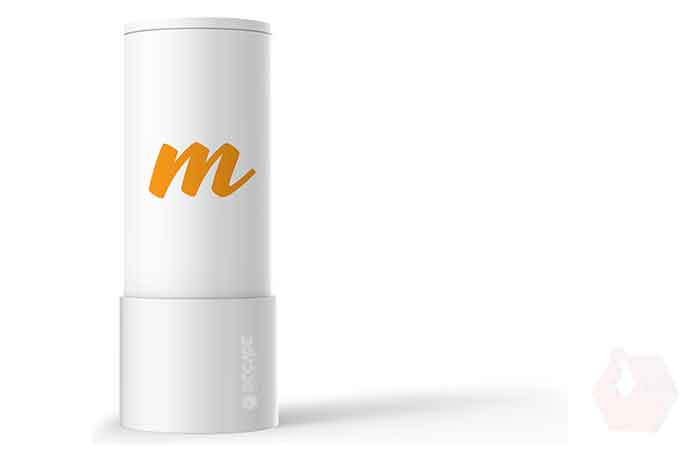

Mimosa A5-14-ETSI

The Mimosa A5 access point delivers cutting-edge multipoint technology for service providers to affordably deliver the industry’s first scalable gigabit wireless broadband network.

Features:

  • Smart Quad-Panel MIMO Technology

  • Fiber Speed Access at a Fraction of the Cost

  • Beautifully Compact

  • Network Scalability Perfected

  • Ultra Capacity TDMA

  • Working Above The Noise

  • Ultra Rugged

  • Add Subscribers With Ease



Product Introduction

Operating from 4.9 to 6.2 GHz with 1.5 Gbps capacity and local and network-wide spectrum reuse, the Mimosa A5 access point delivers cutting-edge multipoint technology for service providers to affordably deliver gigabit wireless broadband. Discretely designed for high-density, short-range applications, the A5 supports up to 100 clients in WiFi interop mode, and 44 clients in sync mode, and features advanced interference reduction techniques to enable connectivity in a variety of applications.





Features:


Fiber Speed Access

Capable of delivering the speed business users and consumers need at a fraction of the cost of delivering fiber-to-the-premise.



Network-Wide Cloud Control

Mimosa Cloud makes deployment a breeze, interacting with devices network-wide to proactively assist the A5 to optimize network and subscriber experience for the best performance and capacity management.



Working Above the Noise

Advanced auto-gain control techniques automatically squelch out underlying interference with only 10 dB of operating margin required to deliver incredible client performance.



Compact and Fast

With up to 1.0 Gbps of total capacity, the A5 is the industry’s fastest multipoint solution in a tiny form factor, making suburban rooftop or urban installation a fast, easy and discrete solution.



Network Scalability Perfected

Unique integrated, high-precision GPS Sync technology allows every deployed device to be collaboratively synchronized across the network, allowing easy channel reuse to save spectrum network-wide.

Mimosa A5 Access Specifications
Performance
Max ThroughputUp to 1.0 Gbps IP (1.7 Gbps PHY)
Client Capacity100 clients
Wireless ProtocolsWiFi Interop, Mimosa GPS Sync (TDMA)**
Radio
MIMO & Modulation4x4:4 MIMO OFDM up to 256-QAM
Bandwidth*20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
Frequency Range4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
Max Output Power30 dBm
Sensitivity (MCS 0)-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Antenna
GainA5-14: 14 dBi
A5-18:
 18 dBi
Beam width (3dB)70° azimuth
Electrical Down tiltA5-14: none
A5-18: 4°
Front-to-Back Ratio>30 dB
Cross-Polar Isolation>20 dB or greater
PolarizationCircular, four alternating panels
Power
Max Power Consumption25W
System Power Method802.3at compliant
System Lightning & ESD Protection6 kV
PoE Power Supply802.3at and Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
DimensionsA5-14 dBi: 314 mm (12.36”) height 142.44 mm (5.61”) width
A5-18 dBi: 668 mm (26.29”) height 142.44 mm (5.61”) width
WeightA5-14 dBi: 1.75 kg (3.85 lbs)
A5-18 dBi: 2.73 kg (6 lbs)
Enclosure CharacteristicsOutdoor UV stabilized engineered polymer
Wind Survivability200 km/h (125 mph)
Wind LoadingA5-14 dBi: 7.72 kg @ 160 km/h (17.03 lbs @ 100 mph)
A5-18 dBi: 16.03 kg @ 160 km/h (35.34 lbs @ 100 mph)
MountingDual pole strap feed points integrated into metal base with integrated curvature for contact with mounting poles
Environmental
Outdoor Ingress Protection RatingIP67
Operating Temperature-40°C to +55°C (-40°F to 131°F)
Operating Humidity5 to 100% condensing
Operating Altitude4,420 m (14,500’) maximum
Shock & VibrationETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet10/100/1000-BASE-T
Multi-User MIMO**Device leverages beamforming to transmit to multiple clients simultaneously
Synchronization**GPS+GLONASS allows for network-wide sync and interference avoidance
Collocation**1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse
Network ProcessingAdvanced AP control for capacity and subscriber management
Management ServicesMimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS HTML 5-based Web UI
2.4 GHz 802.11b/g/n radio for local management access
Smart Spectrum ManagementActive scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
SecurityWPA2 + Mimosa 802.1x RADIUS Management VLAN support
QoSSupports 4 pre-configured QoS levels
GPS LocationGNSS1 (GPS + GLONASS)
Traffic ShapingPer CPE UL/DL commit and maximum rate shaping
Access Control ListPermit, Deny and Remark Layer 2 and Layer 3 traffic flows

Antenna Patterns:

A5-14 dBi Antenna Polar Plot



A5-14 dBi Elevation Polar Plot
