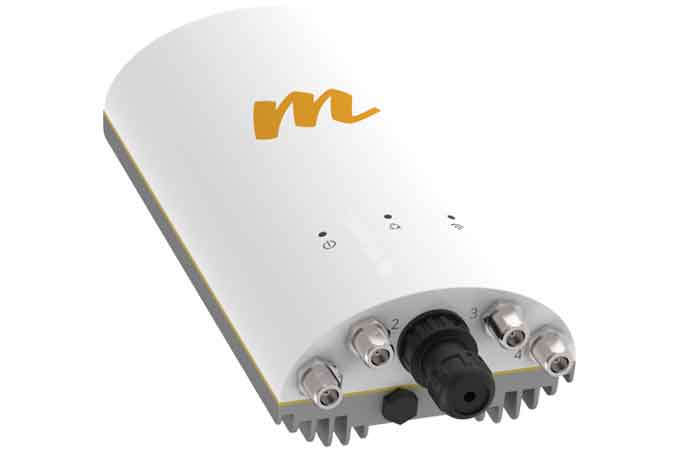

Mimosa A5c-EF
POINT-To-POINT , Point-to-Multi-Point
Super Sector
A5c Point-to-Multipoint Access Point
4.9–6.4 GHz
Super for Sectors
With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network.
With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse,
the connectorized Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network. The
A5c is well suited for long-range pole and tower multipoint applications, access point collocation (GPS Sync) and
Municipal and Rural Licensed Public Safety multipoint (4.9 GHz).
APPLICATION
Municipal and Rural Licensed Public Safety multipoint (4.9 GHz)
Access Point Collocation (GPS Sync)
Long range pole and tower multipoint
Increased Capacity at Each Site
With integrated, high-precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole
Ultra-High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible..
Network Scalability Perfected
Every deployed device is collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide. Connected to the Mimosa Cloud, deployment of the A5c is incredibly simple with network spectrum use and performance optimized across all of your deployed devices.
Fiber Speeds
With client speeds capable of 500+ Mbps and access point capacity up to 1.0 Gbps (IP), the A5c delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to-the-premises
Add Subscribers with Ease
Install, aim and go! We’ve eliminated manual installation and pre-provisioning complexity, so you can focus on adding subscribers quickly.
FIBER SPEED ACCESS AT A FRACTION OF THE COST
With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.
MICROPOP PERFECTED
The Mimosa N5-360 antenna is designed to pair exclusively with the Mimosa A5c access point, and incorporates quad-panel 180 degree overlapping vertical and horizontal antenna polarizations. The innovative antenna design boosts throughput by providing balanced dual-stream coverage over 360 degrees of azimuth, exploiting beamforming gain, and extends the range of the MicroPoP deployments up to 60% compared with Mimosa's A5 integrated solution. Responding to customer demand for extended frequency range, the N5-360 operates from 4.9 GHz to 6.4 GHz without compromising performance.
ADD SUBSCRIBERS WITH EASE
Auto-Provisioning together with the Mimosa Install App, now dramatically reduces subscriber installation time, automates device provisioning and allows seamless device integration into an ISP network.
NETWORK SCALABILITY
Unique integrated high precision GPS Sync technology in each Mimosa A5c allows every deployed device to be collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide, and together with the Mimosa Cloud is incredibly simple to deploy and optimize network spectrum use and performance across all your deployed devices.
INCREASED CAPACITY AT EACH SITE
INCREASED CAPACITY AT EACH SITE With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing deployed Mimosa A5 and B5 site and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices need to be installed "back-to-back" on the same tower or pole.
ULTRA CAPACITY TDMA
Time Division Multiplexed Access (TDMA) techniques have proven to provide significant improvements when scaling the number of clients, versus Carrier Sensing approaches used in the Wi-Fi technologies. When further optimized by dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction, and allocate upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
MASSIVE SECTOR CAPACITY
A5c is the first outdoor 4x4:4 solution leveraging advanced antenna beamforming and Multi-User MIMO technology. With 4 integrated collaborative antennas, the A5c creates separate "beamforms" to target each client uniquely. Meanwhile a second unique beamform can target a second client simultaneously, getting twice the performance out of the channel.
EASY SETUP
2.4 GHz management radio for local configuration and management from your smartphone. ‡
CUSTOM ENGINEERED
The unique compact X4 (4 antenna single A5c) and X8 (8 antenna dual A5c) are our suggested from KP Performance are engineered specifically for Mimosa's MIMO technology.
ULTRA RUGGED
Carrier grade IP67 design allows the A5c to withstand the harshest of environmental conditions.
A5c Specifications
| Performance | |
| Max Throughput | Up to 1.0 Gbps IP (1.7 Gbps PHY) |
| Client Capacity | 100 Clients (WiFi Interop); 44 Clients (SRS |
| Wireless Protocols | Wi-Fi Interop Mimosa GPS Sync (TDMA) |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256QAM |
| Bandwidth* | 20/40/80 MHz channels Tunable in 5 MHz increments for GPS Sync Tunable to standard WiFi Channels for WiFi Interop |
| Frequency Range | GPS Sync: 4900-6400*** MHz WiFi Interop: 5170-5835 MHz Restricted by country of operation (*new* US/FCC 5600-5650 support) |
| Max Output Power | 30 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 25 W |
| System Power Method | 802.3at compliant |
| System Lightning & ESD Protection | 6 kV |
| PoE Power Supply | Passive PoE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection |
| Physical | |
| Dimensions | Height: 300 mm (11.81") Width: 151 mm (12.40") Depth: 85 mm (3.35") |
| Weight | 1.75 kg (3.86 lbs) |
| Enclosure Characteristics | Outdoor UV-stabilized engineered polymer with integrated mounting panel |
| Mounting | Dual pole strap mount and slip on mount for comparable antennas |
| Connector Type | Female Type N (x4) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14500') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000BASE-T |
| Synchronization | GPS + GLONASS allows for network-wide sync and interference avoidance |
| Collocation | 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse |
| Network Processing | Advanced AP control for capacity and subscriber management |
| Access Control Lists | Permit, Deny, and Remark Layer 2 and Layer 3 traffic flows |
| Traffic Shaping | Per CPE UL/DL commit and maximum rate shaping |
| Management Services | Mimosa Cloud monitoring and management; SNMPv2 & Syslog legacy monitoring; HTTPS, HTML 5-based Web UI (2.4 GHz WiFi management module no longer available as of December 2020) |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | WPA2 + Mimosa 802.1x RADIUS Management VLAN support |
| QoS | Supports 4 pre-configured QoS levels |
| GPS Location | GNSS-1 (GPS + GLONASS) |
| VLANs | Per subscriber VLAN; Q-in-Q, triple tagging; Management VLAN |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
* 4.9 GHz uses 20 MHz channel widths
*** A5/A5c extended frequency, above 6.2 GHz, requires P/N 100-000xx-01
