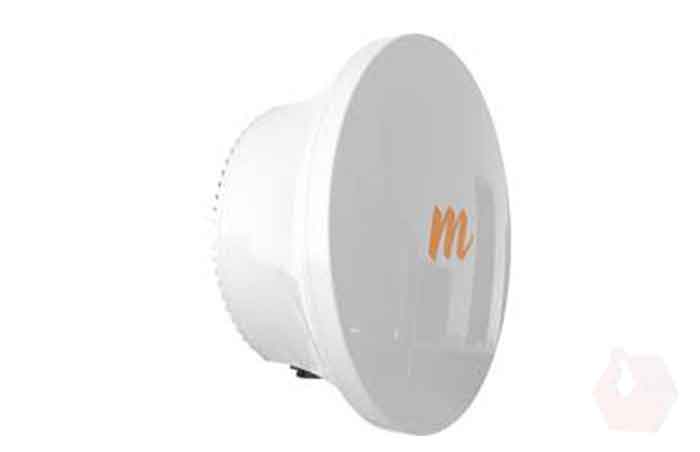

Mimosa B24

The Mimosa B24 delivers nearly a Gigabit of low latency IP traffic in a single direction. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.

Product Features

  • Lightweight, Low Power

  • Gigabit Ethernet: 10/100/1000-BASE-T

  • Fiber Capable: Supports SFP+ interface for fiber operation

  • Ethernet Redundancy: Dual Link fail-over; Does not support simultaneous Ethernet + fiber operation

  • Dual Protocol Operation: 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO

  • streams with individual stream encoding up to 256 QAM

  • Management Services: Mimosa cloud monitoring and management SNMPv2 & Syslog monitoring HTTPS: HTML based web UI

  • 2.4 GHz 802.11b/g/n radio for local management access

  • Security: 128-bit AES PSK with hardware acceleration


Product Introduction

Mimosa B24 breaks the existing barrier of price, size, performance, and power efficiency in the less crowded unlicensed 24 GHz band. By dynamically adjusting bandwidth based on upstream and downstream demand, the B24 efficiently delivers the most usable bandwidth possible with 1 ms low latency, to meet modern internet traffic needs. The B24 is revolutionizing the industry, satisfying the needs of customers in multiple applications and verticals.




Product Features

  • Lightweight, Low Power

  • Gigabit Ethernet: 10/100/1000-BASE-T

  • Fiber Capable: Supports SFP+ interface for fiber operation

  • Ethernet Redundancy: Dual Link fail-over; Does not support simultaneous Ethernet + fiber operation

  • Dual Protocol Operation: 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO

  • streams with individual stream encoding up to 256 QAM

  • Management Services: Mimosa cloud monitoring and management SNMPv2 & Syslog monitoring HTTPS: HTML based web UI

  • 2.4 GHz 802.11b/g/n radio for local management access

  • Security: 128-bit AES PSK with hardware acceleration

  • QoS: Supports 4 pre-configured QoS levels

  • GPS Location: GNSS-1 (GPS + GLONASS)

  • Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio

More Features:



Price Performance Leader

Delivering nearly a Gigabit of low latency IP traffic in a single direction, the Mimosa B24 is the industry’s price performance leader in unlicensed 24 GHz backhaul. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.

Gigabit on Demand

To meet modern internet traffic needs where nearly 90% of the peak evening traffic demand can be in the download direction, the B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed either upstream or downstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized.


Unparalleled Reliability

Don’t be distance-limited by higher frequency microwave technology. Use the B24 to avoid the congested 5 GHz spectrum and deliver superior reliability, even with rain, at practical distances up to 3 km (2 mi).


Specifications

 Max Throughput
Up to 1.5 Gbps Ip aggregate UL/DL
Max PHY rate
1.7 Gbps PHY
Low Latency
<1 ms
Supported MAC
TDMA, TDMA-FD
MIMO and Modulation
4x4:4 MIMO OFDM up to 256 QAM
Bandwidth
Single or dual channel; 20/40/80 MHz channel width
Channel Spacing
Single channel allows 5 MHz channel spacing; Dual channel allows separate, no-overlapping 5 MHz spacing increments
Frequency Range
24.05 - 24.25 GHz worldwide support; Operating range 24.07 - 24.23 GHz
EIRP
~20 dBm (CE) ~33 dBm (FCC/IC) ~ 37 dBm (other regions)
Min Output Power
-20dBm
Power Increment Level
1dB
Sensitivity (MCSO)
84 dBm @ 80 MHz
87 dBm @ 40 MHz
90 dBm @ 20 MHz
Gain
33 dBi
Beam-width (3dB)
3.0deg
Elevation Adjust
+-2.5deg azimuth mechanical adjust
+-15deg elevation mechanical adjust
Front to Back Ratio
>30 dB
Cross-Polar Isolation
>20dB
Polarization
Dual-linear (slant 45deg)
Max Power Consumption
19.5 W
System Power Method
48V DC 802.3at compliant
System Lighting & ESD Protection
6 kV
PoE Power Supply
Passive PoE compliant, 50V 1.2A power over ethernet (included)
Approvals
FCC 15.249, IC RSS210, ETSI EN 300-440 V2.1.1 CE
RoHS Compliance
Yes; WEEE
Safety
EC/EN/ 60950-1

Physical

Dimensions
(10.24 x 10.24 x 5.3") without bracket; (10.24 x 10.24 x 9.9") with bracket
Weight
2.76 kg (6lbs) including mount
Enclosure Characteristics
Outdoor UV stabilized plastic,Powder-coated, aluminum mounting panel
Wind survivability
200km/h (125 mph)
Wind Loading
12.52 kg @ 160km/h (27.61 lbs @ 100 mph)
Mounting
Precision lightweight aiming pole mount with +-15deg elevation and +-2.5deg horizontal adjustment screws
Network Interfaces
Gigabit Ethernet (RJ45) and gigabit fiber (SFP) cage); Operation modes: Hot standby
Environmental
Outdoor Ingress Protection Rating
IP67
Operating Temperature
-40degC to +55degC (-40deg F to 131deg F)
Operating Humidity
5 to 100% condensing
Operating Altitude
4,420m (14500') max
Shock & Vibration
ETS 300-019-2-4 class 4M5

Product Includes
(1) B24 Radio
(1) Passive PoE 50V 1.2A
(1) Pole Mount
Horizontal Adjustment Screws
