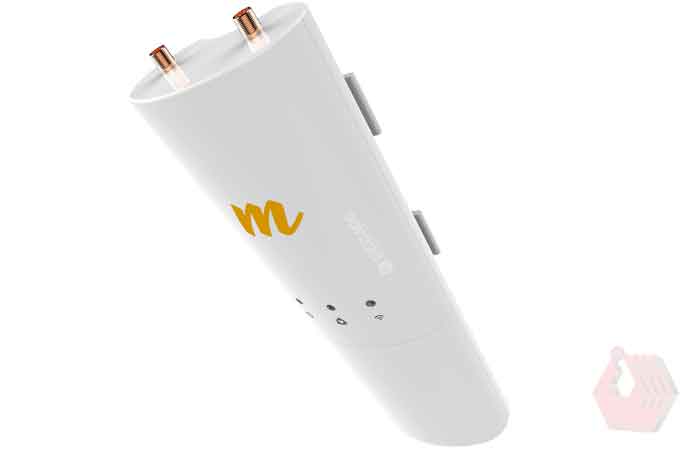

Mimosa C5c

C5c Radio Only - 4.6-6.4 GHz, 27dBm, 802.11ac for PTP and PTMP, nonnecrotized. - POE NOT INCLUDED
  • 2 SMA-Reverse Female Connectors
  • Gigabit Ethernet network interface.
  • Ideal for PTP or Client links in PTMP
  • • Operation mode: PTP Backhaul between C5c with C5c or PTMP client mode of an A5c or A514.

    • MIMO and Modulation: 2x2: 2 MIMO OFDM up to 256 QAM.

    • Maximum transmission power: 27 dBm.

    • Bandwidth management in DL / UL: 50/50, 75/25, 25/75% and automatic due to traffic sense demand.

    • Maximum performance: up to 500 Mbps of aggregate speed in DL / UL.

    • For outdoors: IP55.

    • Temperature range: -40 to 55 ° C (-40 to 131 ° F).

    • Maximum power consumption: 12.9 W ideal for solar systems.

    • Power supply: 24 - 56 Vdc, via POE-48V passive PoE injector (included).

    • Network interface: Gigabit Ethernet.

    • Security: WPA2 + Mimosa 802.1x.

    • Frequency: PTP 4.9 - 6.4 GHz and PTMP 4.9 - 6.2 GHz.

    • Connectors: 2 x SMA Reverse Female for external antenna (not included).

Application

Long-range point-to-point (PTP) backhaul

Rural point-to-multipoint (PTMP) GigaPoP

Suburban MicroPoP when foliage exists

INDUSTRY-LEADING PRICE PERFORMANCE FOR FIXED WIRELESS MARKETS

5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.

C5C used at 6500 altitude with -20 degree c temperature with out any problem.

Flexible Antenna Options

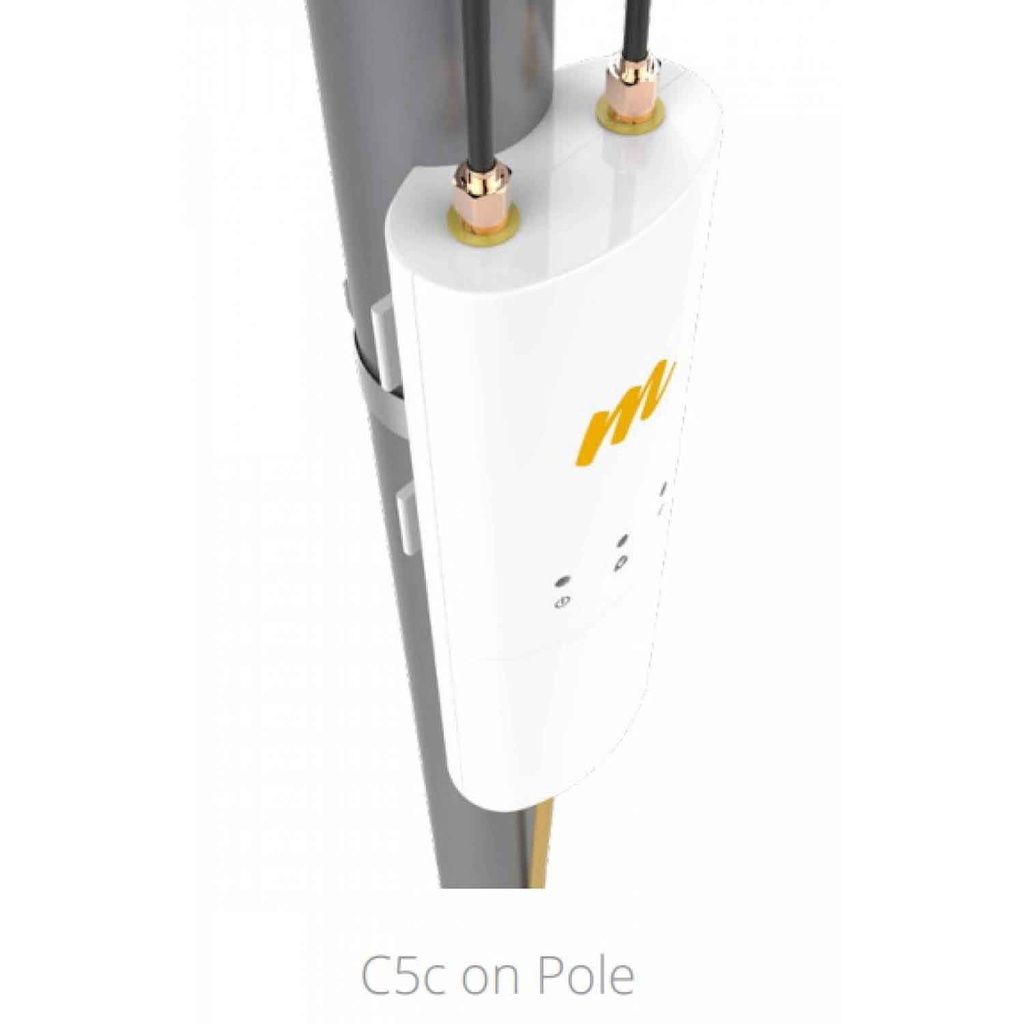

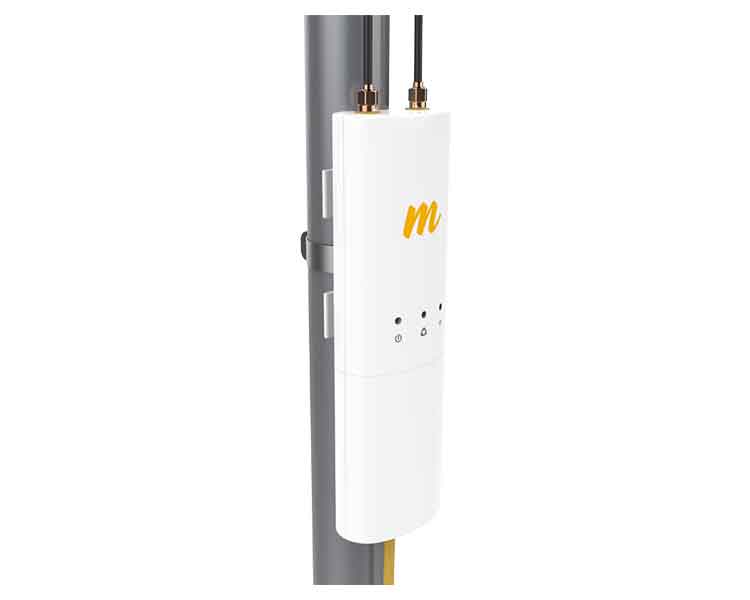

Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5c has dual RP-SMA connectors for easy cabled antenna connectivity. It can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems

Multi-User MIMO

A key component to scaling networks efficiently is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum “spatially” via unique antenna beamforming. Each client device shares spatial geographic information with its associated Mimosa A5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

TDMA GPS Sync Client

The C5c offers client-side support for the Mimosa A5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

PTP Backhaul Links

The C5c provides extreme price/ performance for PTP backhaul links in a small form factor. Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands. Where regulations allow, long distances are enabled with high system power and flexible antenna options.

SRS Client

The C5c offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

At The Top Up the Mountain Carrier

Mimosa C5c was successfully installed to connect Amadablam Base Camp (4800 meters) from Pyramid Height (5050 meters). The link delivers internet service to trekkers, climate change researchers, Lodge owners, villagers and Climbing Expedition troops.

Contact Us for More Information




ADD SUBSCRIBERS WITH EASE

Auto-Provisioning together with the Mimosa Install App, now dramatically reduces subscriber installation time, automates device provisioning and allows seamless device integration into an ISP network.

FLEXIBLE ANTENNA OPTIONS

Connect to virtually any dual polarization antenna to custom-engineer longer distance client links. The C5c supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.


SPECTRUM REUSE SYNCHRONIZATION (SRS) CLIENT

In SRS mode, all uplink and downlink transmissions are scheduled by the Access Point (A5/A5c), which greatly improves medium access protocol (MAC) efficiency, allows interference coordination, and reduces jitter. In contrast, in WiFi-Interop mode, clients need to contend with each other to access the channel, which leads to reduced MAC efficiency, higher interference levels, and higher jitter.

Performance
Max ThroughputPTP/PTMP: 700 Mbps IP (866 Mbps PHY)
Wireless ProtocolsWiFi Interop
Mimosa SRS
ModesPTMP Client
PTP Backhaul
Radio
MIMO & Modulation2x2:2 MIMO OFDM up to 256 QAM
Bandwidth*20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels for WiFi Interop
Frequency RangePTMP: 4900-6400 MHz***
PTP: 4900-6400 MHz
Restricted by country of operation
*new* US/FCC 5600-5650 MHz support
FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power27 dBm
Sensitivity ( MCS 0 )-87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption9.2 W
System Power MethodPassive PoE (24-56 VDC)
PoE Power SupplyPassive POE compliant, 48-56 V Power over Ethernet supply (Not Included)
Physical
DimensionsDepth 44 mm (1.73")
Width 65 mm (2.56")
Height 188.4 mm (7.42")
Weight295 grams (10.4 oz)
MountingSingle pole strap
Connector TypeRP-SMA (x2)
Environmental
Outdoor Ingress Protection RatingIP55
Operating Temperature-40°C to +55°C (-40°F to 131°F)
Operating Humidity5 to 100% condensing
Operating Altitude4420 m (14501') maximum
Shock & VibrationETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet10/100/1000-BASE-T
Management ServicesMimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum ManagementActive scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
SecurityWPA2 + Mimosa 802.1x Client**
QoSSupports 4 pre-configured QoS levels
Regulatory + Compliance
ApprovalsFCC Part 15.407 and Part 90Y, IC RSS210,
CE, ETSI 301 893/302 502
Other National Regulations
RoHS ComplianceYes
SafetyUL/EC/EN/ 60950-1 + CSA-22.2


* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)

** Enabled in future software release

*** Extended frequency, above 6.2 GHz, requires use of A5/A5c access point with P/N 100-000xx-01

‡ U.S. Pat. No. US 9,001,689 and patents pending.
