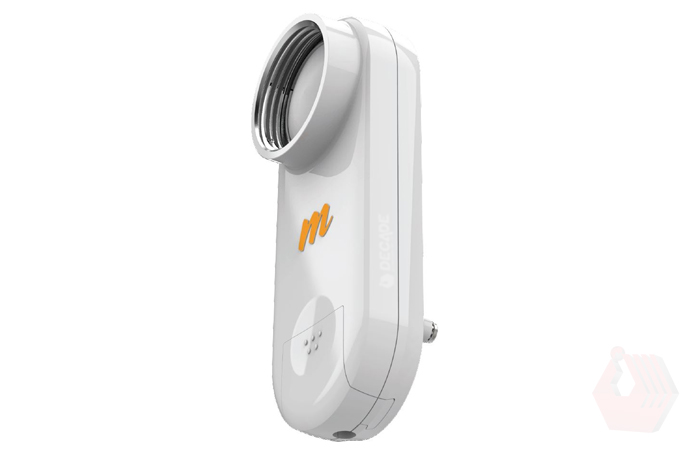

Mimosa C5x
POINT-To-POINT , Point-to-Multi-Point
KEY FETURES
• Four Twist-On, Flexible Antenna Options
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
The Industry’s Most Versatile, Modular Radio
CLIENT/PTP BACKHAUL
Mimosa’s integrated C5x radio and modular N5-X antennas provide the ultimate flexibility for PTP and PTMP extended frequency operation.
The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments..
THE BASICS
700Mbps
Max PTMP/PTP (IP) Throughput
8–25dBi
Gain
4.9–6.4GHz
Extended Frequency
PRODUCT
Integrated Radio with Modular Antenna Options.
The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
N5-X12
Horn
12 dBi29 dB F/B27 dB F/S
N5-X16
Horn
16 dBi50 dB F/B43 dB F/S
N5-X20
Cassegrain Antenna
20 dBi35 dB F/B 37 dB F/S
N5-X25
Cassegrain Antenna
25 dBi 40dB F/B>45 dB F/S
Application
Broadband Service Provider
Public Safety Networks
Enterprise & Campus Connectivity
Multipoint Distribution for Security
Smart Cities & WiFi
VERSATILE
Reliable, Rugged, and Flexible
The B5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance from each of the N5-X antennas. With an IP67 rating and extended 4.9–6.4 GHz frequency, you can take it almost anywhere.
FLEXIBLE
Incredible RF Performance
Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
WIDEBAND
Extended Frequency
To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.
DESIGN
Ultra Rugged
The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.
SPECIFICATIONS
C5x
Max Throughput
700 Mbps (IP) PTP or PTMP
Weight
0.37 kg (0.82 lbs)
Gain
8 dBi (native)
12–25 dBi (with antennas)
Build Material
Die-cast aluminum
Frequency
4900–6400 MHz
Power Consumption
12.9 W max
IP Rating
IP55
Max Out Power
27 dBm
N5-X25
Gain
25 dBi
Weight
0.98 kg (2.15 lbs)
Front-to-Back Ratio
40 dB
Front-to-Side Ratio
> 45 dB
Diameter
429 mm
Depth
116 mm
N5-X20
Gain
20 dBi
Weight
0.77 kg (1.7 lbs)
Front-to-Back Ratio
35 dB
Front-to-Side Ratio
37 dB
Diameter
270 mm
Depth
83 mm
N5-X16
Gain
16 dBi
Weight
0.61 kg (1.35 lbs)
Front-to-Back Ratio
50 dB
Front-to-Side Ratio
43 dB
Diameter
160 mm
Depth
116 mm
N5-X12
Gain
12 dBi
Weight
0.16 kg (0.35 lbs)
Front-to-Back Ratio
29 dB
Front-to-Side Ratio
27 dB
Diameter
76 mm
Depth
67 mm
What's In The Box
One C5x
Two Hose Clamps
Installation and User Guide
*PoE sold separately
One C5x
Two Hose Clamps
Installation and User Guide
*PoE sold separately
