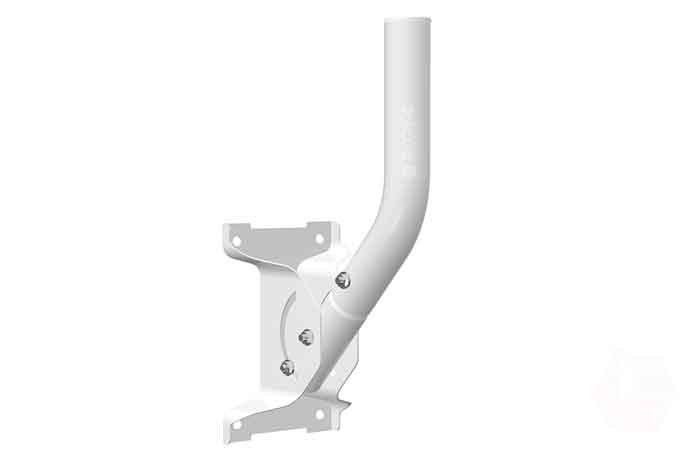

Mimosa J-Mount

The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.



 With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.


Product Description

The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.





Product Specifications

  • Weight: 0.96 kg (33.8 oz)

  • Mounting Base: 191 mm (7.52") x 120 mm (4.72")

  • Pole Length: 355 mm (14")

  • Pole Outside Diameter: 38 mm (1.5")

  • Mounting Options: Surface mount with four screw hole points

  • Assembly: Pre-assembled with a white powder coated finish. Includes four (4) 6.35 mm (0.25") lag bolts. Pipe/hose clamps not included

  • Part Number: 100-00043
