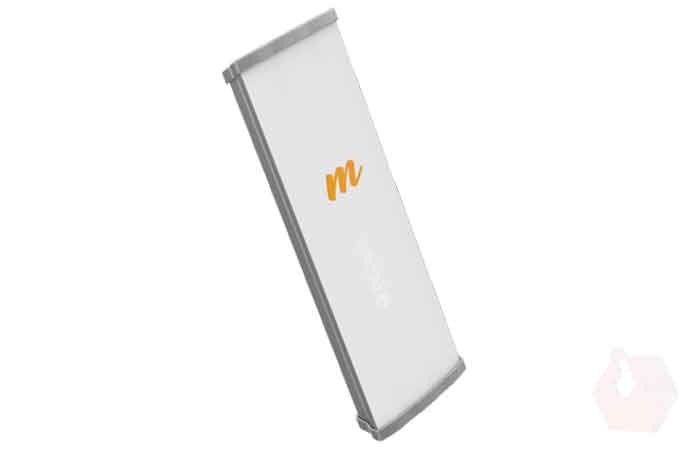

Mimosa N5-45X4

4.9-6.4 GHz 45 Deg Sector Antenna, 22 dBi Beamforming gain, 4 Port , includes LMR 240 Type N to Type N cables (4) and mounting brackets

Mimosa N5-45x4 4.9 - 6.4GHz 4-Port N-Type Female Dual-Slant Polarization 45 degree (19dBi + 3dBi from beamforming) Sector Antenna


Introduction

The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications.


Basics


19 or 22dBi

Gain (2-port or 4-port


43dB

Front-to-Back Ratio

4.9-6.4GHz

Wideband Support



Disruptive Sector Antenna

All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.


Application Areas


High Speed Internet Access



Public Safety Networks


Fixed 5G Wireless Deployments


UHD Security Camera Connectivity

DESIGNED

No Sidelobes

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.






ENGINEERED

Industry’s Highest Front-to-Back Ratio

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.



TECHNOLOGY

Beamformed High Gain

The N5-45x4, paired exclusively with Mimosa’s 4x4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.



ARCHITECTURE

Optimized Ground Coverage


High Capacity 360º Coverage

Achieving the longest range and highest client count of all Mimosa PTMP solutions, eight A5c devices plus eight N5-45x4 antennas enable massive scale, frequency re-use and 4 Gpbs of capacity.

Cost-Effective 360º Coverage

Providing long-range tower or pole solutions for less dense coverage areas, four A5c devices plus eight N5-45x2 antennas enable cost-effective deployments with frequency re-use and 2 Gbps of capacity.

Cost-Effective 90º Sector

Achieving the longest range and highest client count of all Mimosa PTMP solutions, eight A5c devices plus eight N5-45x4 antennas enable massive scale, frequency re-use and 4 Gpbs of capacity.


COMPATIBILITY

Supports Third-Party Access Points

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.


Specifications

Gain
22 dBi
Azimuth Beamwidth
3 dB: 42º
4 dB: 45º
Elevation Beamwidth
3 dB: 9º

Electrical Downtilt

Front-to-Back Ratio
43 dB
Cross-Polar Isolation
> 30 dB
RF Connectors
4 N-Type female
Weight
4.08 kg (9.0 lbs)


What's In The Box

  • N5-45x2

  • Two LMR-240 Cables with Weatherized Boots

  • Pivot Bracket

  • Sliding Bracket

  • Warranty and Compliance Sheet
