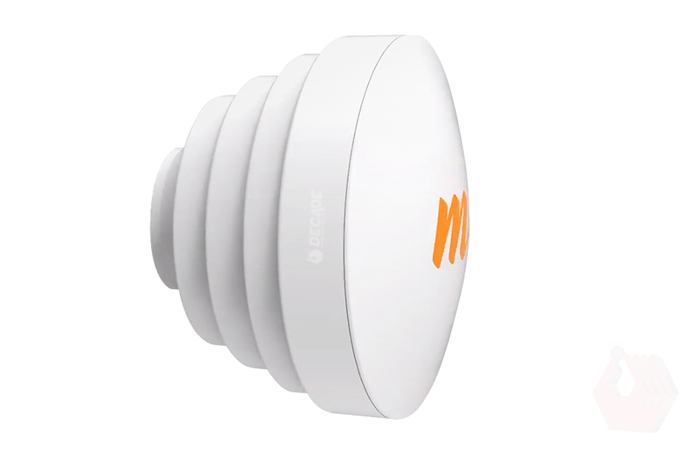

Mimosa N5-X16, 16 dBi gain

4.9-6.4 GHz Modular Twist-on Antenna, 150mm Horn for C5x only, 16 dBi gain

Polarization: Dual-slant 45º, Beamwidth, Symmetric (3 dB): 22º, Front-to-Back Ratio (min): 50 dB, Front-to-Side Ratio (min): 43 dB

 Mimosa N5-X16 twist-on

The Mimosa C5x is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra rugged solution provides extended frequency operation from 4.9–6.4GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased.



c

Product Features

  • Gigabit Ethernet: 10/100/1000-Base-T

  • Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI

  • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use

  • Security: WPA2 PSK and Enterprise 802.1x, Radius provisioning, COA, DM (from A5); 128-bit AES with hardware acceleration

  • VLANs: Per subscriber, VLAN, Q-in-Q, triple tagging, management VLAN

  • QoS: Supports 4 pre-configured QoS levels

Specification


Gain: 16 dBi
Polarization: Dual-slant 45º
Beamwidth Symmetric (3dB): 22º
Front-to-Back Ratio (min): 50dB
Front-to-Side Ratio (min): 43dB
Weight: 0.61 k    g (1.35 lbs)
Dimensions: Diameter: 160 mm (6.29”) Depth: 116 mm (4.57”)
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 5.13 kg @ 160 km/h (11.30 lbs @ 100 mph)


Applications:

  • Broadband service providers

  • Public safety and first responders

  • Enterprise and campus building interconnecting

  • Multipoint distribution for WiFi, video security and Smart Cities

Additional information

WEIGHT
0.61 kg
DIMENSIONS
16 × 11.6 cm


Specification


Gain

16 dBi

Weight

0.61 kg (1.35 lbs)

Front-to-Back Ratio

50 dB

Front-to-Side Ratio

43 dB

Diameter

160 mm

Depth

116 mm

What's In The Box

One unit N5-X16 Horn
