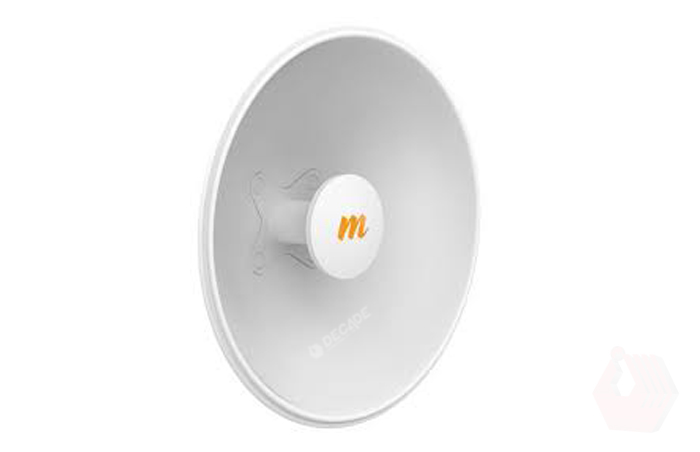

Mimosa N5-X20

4.9-6.4 GHz Modular Twist-on Antenna, 250mm Dish for C5x only, 20 dBi gain - 45degree Beamwidth 12degree Dish

Product Features
• Twist-On, Flexible Antenna
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI

Mimosa N5-X20

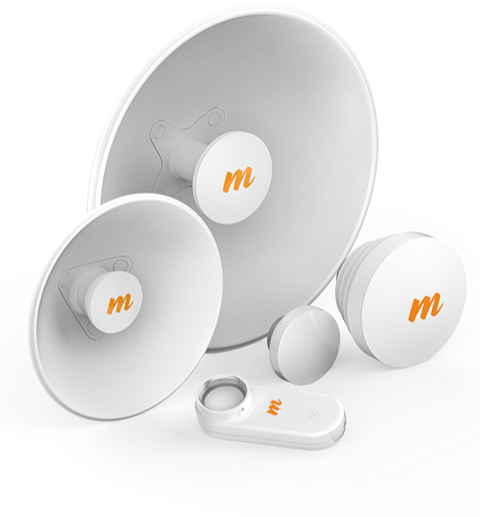

Mimosa N5-X20  Dish is the industry’s most versatile, modular, radio solution with five gain  20  dBi. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased.

Product Features

• Twist-On, Flexible Antenna
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI




Product Specifications

Product: N5-X20
• Gain: 20dBi
• Polarization: Dual-Slant 45º
• Beamwidth, Symmetric (3dB): 12º
• Front-to-Back (min): 35 dB
• Front-to-Side Ratio: 37 dB
• Weight: 0.77 kg (1.70 lbs)
• Dimensions: Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
• Mount: Mimosa N5-X twist-on
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 14.55 @160 km/h (32.07 lbs @ 100 mph)


Specification


Gain

20 dBi

Weight

0.77 kg (1.7 lbs)

Front-to-Back Ratio

35 dB

Front-to-Side Ratio

37 dB

Diameter

270 mm

Depth

83 mm

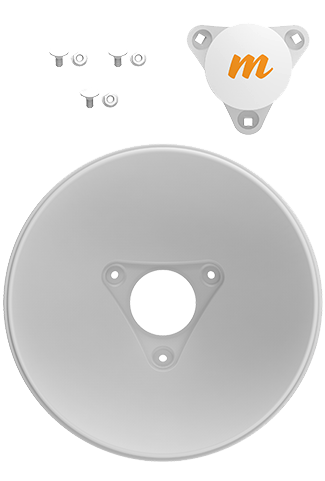

What's In The Box

Sold in two or eight packs

One N5-X20 Dish

One Cassegrain Reflector

Three Screws with Bolts
