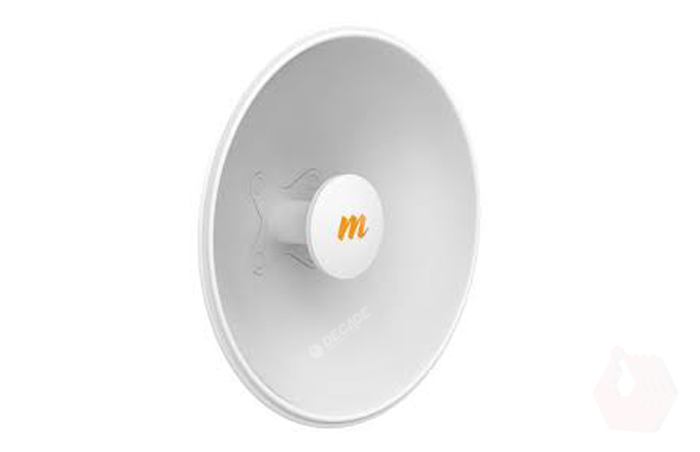

Mimosa N5-X25 25dBi Antenna

Mimosa N5-X25 25 dBi antenna with extended frequency ( 4.9-6.4GHz ) operation Dual-Slant 45degree Beam width 8degree Dish
• Twist-On, Flexible Antenna
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
• Gigabit Ethernet: 10/100/1000-Base-T

The Industry’s Most Versatile, Modular Antenna

N5-X antennas provide the ultimate flexibility for PTP and PTMP extended frequency operation., 4.9–6.2 GHz

Mimosa N5-X25  is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100 Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased. 2-Pack

Product Features

Twist-On, Flexible Antenna
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9–6.4 GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI

Product Specifications

• Product: N5-X25
• Gain: 25dBi
• Polarization: Dual-Slant: 45º
• Beamwidth, Symmetric (3 dB): 8º
• Front-to-Back Ratio (min): 40dB
• Front-to-Side Ratio (min): >45dB
• Weight: 0.98 kg (2.15 lbs)
• Dimensions: Diameter: 429 mm (16.89”) Depth: 116 mm (4.57”)
• Mount: Mimosa N5-X twist-on
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 36.26 kg @ 160 km/h (79.95 lbs @ 100 mph)

Integrated Radio with Modular Antenna Options

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.






Specification


Gain

25 dBi

Weight

0.98 kg (2.15 lbs)

Front-to-Back Ratio

40 dB

Front-to-Side Ratio

> 45 dB

Diameter

429 mm

Depth

116 mm

What's In The Box

Sold in two or eight packs

One N5-X25 Dish

One Cassegrain Reflector

Four Screws with Bolts
